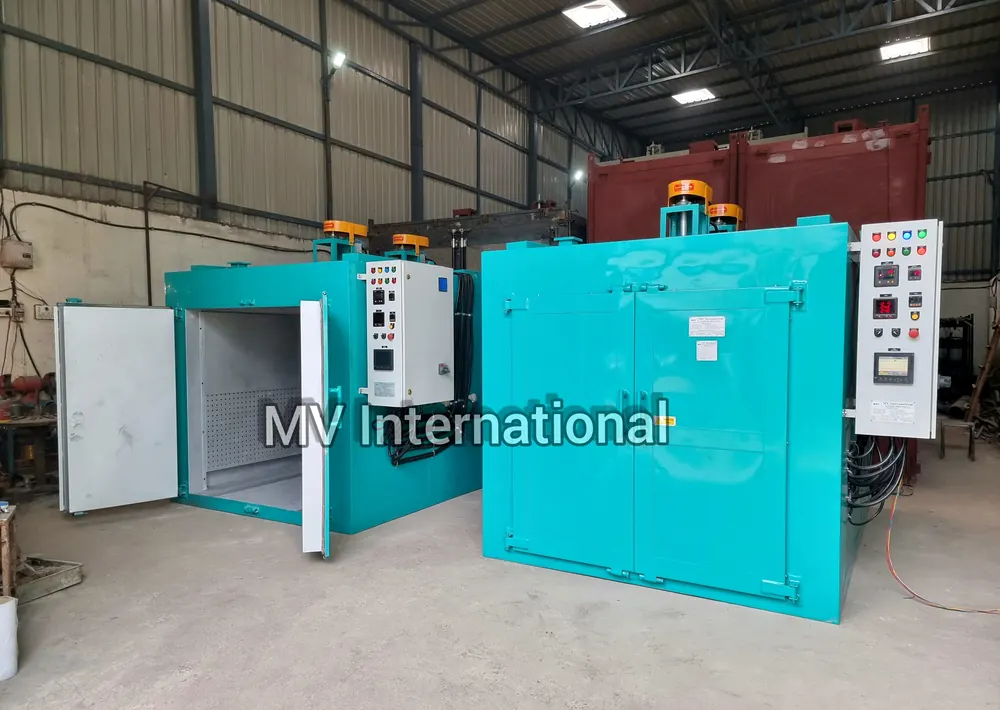

Xylan Coating Oven Manufacturer, Supplier & Exporter
A Xylan coating oven cures Xylan® and similar fluoropolymer dry-film lubricant coatings on fasteners, valves, oilfield equipment and OEM components. These coatings give low friction, corrosion protection and non-stick properties, but only when they are fully cured at the specified temperature.
MV International Xylan coating ovens are built for cure temperatures typically between 200°C and 400°C. They have uniform air flow, fume exhaust and robust loading arrangements for heavy bolting and pipe components.
Key Features of Our Xylan Coating Oven
- Cure temperatures up to 450°C with uniform air flow
- Vertical down-flow or horizontal air patterns
- Load capacity up to 2,000 kg on trolleys or racks
- Fume extraction system
- Programmable flash-off and cure cycle
- Built for 50 Hz or 60 Hz supply
Xylan Coating Oven Applications
- Stud bolts and nuts for oil & gas
- Valve components and ball valves
- Fasteners for marine and offshore use
- Pump and compressor parts
- Springs, clips and hardware
- Cookware and food-processing parts
How the Xylan Coating Oven Works
Coated parts are flashed off at low temperature to remove solvent and then raised to the cure temperature, where they soak for the specified time. Air flow keeps heavy and light parts within the cure window, while fumes are exhausted.
Xylan Coating Oven Technical Specifications
| Size of the working chamber | As per client requirement. |
|---|---|
| Material of construction | Mild Steel, Stainless Steel 304 / 316 or any. |
| Temperature Range | Ambient to 150°C / 250°C / 400°C / 500°C. |
| Air circulation | Vertical, Horizontal or Combination. High Volume and high Velocity Airflow provides twice the air changes compared to ordinary Industrial Ovens. |
| Timer | Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds |
| Paint | Enamel Paint / Epoxy Coating / Powder Coated. |
| Power supply | 230 Volts Single Phase 50Hz / 60Hz 415 Volts 3 Phase 50Hz / 60Hz |
| Heating Elements | Low wattage Incoloy sheathed heating elements / SS Tubular |
| Insulation | Ceramic Wool / Mineral Wool |
| Door Gasket | Fibreglass Rope (High Temp) / Silicone Gasket. |
| Heavy Duty Shelves / Trays | Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven. |
| Exhaust Manual or Automatic | Automatic forced exhaust system with fresh air inlet. Manually adjustable damper with fresh air inlet. |
| Heating Media | Electric / Gas / Diesel / Steam / Thermic OIL etc. |
Optional Features
| Temperature Control | PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy. The programming of PID can vary from 4 to 50 programmes. |
|---|---|
| Temperature Recorder | Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder. |

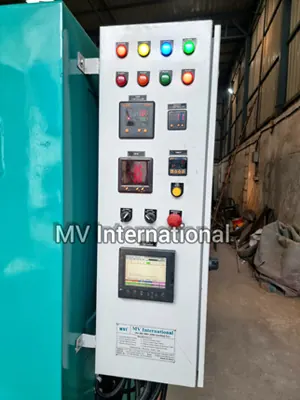

| PLC With HMI | PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI. |
| SCADA System | High quality integration and controlling system from one point can be done with SCADA. |
| Door | A. Door interlocking system will switch off the blower and the heating system if the oven doors are open B. Doors on both ends C. Vertical lift door |
| Fumes Outlet | Forced exhaust blower |
| Windows and lights | A. Viewing window B. Interior lights and Access ports for calibration C. Oven on switch- Illuminated D. Heat on switch- Illuminated |
| Timer and Alarm | A. 24/7 timer B. Audible/visual alarm indicators |
Xylan Coating Oven Manufacturer, Supplier & Exporter
Xylan Coating Oven Manufacturer in India
MV International is an ISO 9001:2015 certified xylan coating oven manufacturer with more than 35 years of experience in industrial heating. Fabrication, insulation, electrical panel building and testing are done in-house at Bahadurgarh, Haryana, which lets us control quality and delivery time. Each xylan coating oven is built to your load, process temperature (up to 450°C) and floor space rather than picked from a catalogue.
Xylan Coating Oven Supplier
Looking for a reliable xylan coating oven supplier? We have supplied ovens to fastener coaters, oil & gas suppliers and valve manufacturers and to OEMs and job shops in every major industrial state of India. You get one point of contact for design, manufacturing, delivery, installation and service, with heaters, blowers and controllers available from stock.
Xylan Coating Oven Exporter
MV International is also an established xylan coating oven exporter. We ship to the Middle East, Africa, South and South-East Asia, Europe and the Americas, including United States, Bangladesh, Sri Lanka, Kenya and South Africa. Export ovens are built for the local supply voltage and frequency (50 Hz or 60 Hz), packed in seaworthy wooden crates and sent with complete documentation.
Why Buy from MV International?
- In-house design and manufacturing since 1989, ISO 9001:2015 certified
- Custom chamber sizes, temperatures up to 500°C and electric, gas, diesel or steam heating
- Uniform air flow with high-volume blowers and PID/PLC temperature control
- Every oven is trial-run and tested before dispatch
- Installation, training, spares and after-sales service across India and abroad
Xylan Coating Oven FAQs
What is the cure temperature for Xylan coatings?
Different Xylan grades cure between about 200°C and 400°C. Always check the product data sheet. Our ovens are built to cover the required range.
Can the oven handle heavy stud bolts?
Yes. We design trolleys and racks for loads up to around 2 tonnes.
Do you also make PTFE coating ovens?
Yes. See our PTFE coating Oven and Teflon coating Oven.
What is the price of a Xylan Coating Oven?
The price of a xylan coating oven depends on chamber size, maximum temperature, heating media (electric, gas, diesel or steam), material of construction and the control system. Share your load details, process temperature and cycle time, and MV International will send a detailed quotation, usually within 24 hours.
Can you supply the Xylan Coating Oven to buyers abroad?
Yes. Along with supplying all over India, we export the xylan coating oven to the Middle East, Africa, Asia, Europe and the Americas. Ovens are built for your local power supply and shipped with complete documentation and commissioning support.
Need a xylan coating oven? Send your part size, process details and production rate to sales@industrialoven.com or call +91 97182 90000. Our engineers will suggest the right model and send a quotation.
