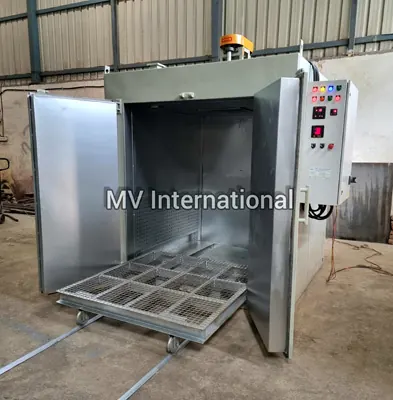

Electric Oven for HT / LT Motors - Manufacturer, Supplier & Exporter
An electric oven for HT and LT motors heats, dries and bakes high-tension and low-tension motors and generators during winding, rewinding and overhaul. These machines need careful, uniform heating so that their insulation is dried and cured without damage.
MV International motor ovens are engineered for fast installation, long service life and easy maintenance. User-friendly control panels and energy-efficient heating save power on every cycle, and the ovens are built large enough for heavy HT stators and rotors.
Key Features of Our Electric Oven for HT LT Motors
- Sized for heavy HT and LT motor stators and rotors
- Trolley, floor or crane top-loading
- Uniform hot-air circulation with exhaust
- User-friendly digital control panel
- Energy-efficient insulation and heater design
- Long service life with low maintenance
Electric Oven for HT LT Motors Applications
- HT motor stator drying and varnish baking
- LT motor rewinding workshops
- Generator and alternator drying
- Power plant and steel plant maintenance
- Railway traction motor service
- Motor OEM production
How the Electric Oven for HT LT Motors Works
The motor component is loaded on a trolley or lowered by crane. Hot air circulates through the windings, first drying out moisture and then curing the varnish at its specified temperature. Insulation resistance is checked to confirm dryness.
Electric Oven for HT LT Motors Technical Specifications
| Size of the working chamber | As per client requirement. |
|---|---|
| Material of construction | Mild Steel, Stainless Steel 304 / 316 or any. |
| Temperature Range | Ambient to 150°C / 250°C / 400°C / 500°C. |
| Air circulation | Vertical, Horizontal or Combination. High Volume and high Velocity Airflow provides twice the air changes compared to ordinary Industrial Ovens. |
| Timer | Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds |
| Paint | Enamel Paint / Epoxy Coating / Powder Coated. |
| Power supply | 230 Volts Single Phase 50Hz / 60Hz 415 Volts 3 Phase 50Hz / 60Hz |
| Heating Elements | Low wattage Incoloy sheathed heating elements / SS Tubular |
| Insulation | Ceramic Wool / Mineral Wool |
| Door Gasket | Fibreglass Rope (High Temp) / Silicone Gasket. |
| Heavy Duty Shelves / Trays | Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven. |
| Exhaust Manual or Automatic | Automatic forced exhaust system with fresh air inlet. Manually adjustable damper with fresh air inlet. |
| Heating Media | Electric / Gas / Diesel / Steam / Thermic OIL etc. |
Optional Features
| Temperature Control | PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy. The programming of PID can vary from 4 to 50 programmes. |
|---|---|
| Temperature Recorder | Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder. |
| PLC With HMI | PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI. |
| SCADA System | High quality integration and controlling system from one point can be done with SCADA. |
| Door | A. Door interlocking system will switch off the blower and the heating system if the oven doors are open B. Doors on both ends C. Vertical lift door |
| Fumes Outlet | Forced exhaust blower |
| Windows and lights | A. Viewing window B. Interior lights and Access ports for calibration C. Oven on switch- Illuminated D. Heat on switch- Illuminated |
| Timer and Alarm | A. 24/7 timer B. Audible/visual alarm indicators |
Electric Oven for HT LT Motors Manufacturer, Supplier & Exporter
Electric Oven for HT LT Motors Manufacturer in India
MV International is an ISO 9001:2015 certified electric oven for HT LT motors manufacturer with more than 35 years of experience in industrial heating. Fabrication, insulation, electrical panel building and testing are done in-house at Bahadurgarh, Haryana, which lets us control quality and delivery time. Each electric oven for HT LT motors is built to your load, process temperature (up to 500°C) and floor space rather than picked from a catalogue.
Electric Oven for HT LT Motors Supplier
Looking for a reliable electric oven for HT LT motors supplier? We have supplied ovens to motor repair workshops, power utilities, steel plants and motor manufacturers and to OEMs and job shops in every major industrial state of India. You get one point of contact for design, manufacturing, delivery, installation and service, with heaters, blowers and controllers available from stock.
Electric Oven for HT LT Motors Exporter
MV International is also an established electric oven for HT LT motors exporter. We ship to the Middle East, Africa, South and South-East Asia, Europe and the Americas, including Kenya, South Africa, UAE, Qatar and United States. Export ovens are built for the local supply voltage and frequency (50 Hz or 60 Hz), packed in seaworthy wooden crates and sent with complete documentation.
Why Buy from MV International?
- In-house design and manufacturing since 1989, ISO 9001:2015 certified
- Custom chamber sizes, temperatures up to 500°C and electric, gas, diesel or steam heating
- Uniform air flow with high-volume blowers and PID/PLC temperature control
- Every oven is trial-run and tested before dispatch
- Installation, training, spares and after-sales service across India and abroad
Electric Oven for HT LT Motors FAQs
Can the oven handle large HT motors?
Yes. Ovens are sized for your largest stator and rotor, with trolley or top loading for heavy parts.
What temperatures are used?
Drying is usually done at 80-110°C, and varnish baking at 130-160°C, within the insulation class.
Do you offer smaller motor ovens too?
Yes. See our motor heating oven and electric motor drying oven.
What is the price of a Electric Oven for HT LT Motors?
The price of a electric oven for HT LT motors depends on chamber size, maximum temperature, heating media (electric, gas, diesel or steam), material of construction and the control system. Share your load details, process temperature and cycle time, and MV International will send a detailed quotation, usually within 24 hours.
Do you export the Electric Oven for HT LT Motors outside India?
Yes. MV International is an experienced electric oven for HT LT motors exporter. We ship to the UAE, Saudi Arabia, Qatar, Oman, Africa, South-East Asia, Europe and the Americas, with voltage and frequency matched to your country and seaworthy export packing.
Need a electric oven for HT LT motors? Send your part size, process details and production rate to sales@industrialoven.com or call +91 97182 90000. Our engineers will suggest the right model and send a quotation.
