Cabinet Oven Manufacturer, Supplier & Exporter

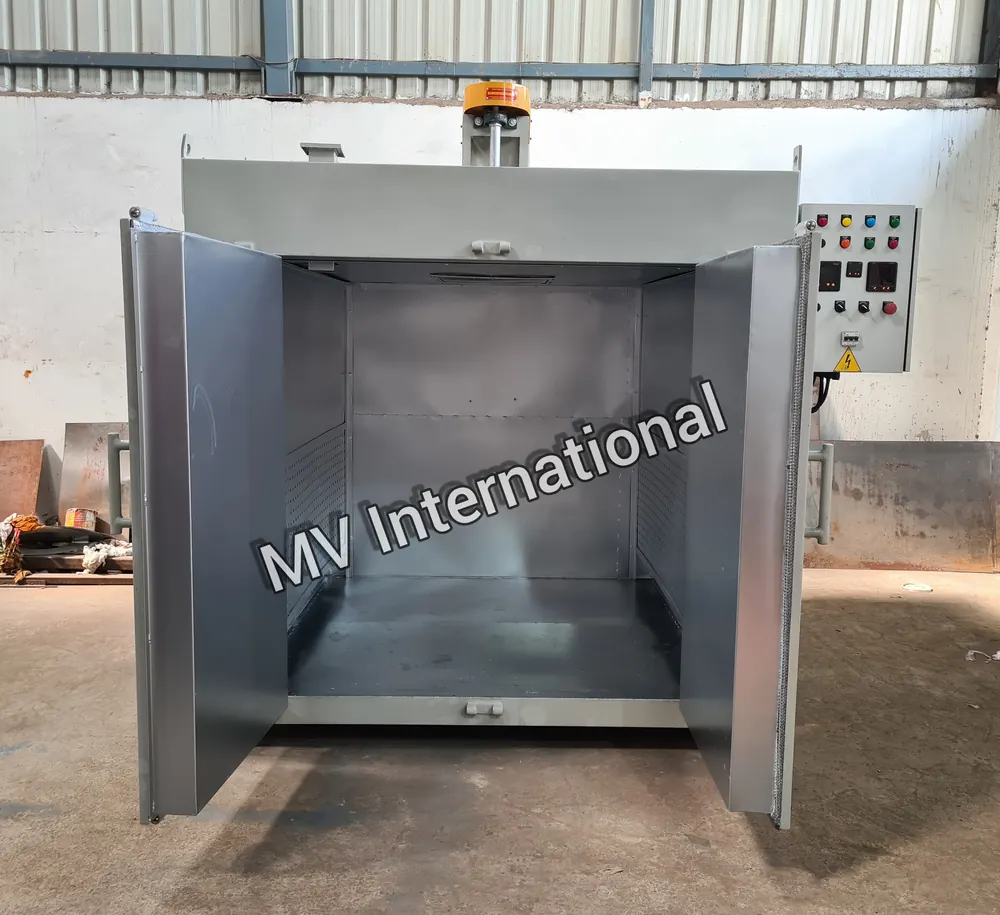

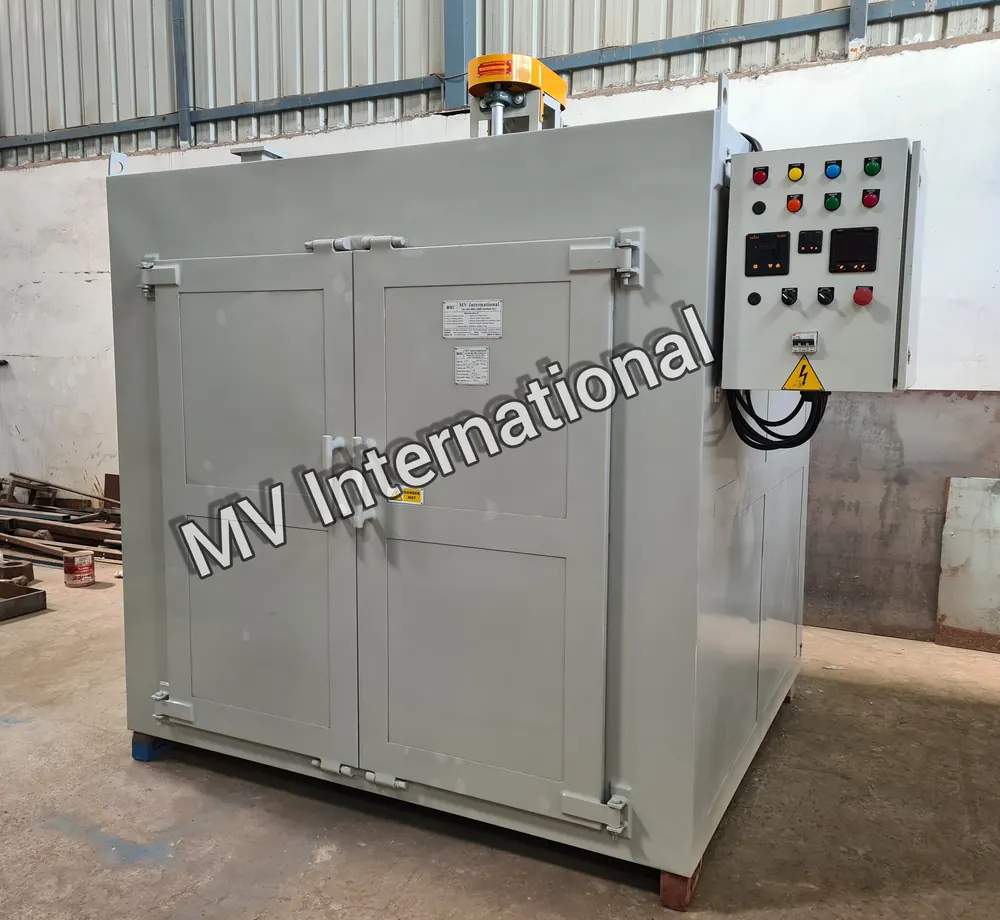

A cabinet oven is a self-contained, front-loading batch oven with shelves or trays, used for drying, curing, preheating and baking of small and medium batches. It takes little floor space, installs quickly and suits job shops, tool rooms, maintenance departments and laboratories.
MV International cabinet ovens have aluminised or SS interiors and forced air circulation, and standard models run up to 250°C or 400°C. Shelf-loaded or reinforced-floor designs are available, and we build to your inside dimensions and door style.
Key Features of Our Cabinet Oven
- Compact, front-loading design with one or two doors
- Adjustable shelves or reinforced floor for heavy parts
- Forced horizontal air circulation for uniform heating
- PID temperature control, batch timer and high-limit safety
- Forced exhaust and fresh-air inlet
- Explosion-relief panel and purge timer for solvent loads (optional)
Cabinet Oven Applications
- Curing small painted and powder-coated parts
- Drying components after washing
- Preheating tools, dies and inserts
- Baking of small motor windings
- Laboratory and QC heat testing
- Curing adhesives and sealants
- Drying chemicals and samples
- Stress relieving small parts
How the Cabinet Oven Works
Heaters and a blower mounted in a side or top plenum circulate hot air horizontally across the shelves. The controller holds the set temperature, the timer ends the batch, and the exhaust removes moisture or fumes.
Cabinet Oven Technical Specifications
| Size of the working chamber | As per client requirement. |
|---|---|
| Material of construction | Mild Steel, Stainless Steel 304 / 316 or any. |
| Temperature Range | Ambient to 150°C / 250°C / 400°C / 500°C. |
| Air circulation | Vertical, Horizontal or Combination. High Volume and high Velocity Airflow provides twice the air changes compared to ordinary Industrial Ovens. |
| Timer | Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds |
| Paint | Enamel Paint / Epoxy Coating / Powder Coated. |
| Power supply | 230 Volts Single Phase 50Hz / 60Hz 415 Volts 3 Phase 50Hz / 60Hz |
| Heating Elements | Low wattage Incoloy sheathed heating elements / SS Tubular |
| Insulation | Ceramic Wool / Mineral Wool |
| Door Gasket | Fibreglass Rope (High Temp) / Silicone Gasket. |
| Heavy Duty Shelves / Trays | Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven. |
| Exhaust Manual or Automatic | Automatic forced exhaust system with fresh air inlet. Manually adjustable damper with fresh air inlet. |
| Heating Media | Electric / Gas / Diesel / Steam / Thermic OIL etc. |
Optional Features
| Temperature Control | PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy. The programming of PID can vary from 4 to 50 programmes. |
|---|---|
| Temperature Recorder | Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder. |
| PLC With HMI | PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI. |
| SCADA System | High quality integration and controlling system from one point can be done with SCADA. |
| Door | A. Door interlocking system will switch off the blower and the heating system if the oven doors are open B. Doors on both ends C. Vertical lift door |
| Fumes Outlet | Forced exhaust blower |
| Windows and lights | A. Viewing window B. Interior lights and Access ports for calibration C. Oven on switch- Illuminated D. Heat on switch- Illuminated |
| Timer and Alarm | A. 24/7 timer B. Audible/visual alarm indicators |
Cabinet Oven Manufacturer, Supplier & Exporter
Cabinet Oven Manufacturer in India
As a cabinet oven manufacturer in India since 1989, MV International designs and builds every unit at our own works in Bahadurgarh, Haryana, close to Delhi NCR. Our engineers size the chamber, heater load and air-flow pattern to your actual load, so the oven reaches 500°C evenly and holds it within a tight band. Every cabinet oven is assembled, wired and trial-run at our plant before dispatch.
Cabinet Oven Supplier
MV International supplies the cabinet oven to tool rooms, job shops, laboratories and small manufacturers all over India. Industrial clusters we serve regularly include Gurugram, Faridabad, Noida, Ludhiana, Ahmedabad, Vadodara, Pune, Chennai, Bengaluru, Hyderabad and Kolkata. With every oven we provide a manual, wiring diagram, spares list and quick service support.
Cabinet Oven Exporter
Overseas buyers source the cabinet oven from us because we combine Indian manufacturing costs with export-quality construction. Regular destinations include Oman, United Kingdom, Nepal, Nigeria and Egypt. We build to your local power supply, quote FOB or CIF, and supply documentation, spares and remote support.
Why Buy from MV International?
- In-house design and manufacturing since 1989, ISO 9001:2015 certified
- Custom chamber sizes, temperatures up to 500°C and electric, gas, diesel or steam heating
- Uniform air flow with high-volume blowers and PID/PLC temperature control
- Every oven is trial-run and tested before dispatch
- Installation, training, spares and after-sales service across India and abroad
Cabinet Oven FAQs
What sizes of cabinet oven are available?
Standard internal sizes start around 600 x 600 x 600 mm, and we build larger cabinet ovens to your dimensions.
What is the difference between a cabinet oven and a walk-in oven?
A cabinet oven is loaded on shelves from the front at bench or floor height. A walk-in oven is large enough for trolleys or people to enter.
Can a cabinet oven be used for solvent-based parts?
Yes, with forced exhaust, purge timer and explosion-relief panel sized for the solvent load.
How much does a Cabinet Oven cost?
A cabinet oven is built to order, so the cost depends on the working size, temperature range, heating method and options such as PLC control or a temperature recorder. Send us your requirement on the enquiry page or call +91-9718290000 for a quick, no-obligation quotation.
Can you supply the Cabinet Oven to buyers abroad?
Yes. Along with supplying all over India, we export the cabinet oven to the Middle East, Africa, Asia, Europe and the Americas. Ovens are built for your local power supply and shipped with complete documentation and commissioning support.
Need a cabinet oven? Send your part size, process details and production rate to sales@industrialoven.com or call +91 97182 90000. Our engineers will suggest the right model and send a quotation.
