Electric Tray Dryer Manufacturer, Supplier & Exporter

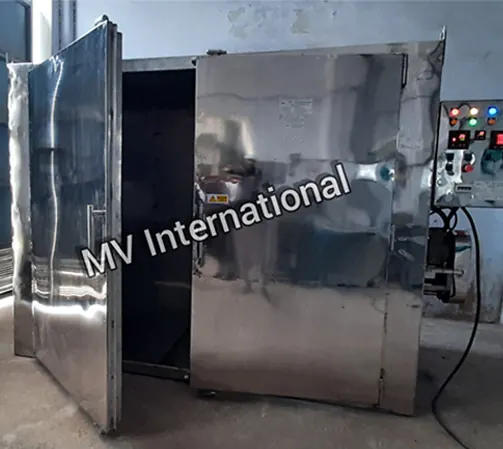

An electric tray dryer is a tray-type drying cabinet heated by electrical elements, used where steam is not available or where very precise temperature is needed. It can be used for drying, heating and ageing in pharmaceutical, chemical and engineering plants.

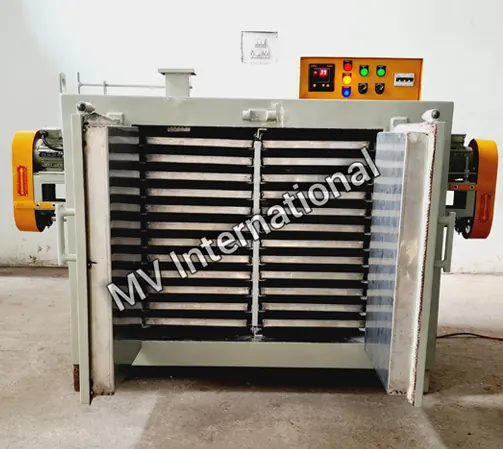

MV International electric tray dryers have a double-walled SS or MS body with insulation in between. U-tube heaters (around 1 kW each) are mounted on the sides for even heating, and the maximum temperature is 100-300°C depending on the model.
Key Features of Our Electric Tray Dryer
- Side-mounted U-tube heaters for even heat distribution
- Double-walled construction with insulation
- SS 304/316 or MS inner chamber
- 6 to 192 tray capacities
- Digital temperature controller and timer
- Optional GMP finish and validation documents
Electric Tray Dryer Applications
- Pharmaceutical granules
- Chemicals and dyes
- Food and herbal products
- Small engineering components
- Electrical insulation drying
- Laboratory drying
How the Electric Tray Dryer Works
Air is heated by the side-mounted U-tube elements and circulated by a fan across the trays. The moist air is partly exhausted, and the controller keeps the temperature at the set value.
Electric Tray Dryer Technical Specifications
| Size of the working chamber | As per client requirement. |
|---|---|
| Material of construction | Mild Steel, Stainless Steel 304 / 316 or any. |
| Temperature Range | Ambient to 150°C / 250°C / 400°C / 500°C. |
| Air circulation | Vertical, Horizontal or Combination. High Volume and high Velocity Airflow provides twice the air changes compared to ordinary Industrial Ovens. |
| Timer | Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds |
| Paint | Enamel Paint / Epoxy Coating / Powder Coated. |
| Power supply | 230 Volts Single Phase 50Hz / 60Hz 415 Volts 3 Phase 50Hz / 60Hz |
| Heating Elements | Low wattage Incoloy sheathed heating elements / SS Tubular |
| Insulation | Ceramic Wool / Mineral Wool |
| Door Gasket | Fibreglass Rope (High Temp) / Silicone Gasket. |
| Heavy Duty Shelves / Trays | Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven. |
| Exhaust Manual or Automatic | Automatic forced exhaust system with fresh air inlet. Manually adjustable damper with fresh air inlet. |
| Heating Media | Electric / Gas / Diesel / Steam / Thermic OIL etc. |
Optional Features
| Temperature Control | PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy. The programming of PID can vary from 4 to 50 programmes. |
|---|---|
| Temperature Recorder | Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder. |
| PLC With HMI | PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI. |
| SCADA System | High quality integration and controlling system from one point can be done with SCADA. |
| Door | A. Door interlocking system will switch off the blower and the heating system if the oven doors are open B. Doors on both ends C. Vertical lift door |
| Fumes Outlet | Forced exhaust blower |
| Windows and lights | A. Viewing window B. Interior lights and Access ports for calibration C. Oven on switch- Illuminated D. Heat on switch- Illuminated |
| Timer and Alarm | A. 24/7 timer B. Audible/visual alarm indicators |
Electric Tray Dryer Manufacturer, Supplier & Exporter
Electric Tray Dryer Manufacturer in India
We manufacture the electric tray dryer at our factory in M.I.E. Bahadurgarh, Haryana, using CNC-cut sheet metal, mineral or ceramic wool insulation and reliable control gear. As an experienced electric tray dryer manufacturer, we run every oven at its working temperature (up to 300°C) before dispatch and share the test results with you.
Electric Tray Dryer Supplier
As a electric tray dryer supplier, we deliver across India, including Delhi NCR, Haryana, Punjab, Uttar Pradesh, Gujarat, Maharashtra, Tamil Nadu, Karnataka, Telangana and West Bengal. Typical buyers are pharma, chemical and engineering companies. We handle site installation and commissioning, operator training, spares and after-sales service.
Electric Tray Dryer Exporter
As a electric tray dryer exporter, we have delivered heating equipment to more than 50 countries, including Sri Lanka, Kenya, South Africa, UAE and Qatar. Each export order includes voltage and frequency matching, CE-style safety interlocks on request, export-worthy packing, and remote or on-site commissioning support.
Why Buy from MV International?
- In-house design and manufacturing since 1989, ISO 9001:2015 certified
- Custom chamber sizes, temperatures up to 500°C and electric, gas, diesel or steam heating
- Uniform air flow with high-volume blowers and PID/PLC temperature control
- Every oven is trial-run and tested before dispatch
- Installation, training, spares and after-sales service across India and abroad
Electric Tray Dryer FAQs
What is the maximum temperature of an electric tray dryer?
Standard models reach 100-300°C, depending on the heater and insulation selected.
How many heaters are used?
The number and rating of U-tube heaters depend on the dryer size. Typically 1 kW elements are spaced along both sides for even heat.
Do you make stainless steel electric tray dryers?
Yes. See our stainless steel tray dryer for GMP applications.
What is the price of a Electric Tray Dryer?
The price of a electric tray dryer depends on chamber size, maximum temperature, heating media (electric, gas, diesel or steam), material of construction and the control system. Share your load details, process temperature and cycle time, and MV International will send a detailed quotation, usually within 24 hours.
Do you export the Electric Tray Dryer outside India?
Yes. MV International is an experienced electric tray dryer exporter. We ship to the UAE, Saudi Arabia, Qatar, Oman, Africa, South-East Asia, Europe and the Americas, with voltage and frequency matched to your country and seaworthy export packing.
Need a electric tray dryer? Send your part size, process details and production rate to sales@industrialoven.com or call +91 97182 90000. Our engineers will suggest the right model and send a quotation.
