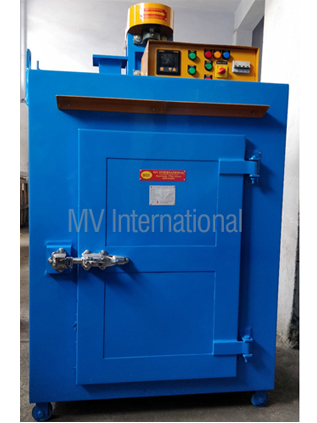

Bench Oven

Bench Oven: An Opportunity to Optimize Space and Utilize Portability


MV International is an industrial oven manufacturer that has earned a name for reliability and durability. We have launched the Bench Ovens under our latest range of curing ovens. These ovens come with a versatile and simplified installation process. You may install a bench oven on a bench, a large table or a stand. You can move our ovens very quickly due to their easy portability. The product has hot air circulating it during operation.

During the process, the oven proves to be very effective in drying, preheating, curing, and other requisites. A plethora of processes is performed by the bench type oven. Applications that necessitate hot air circulation seek assistance from bench ovens. A bench oven is ideal for part dehydration, part processing and also for drying and baking. You may use our bench ovens for heating items like the motor bearings.


Bench Oven: An Opportunity to Optimize Space and Utilize Portability

The temperature control system of the bench oven is its primary feature. It comes with a primary temperature controller, an indicator light, and a switch to pull it off or on. Once the heater starts operating, you’ll get a hint from the indicator light. Regulating the temperature of the oven gets easier with the calibrated controller. Whenever some damage occurs to the automated controller, you may go through our manual reset controller, which we provide separately.



SPECIFICATION :

Size of the working chamber As per client requirement.
Material of construction Mild Steel, Stainless Steel 304 / 316 or any.
Temperature Range Ambient to 1500C / 2500C / 4000C / 5000C.
Air circulation Vertical, Horizontal or Combination.
High Volume and high Velocity Airflow provides twice the air changes compare to ordinary Industrial Ovens.
Timer Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds
Paint Enamel Paint / Epoxy Coating / Powder Coated.
Power supply 230 Volts Single Phase 50Hz / 60Hz
415 Volts 3 Phase 50Hz / 60Hz
Heating Elements Low wattage Incoloy sheathed heating elements / SS Tubular
Insulation Ceramic Wool / Mineral Wool
Door Gasket Fibre Glass Rope (High Temp) / Silicon Gasket.
Heavy Duty Shelves / Trays Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven.
Exhaust Manual or Automatic Automatic forced exhaust system with fresh air inlet.
Manually adjustable damper with fresh air inlet.
Heating Media Electric / Gas / Diesel / Steam / Thermic OIL etc.

OPTIONAL FEATURES :

Temperature Control PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy.
The programming of PID can vary from 4 to 50 programmes.
Temperature Recorder Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder.
PLC With HMI PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI.
SCADA System High quality integration and controlling system from one point can be done with SCADA.
Door A. Door interlocking system will switch off the blower and the heating system if the oven doors are open
B. Doors on both ends
C. Vertical lift door
Fumes Outlet Forced exhaust blower
Windows and lights A. Viewing window
B. Interior lights and Access ports for calibration
C. Oven on switch- Illuminated
D. Heat on switch- Illuminated
Timer and Alarm A. 24/7 timer
B. Audible/visual alarm indicators
