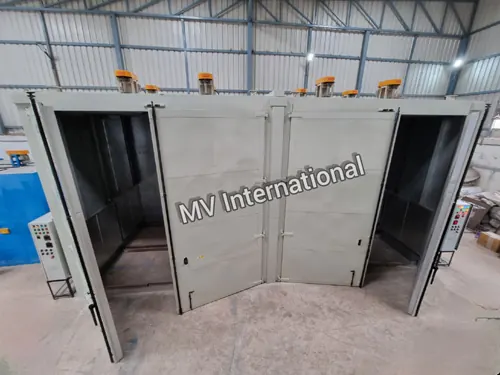

Enamel Paint Baking Oven Manufacturer, Supplier & Exporter
An enamel paint baking oven (stoving oven) bakes stoving enamel paints on metal parts so that the binder cross-links into a hard, glossy and chemical-resistant finish. Baked enamel is used on electrical enclosures, appliances, furniture, automotive parts and machinery.
MV International enamel paint baking ovens provide even heat and controlled solvent exhaust, so the finish is smooth and free from pinholes. Batch and conveyor versions are available.
Key Features of Our Enamel Paint Baking Oven
- Uniform heating for consistent gloss and hardness
- Flash-off stage before baking
- Solvent exhaust with fresh-air make-up
- Filtered air to protect the wet finish
- Batch, walk-in or conveyor designs
- Temperatures up to 250°C
Enamel Paint Baking Oven Applications
- Electrical panels and enclosures
- Steel almirahs and furniture
- Appliance housings
- Automotive and tractor parts
- Machine guards and housings
- Gas cylinders and containers
How the Enamel Paint Baking Oven Works
After spraying, parts are flashed off to release solvent, then baked at the enamel's stoving temperature, typically 120-160°C, for the specified time. Uniform hot air and exhaust ensure a smooth, fully cured finish.
Enamel Paint Baking Oven Technical Specifications
| Size of the working chamber | As per client requirement. |
|---|---|
| Material of construction | Mild Steel, Stainless Steel 304 / 316 or any. |
| Temperature Range | Ambient to 150°C / 250°C / 400°C / 500°C. |
| Air circulation | Vertical, Horizontal or Combination. High Volume and high Velocity Airflow provides twice the air changes compared to ordinary Industrial Ovens. |
| Timer | Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds |
| Paint | Enamel Paint / Epoxy Coating / Powder Coated. |
| Power supply | 230 Volts Single Phase 50Hz / 60Hz 415 Volts 3 Phase 50Hz / 60Hz |
| Heating Elements | Low wattage Incoloy sheathed heating elements / SS Tubular |
| Insulation | Ceramic Wool / Mineral Wool |
| Door Gasket | Fibreglass Rope (High Temp) / Silicone Gasket. |
| Heavy Duty Shelves / Trays | Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven. |
| Exhaust Manual or Automatic | Automatic forced exhaust system with fresh air inlet. Manually adjustable damper with fresh air inlet. |
| Heating Media | Electric / Gas / Diesel / Steam / Thermic OIL etc. |
Optional Features
| Temperature Control | PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy. The programming of PID can vary from 4 to 50 programmes. |
|---|---|
| Temperature Recorder | Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder. |
| PLC With HMI | PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI. |
| SCADA System | High quality integration and controlling system from one point can be done with SCADA. |
| Door | A. Door interlocking system will switch off the blower and the heating system if the oven doors are open B. Doors on both ends C. Vertical lift door |
| Fumes Outlet | Forced exhaust blower |
| Windows and lights | A. Viewing window B. Interior lights and Access ports for calibration C. Oven on switch- Illuminated D. Heat on switch- Illuminated |
| Timer and Alarm | A. 24/7 timer B. Audible/visual alarm indicators |
Enamel Paint Baking Oven Manufacturer, Supplier & Exporter
Enamel Paint Baking Oven Manufacturer in India
MV International is an ISO 9001:2015 certified enamel paint baking oven manufacturer with more than 35 years of experience in industrial heating. Fabrication, insulation, electrical panel building and testing are done in-house at Bahadurgarh, Haryana, which lets us control quality and delivery time. Each enamel paint baking oven is built to your load, process temperature (up to 250°C) and floor space rather than picked from a catalogue.
Enamel Paint Baking Oven Supplier
Looking for a reliable enamel paint baking oven supplier? We have supplied ovens to panel builders, furniture, appliance and automotive manufacturers and to OEMs and job shops in every major industrial state of India. You get one point of contact for design, manufacturing, delivery, installation and service, with heaters, blowers and controllers available from stock.
Enamel Paint Baking Oven Exporter
MV International is also an established enamel paint baking oven exporter. We ship to the Middle East, Africa, South and South-East Asia, Europe and the Americas, including Nepal, Nigeria, Egypt, Indonesia and Saudi Arabia. Export ovens are built for the local supply voltage and frequency (50 Hz or 60 Hz), packed in seaworthy wooden crates and sent with complete documentation.
Why Buy from MV International?
- In-house design and manufacturing since 1989, ISO 9001:2015 certified
- Custom chamber sizes, temperatures up to 500°C and electric, gas, diesel or steam heating
- Uniform air flow with high-volume blowers and PID/PLC temperature control
- Every oven is trial-run and tested before dispatch
- Installation, training, spares and after-sales service across India and abroad
Enamel Paint Baking Oven FAQs
What temperature is used for stoving enamel?
Most stoving enamels bake at 120-160°C for 20-45 minutes. Check the paint data sheet.
Why is flash-off needed?
It lets solvents escape slowly before baking, which prevents pinholes and blisters.
Can the oven also cure powder coating?
Yes, if designed for the higher powder cure temperature. See our powder coating oven.
How much does a Enamel Paint Baking Oven cost?
A enamel paint baking oven is built to order, so the cost depends on the working size, temperature range, heating method and options such as PLC control or a temperature recorder. Send us your requirement on the enquiry page or call +91-9718290000 for a quick, no-obligation quotation.
Do you export the Enamel Paint Baking Oven outside India?
Yes. MV International is an experienced enamel paint baking oven exporter. We ship to the UAE, Saudi Arabia, Qatar, Oman, Africa, South-East Asia, Europe and the Americas, with voltage and frequency matched to your country and seaworthy export packing.
Need a enamel paint baking oven? Send your part size, process details and production rate to sales@industrialoven.com or call +91 97182 90000. Our engineers will suggest the right model and send a quotation.
