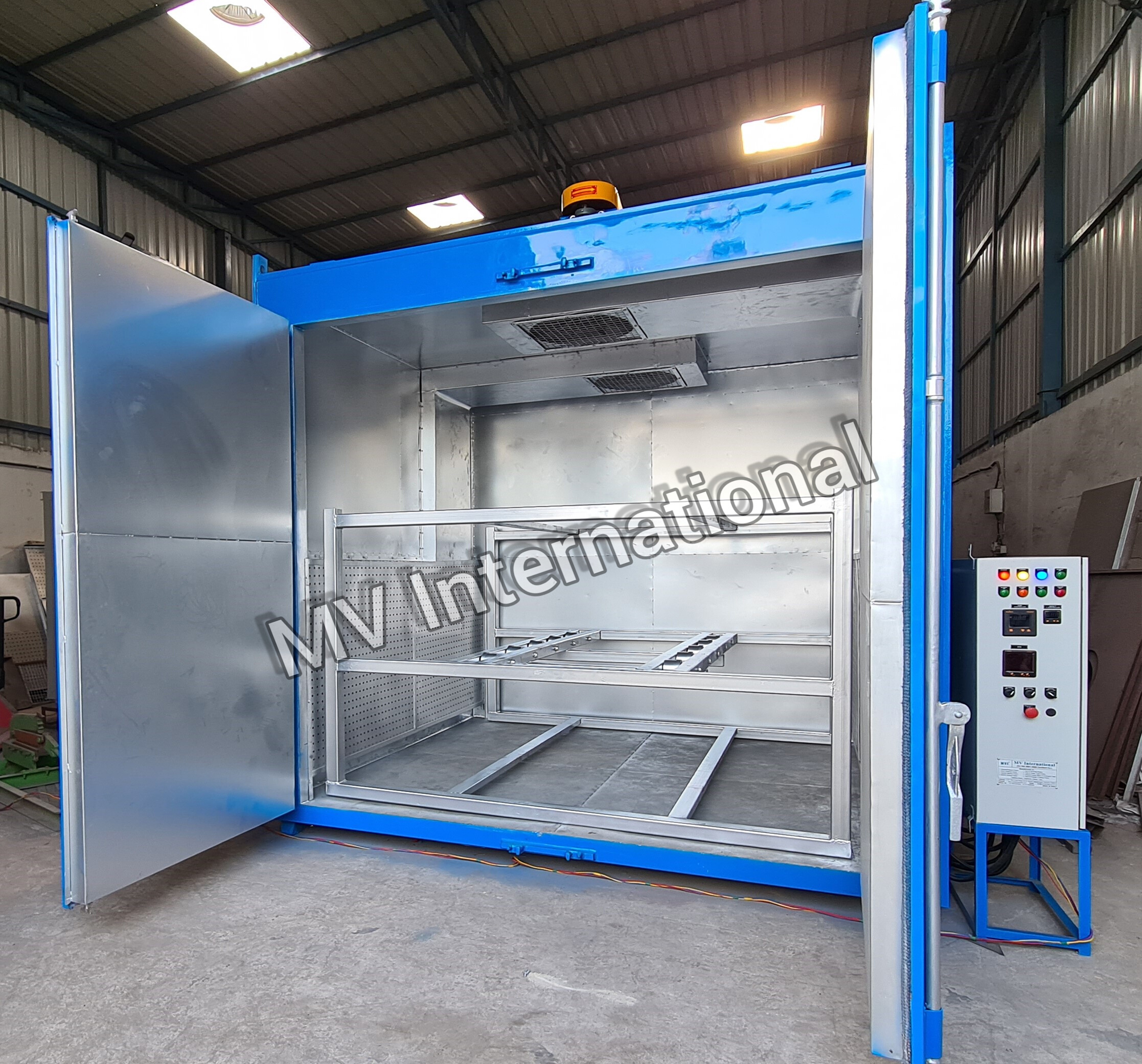

Aluminium Ageing Oven

Aluminum Ageing Oven Symbolizes Durability and Voltage Efficiency


MV International has launched several Aluminum ageing ovens that come with a plethora of designs and are manufactured in 52 standard sizes. These ovens are capable of producing both high performance and average performance depending on the needs of the consumer. The standard rating that you see for the maximum temperature to be borne by the aluminum Ageing Oven is worth 500°F; you may even find up to 1,000°F as the optional rating.

We may try to achieve optimum part outcomes and enable our consumers to match their load configuration by helping them pick the ideal air-flow designs. We have experienced a surge in production rates for the aluminium ageing oven ever since we started maintaining a uniform temperature.

Our heavy-duty construction lets us serve our customers for years. We can help you optimize your floor space by lowering the equipment footprint with the help of our roof-mounted components. We have adapted the right manner for aluminum casts to undergo high-quality hardening with our industry-vetted aluminum ovens. We have the means to treat various parts like the aluminum castings, sheet metal, and extrusions via solutions.

We set aluminum profiles for achieving unique mechanical quality and properties of the best kind. Our Aluminum ageing oven comes with automatic control systems that gain an effective hold over voltage and temperature depending on the needs of the heating components. We need to provide uniform heat to the aluminum profiles inside the oven for a specific period. That’s why we impart uniform strength and quality to our aluminium ageing oven.

There are many chemical industries and their allies wherein our aluminum ageing ovens are much in demand nowadays. We have specialized in the process of producing high-quality Aluminum ageing ovens and we have claimed our niche within these industries. We’re capable of customizing our ovens depending on the specifications set by our customers. Also, we ought to deliver them as per the measurements set by our customer which is why we study the needs of the application. It holds well on any responsible aluminium ageing oven manufacturer

SPECIFICATION :

Size of the working chamber As per client requirement.
Material of construction Mild Steel, Stainless Steel 304 / 316 or any.
Temperature Range Ambient to 1500C / 2500C / 4000C / 5000C.
Air circulation Vertical, Horizontal or Combination.
High Volume and high Velocity Airflow provides twice the air changes compare to ordinary Industrial Ovens.
Timer Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds
Paint Enamel Paint / Epoxy Coating / Powder Coated.
Power supply 230 Volts Single Phase 50Hz / 60Hz
415 Volts 3 Phase 50Hz / 60Hz
Heating Elements Low wattage Incoloy sheathed heating elements / SS Tubular
Insulation Ceramic Wool / Mineral Wool
Door Gasket Fibre Glass Rope (High Temp) / Silicon Gasket.
Heavy Duty Shelves / Trays Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven.
Exhaust Manual or Automatic Automatic forced exhaust system with fresh air inlet.
Manually adjustable damper with fresh air inlet.
Heating Media Electric / Gas / Diesel / Steam / Thermic OIL etc.

OPTIONAL FEATURES :

Temperature Control PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy.
The programming of PID can vary from 4 to 50 programmes.
Temperature Recorder Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder.
PLC With HMI PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI.
SCADA System High quality integration and controlling system from one point can be done with SCADA.
Door A. Door interlocking system will switch off the blower and the heating system if the oven doors are open
B. Doors on both ends
C. Vertical lift door
Fumes Outlet Forced exhaust blower
Windows and lights A. Viewing window
B. Interior lights and Access ports for calibration
C. Oven on switch- Illuminated
D. Heat on switch- Illuminated
Timer and Alarm A. 24/7 timer
B. Audible/visual alarm indicators
