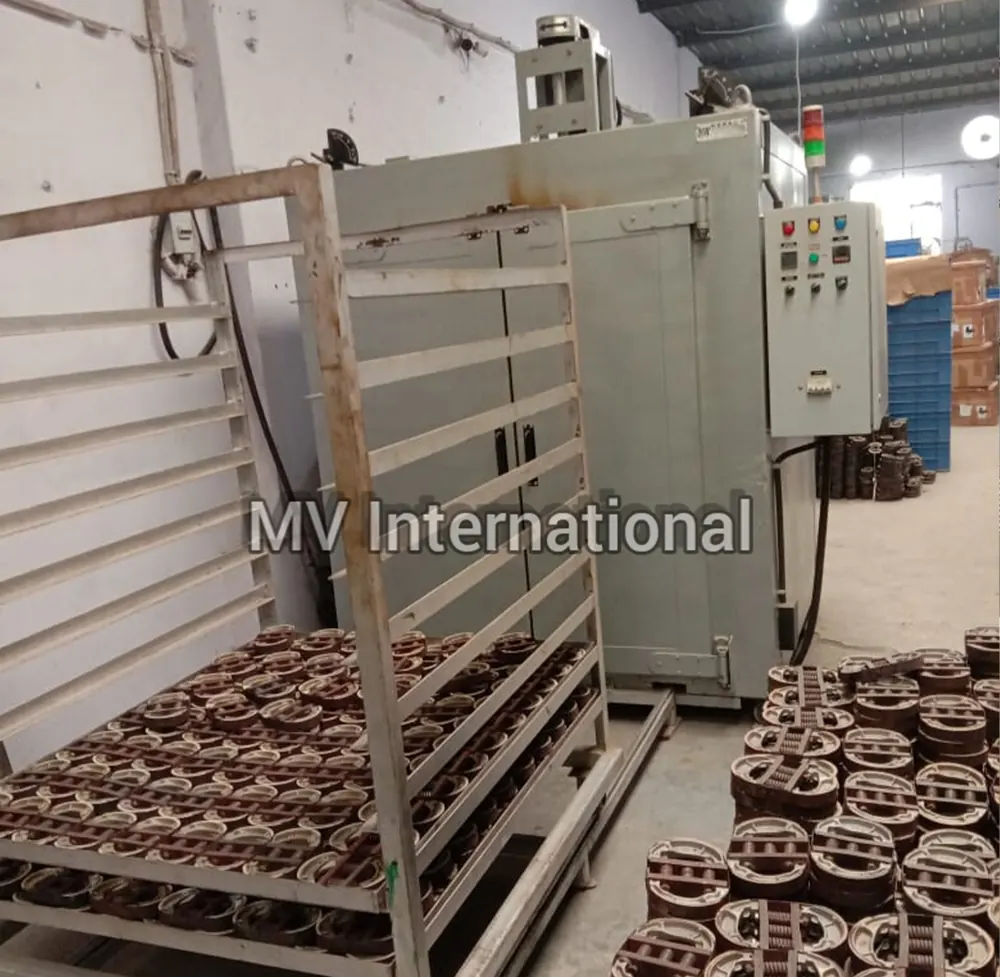

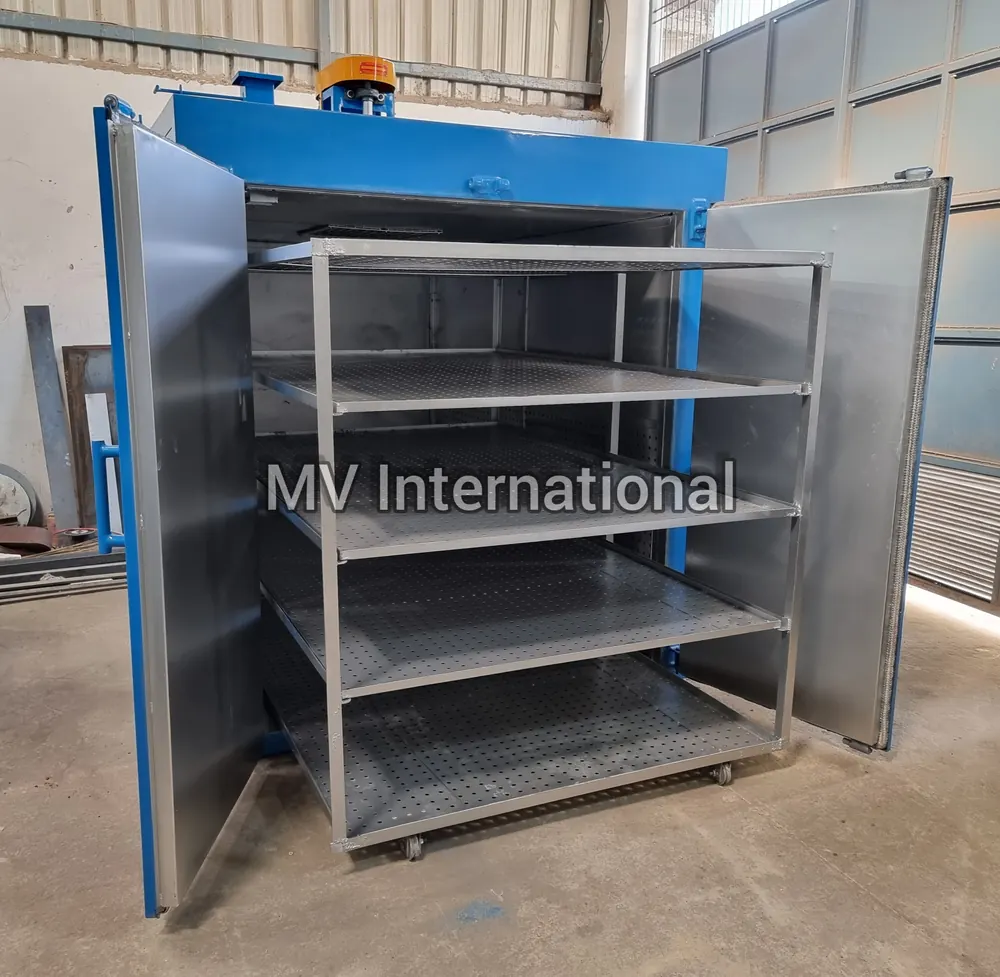

Brake Pad Curing Oven Manufacturer, Supplier & Exporter
A brake pad curing oven post-cures the resin binder in disc brake pads, drum brake linings and other friction materials after hot pressing. Correct curing removes volatiles, completes cross-linking and gives a stable friction coefficient, which reduces fade, noise and glazing in service.
Temperature uniformity is critical. MV International brake pad curing ovens use high-volume air circulation, multi-stage programmable controls and efficient exhaust, so every pad on every rack gets the same cure.
Key Features of Our Brake Pad Curing Oven
- Multi-stage programmable cure profile
- High uniformity across racks and trays
- Exhaust system for phenolic resin fumes
- Batch trolley or continuous designs
- Temperatures up to 300°C
- Data recording for quality traceability
Brake Pad Curing Oven Applications
- Disc brake pads for cars and two-wheelers
- Drum brake linings and shoes
- Commercial vehicle brake blocks
- Railway brake blocks
- Clutch facings and friction discs
- Industrial brake and friction parts
How the Brake Pad Curing Oven Works
Pressed pads are loaded on racks, and the oven ramps through a stepped profile, often holding at several temperatures up to about 200-250°C. This drives off volatiles slowly before the final cure. Exhaust removes resin fumes, and controlled cooling completes the cycle.
Brake Pad Curing Oven Technical Specifications
| Size of the working chamber | As per client requirement. |
|---|---|
| Material of construction | Mild Steel, Stainless Steel 304 / 316 or any. |
| Temperature Range | Ambient to 150°C / 250°C / 400°C / 500°C. |
| Air circulation | Vertical, Horizontal or Combination. High Volume and high Velocity Airflow provides twice the air changes compared to ordinary Industrial Ovens. |
| Timer | Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds |
| Paint | Enamel Paint / Epoxy Coating / Powder Coated. |
| Power supply | 230 Volts Single Phase 50Hz / 60Hz 415 Volts 3 Phase 50Hz / 60Hz |
| Heating Elements | Low wattage Incoloy sheathed heating elements / SS Tubular |
| Insulation | Ceramic Wool / Mineral Wool |
| Door Gasket | Fibreglass Rope (High Temp) / Silicone Gasket. |
| Heavy Duty Shelves / Trays | Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven. |
| Exhaust Manual or Automatic | Automatic forced exhaust system with fresh air inlet. Manually adjustable damper with fresh air inlet. |
| Heating Media | Electric / Gas / Diesel / Steam / Thermic OIL etc. |
Optional Features
| Temperature Control | PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy. The programming of PID can vary from 4 to 50 programmes. |
|---|---|
| Temperature Recorder | Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder. |
| PLC With HMI | PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI. |
| SCADA System | High quality integration and controlling system from one point can be done with SCADA. |
| Door | A. Door interlocking system will switch off the blower and the heating system if the oven doors are open B. Doors on both ends C. Vertical lift door |
| Fumes Outlet | Forced exhaust blower |
| Windows and lights | A. Viewing window B. Interior lights and Access ports for calibration C. Oven on switch- Illuminated D. Heat on switch- Illuminated |
| Timer and Alarm | A. 24/7 timer B. Audible/visual alarm indicators |
Brake Pad Curing Oven Manufacturer, Supplier & Exporter
Brake Pad Curing Oven Manufacturer in India
As a brake pad curing oven manufacturer in India since 1989, MV International designs and builds every unit at our own works in Bahadurgarh, Haryana, close to Delhi NCR. Our engineers size the chamber, heater load and air-flow pattern to your actual load, so the oven reaches 300°C evenly and holds it within a tight band. Every brake pad curing oven is assembled, wired and trial-run at our plant before dispatch.
Brake Pad Curing Oven Supplier
MV International supplies the brake pad curing oven to automotive friction material and brake manufacturers all over India. Industrial clusters we serve regularly include Gurugram, Faridabad, Noida, Ludhiana, Ahmedabad, Vadodara, Pune, Chennai, Bengaluru, Hyderabad and Kolkata. With every oven we provide a manual, wiring diagram, spares list and quick service support.
Brake Pad Curing Oven Exporter
Overseas buyers source the brake pad curing oven from us because we combine Indian manufacturing costs with export-quality construction. Regular destinations include Oman, United Kingdom, Nepal, Nigeria and Egypt. We build to your local power supply, quote FOB or CIF, and supply documentation, spares and remote support.
Why Buy from MV International?
- In-house design and manufacturing since 1989, ISO 9001:2015 certified
- Custom chamber sizes, temperatures up to 500°C and electric, gas, diesel or steam heating
- Uniform air flow with high-volume blowers and PID/PLC temperature control
- Every oven is trial-run and tested before dispatch
- Installation, training, spares and after-sales service across India and abroad
Brake Pad Curing Oven FAQs
Why do brake pads need post-curing?
Post-curing completes the resin reaction and removes volatiles, which gives a stable friction coefficient and reduces fade and noise.
What cure cycle is used for brake pads?
A typical cycle is a stepped ramp to about 200-250°C over several hours. Exact profiles depend on the formulation.
Do you also make brake shoe curing ovens?
Yes. See our brake shoe curing oven.
How much does a Brake Pad Curing Oven cost?
A brake pad curing oven is built to order, so the cost depends on the working size, temperature range, heating method and options such as PLC control or a temperature recorder. Send us your requirement on the enquiry page or call +91-9718290000 for a quick, no-obligation quotation.
Can you supply the Brake Pad Curing Oven to buyers abroad?
Yes. Along with supplying all over India, we export the brake pad curing oven to the Middle East, Africa, Asia, Europe and the Americas. Ovens are built for your local power supply and shipped with complete documentation and commissioning support.
Need a brake pad curing oven? Send your part size, process details and production rate to sales@industrialoven.com or call +91 97182 90000. Our engineers will suggest the right model and send a quotation.
