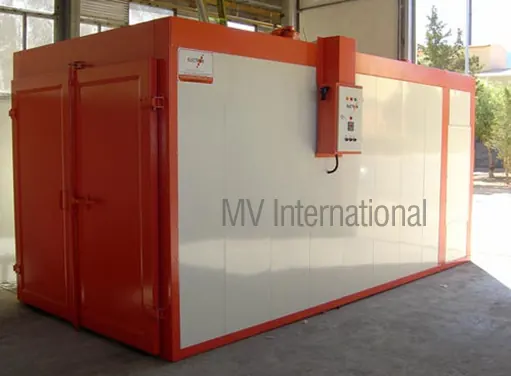

Chamber Oven

Chamber Oven – How It Has Improved with the Advent of Technology


MV International has shot to fame ever since they launched few of the modern amenities like the ovens. We have adopted a few stringent policies for ensuring the satisfaction and safety of our consumers. The Chamber oven is one of the latest inclusions to our wide range of products.

We have taken care of the health risks concerning few of explosive materials while running a heat treatment. We have even noticed the presence of a volatile solvent in some drying materials. They possess a synthetic layer of resin and other explosive agents.

The conventional chambers stand the risk of potential explosions while they perform any drying or heating treatment. The method of air circulation that a chamber oven employs can increase the gas concentration and prove highly flammable. We have adopted an all-exhaust method that prevents explosions by controlling an increase in gas concentration via the temperature chamber.

How effective are the features of the Chamber oven?

A wide range of applications needs the right kind of temperature chambers for drying the product lines, heat treatment and testing in high temperature.

The performance of our chamber oven gets enhanced due to its chamber configuration that developed originally. Although we symbolize fast recovery, minimal heating, and consistent temperature, we still provide a temperature indication controller that’s quite reliable.

SPECIFICATION :

Size of the working chamber As per client requirement.
Material of construction Mild Steel, Stainless Steel 304 / 316 or any.
Temperature Range Ambient to 1500C / 2500C / 4000C / 5000C.
Air circulation Vertical, Horizontal or Combination.
High Volume and high Velocity Airflow provides twice the air changes compare to ordinary Industrial Ovens.
Timer Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds
Paint Enamel Paint / Epoxy Coating / Powder Coated.
Power supply 230 Volts Single Phase 50Hz / 60Hz
415 Volts 3 Phase 50Hz / 60Hz
Heating Elements Low wattage Incoloy sheathed heating elements / SS Tubular
Insulation Ceramic Wool / Mineral Wool
Door Gasket Fibre Glass Rope (High Temp) / Silicon Gasket.
Heavy Duty Shelves / Trays Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven.
Exhaust Manual or Automatic Automatic forced exhaust system with fresh air inlet.
Manually adjustable damper with fresh air inlet.
Heating Media Electric / Gas / Diesel / Steam / Thermic OIL etc.

OPTIONAL FEATURES :

Temperature Control PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy.
The programming of PID can vary from 4 to 50 programmes.
Temperature Recorder Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder.
PLC With HMI PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI.
SCADA System High quality integration and controlling system from one point can be done with SCADA.
Door A. Door interlocking system will switch off the blower and the heating system if the oven doors are open
B. Doors on both ends
C. Vertical lift door
Fumes Outlet Forced exhaust blower
Windows and lights A. Viewing window
B. Interior lights and Access ports for calibration
C. Oven on switch- Illuminated
D. Heat on switch- Illuminated
Timer and Alarm A. 24/7 timer
B. Audible/visual alarm indicators
