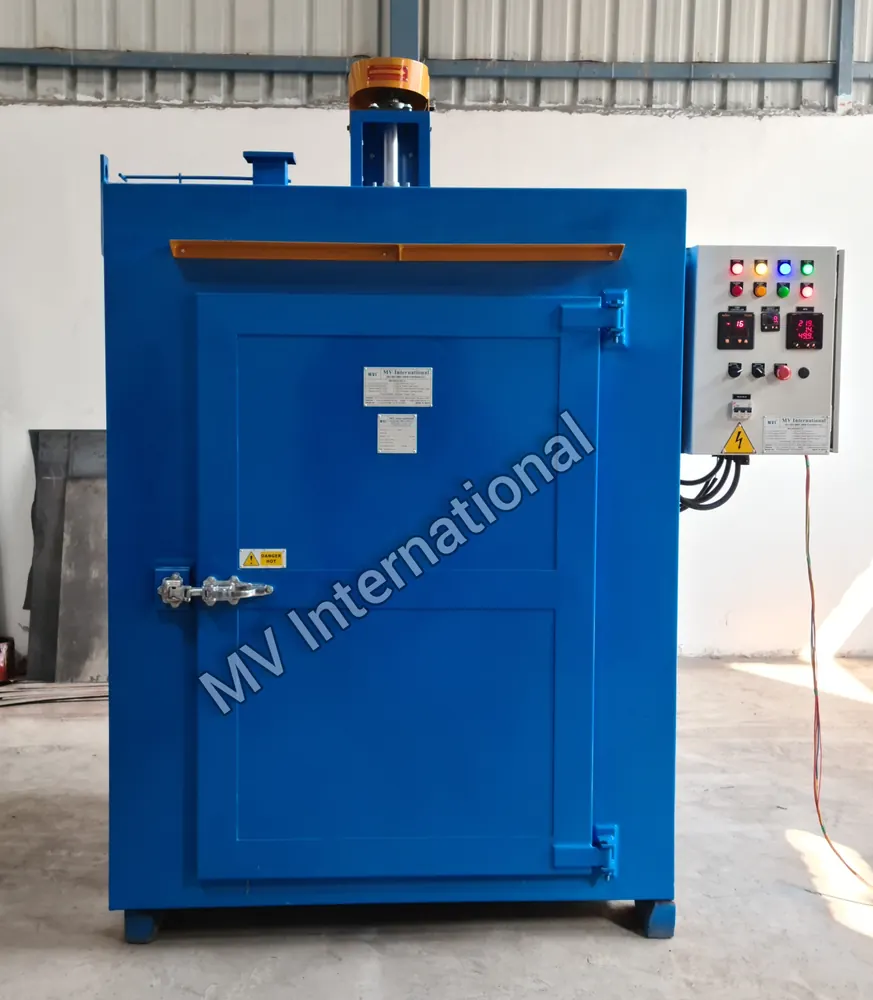

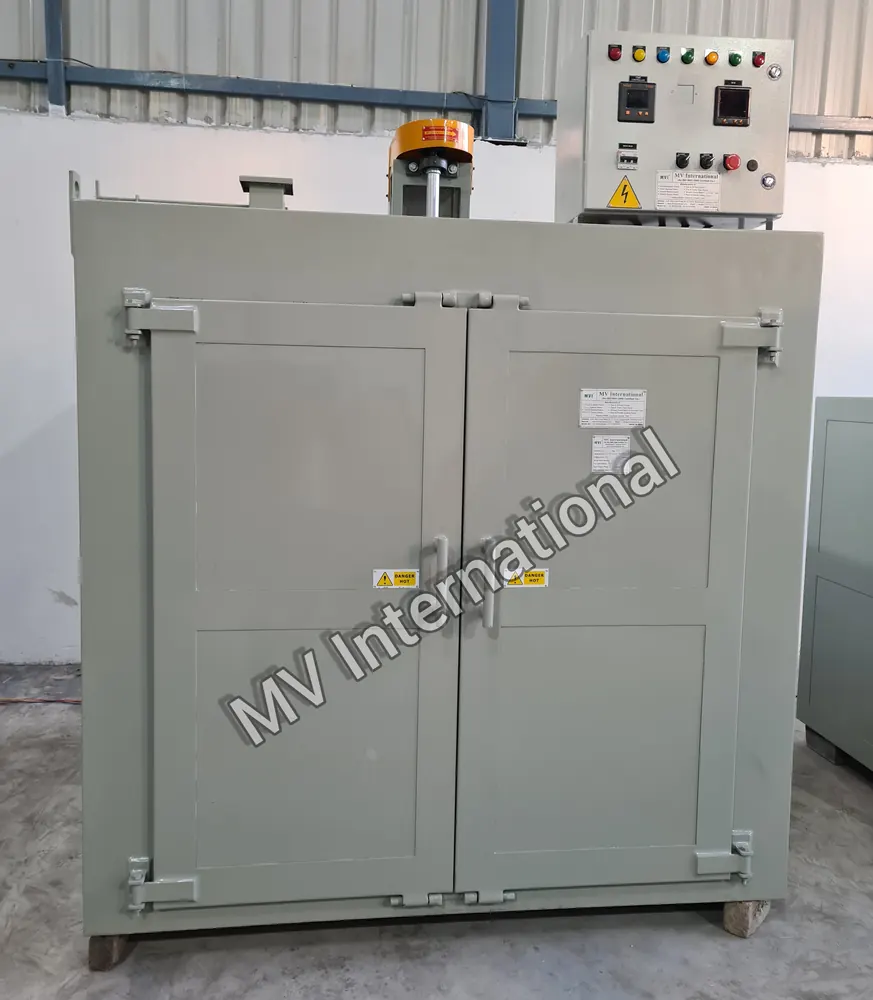

PU Wheel Heating Oven

The PU Wheel Heating Oven: Truly Praiseworthy And High On Demand!


MV International has gained widespread appreciation regarding the PU Wheel Heating Oven, which has recently been distributed in the market. We have adapted the latest innovative technologies and used high-quality raw materials for fabricating and engineering the product within our state-of-the-art facilities.

We have even ensured that our clients get a flawless PU Wheel Heating Oven in a similar way to that of our other popular innovations. Our professionals have worked day and night on designing and developing this product. The outcome has been quite satisfying as we successfully launched a Pu Wheel Heating Oven with less consumption of power, smooth maintenance, and simplicity in maintenance. A majority of our other clients have even demanded and praised it.


Key Features of the PU Wheel Oven Are Here

• Our PU Wheel Heating Oven bears a structure that’s insulated by ceramic or mineral wool. It even bears great thermal properties.
• We have equipped the oven door with a silicon jacket or fiberglass to protect it from high temperature.
• We have even placed a digital timer that works through 24x7.


SPECIFICATION :

Size of the working chamber As per client requirement.
Material of construction Mild Steel, Stainless Steel 304 / 316 or any.
Temperature Range Ambient to 1500C / 2500C / 4000C / 5000C.
Air circulation Vertical, Horizontal or Combination.
High Volume and high Velocity Airflow provides twice the air changes compare to ordinary Industrial Ovens.
Timer Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds
Paint Enamel Paint / Epoxy Coating / Powder Coated.
Power supply 230 Volts Single Phase 50Hz / 60Hz
415 Volts 3 Phase 50Hz / 60Hz
Heating Elements Low wattage Incoloy sheathed heating elements / SS Tubular
Insulation Ceramic Wool / Mineral Wool
Door Gasket Fibre Glass Rope (High Temp) / Silicon Gasket.
Heavy Duty Shelves / Trays Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven.
Exhaust Manual or Automatic Automatic forced exhaust system with fresh air inlet.
Manually adjustable damper with fresh air inlet.
Heating Media Electric / Gas / Diesel / Steam / Thermic OIL etc.

OPTIONAL FEATURES :

Temperature Control PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy.
The programming of PID can vary from 4 to 50 programmes.
Temperature Recorder Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder.
PLC With HMI PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI.
SCADA System High quality integration and controlling system from one point can be done with SCADA.
Door A. Door interlocking system will switch off the blower and the heating system if the oven doors are open
B. Doors on both ends
C. Vertical lift door
Fumes Outlet Forced exhaust blower
Windows and lights A. Viewing window
B. Interior lights and Access ports for calibration
C. Oven on switch- Illuminated
D. Heat on switch- Illuminated
Timer and Alarm A. 24/7 timer
B. Audible/visual alarm indicators
