Steam Heated Drum Oven Manufacturer, Supplier & Exporter
A steam heated drum oven warms drums of viscous or solidified material, such as wax, resin, fats, honey, oils and chemicals, so they can be poured or pumped easily. Steam heating uses no electrical heater elements inside the chamber, which makes it a safer choice for many chemical plants.

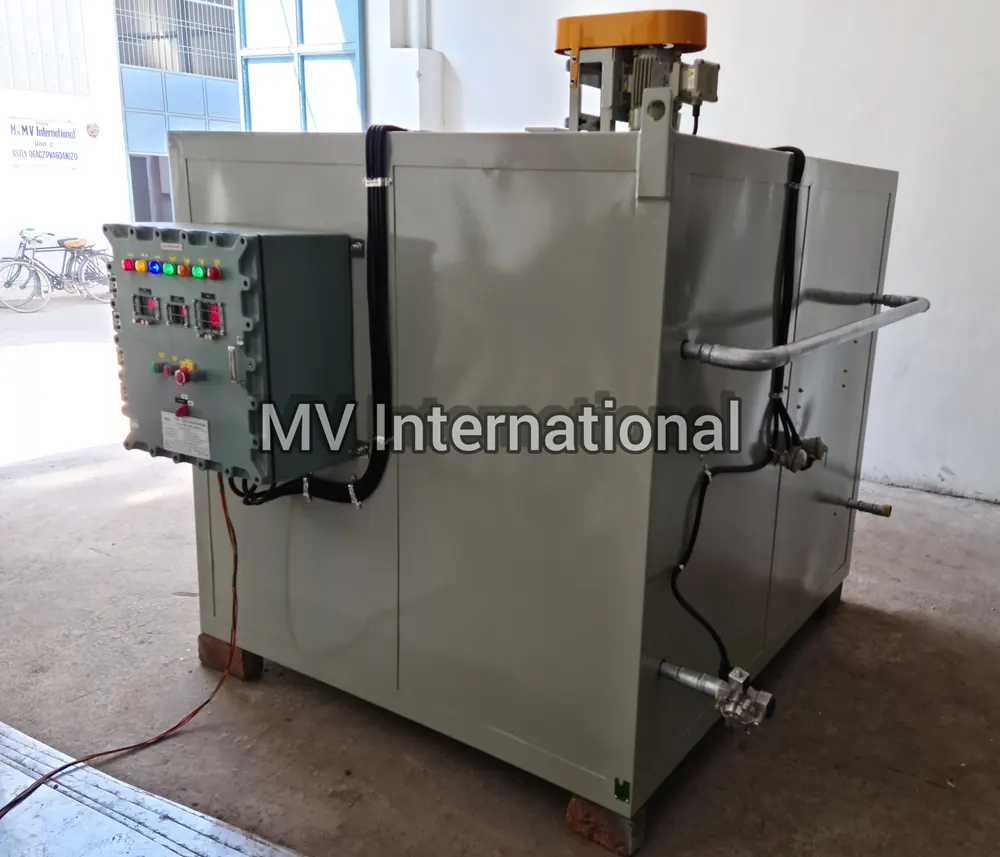

MV International steam heated drum ovens connect to your existing boiler through finned steam coils, control valves and steam traps. Capacities range from 1 to 16 drums, and IBC/tote versions are also available.
Key Features of Our Steam Heated Drum Oven
- Finned steam coil heat exchanger with trap and control valve
- 1, 2, 4, 8 or 16 drum capacities, plus IBC/tote models
- Forced air circulation for faster, even heating
- Floor-level loading with drum pallets or trolleys
- Temperature control through a modulating steam valve
- Optional flameproof motor and controls
Steam Heated Drum Oven Applications
- Melting wax and paraffin in drums
- Warming resins, epoxies and adhesives
- Liquefying fats, oils and honey
- Lowering viscosity of chemicals
- Thawing frozen products in drums
- Warming paints and coatings in winter
How the Steam Heated Drum Oven Works

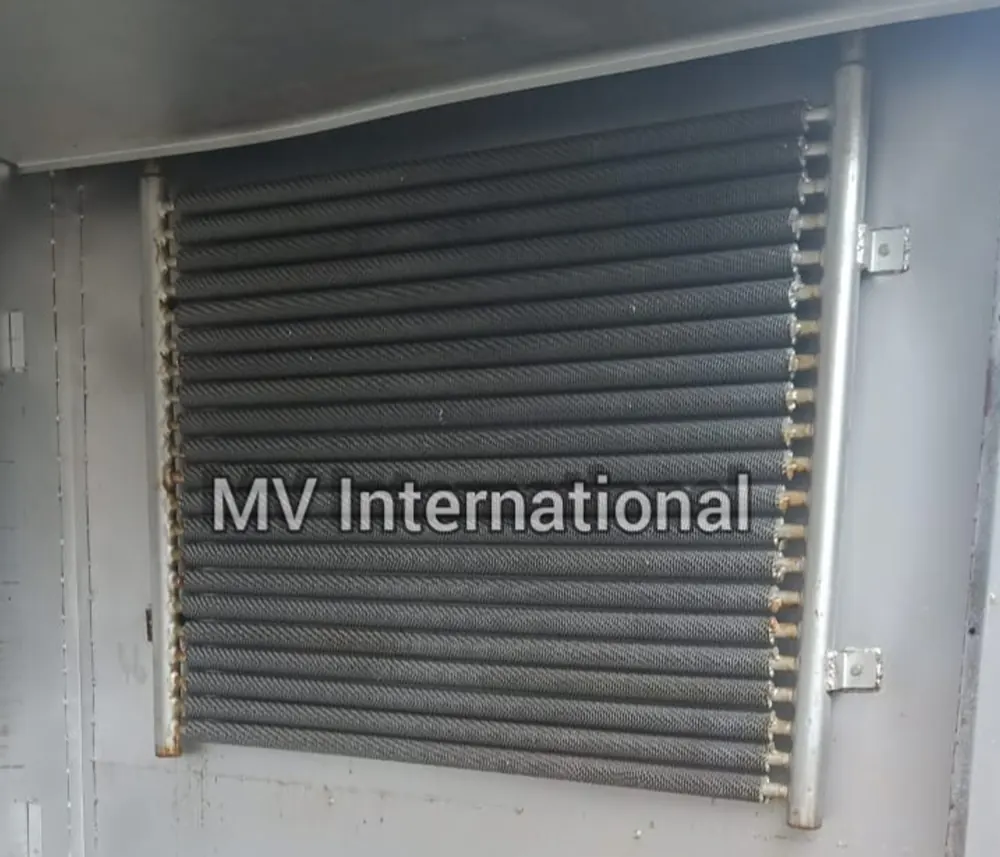

Steam flows through finned coils in a plenum, and a fan circulates air over the coils and around the drums. A temperature sensor controls the steam valve to hold the set point, and condensate returns through steam traps.
Steam Heated Drum Oven Technical Specifications
| Size of the working chamber | As per client requirement. |
|---|---|
| Material of construction | Mild Steel, Stainless Steel 304 / 316 or any. |
| Temperature Range | Ambient to 150°C / 250°C / 400°C / 500°C. |
| Air circulation | Vertical, Horizontal or Combination. High Volume and high Velocity Airflow provides twice the air changes compared to ordinary Industrial Ovens. |
| Timer | Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds |
| Paint | Enamel Paint / Epoxy Coating / Powder Coated. |
| Power supply | 230 Volts Single Phase 50Hz / 60Hz 415 Volts 3 Phase 50Hz / 60Hz |
| Heating Elements | Low wattage Incoloy sheathed heating elements / SS Tubular |
| Insulation | Ceramic Wool / Mineral Wool |
| Door Gasket | Fibreglass Rope (High Temp) / Silicone Gasket. |
| Heavy Duty Shelves / Trays | Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven. |
| Exhaust Manual or Automatic | Automatic forced exhaust system with fresh air inlet. Manually adjustable damper with fresh air inlet. |
| Heating Media | Electric / Gas / Diesel / Steam / Thermic OIL etc. |
Optional Features
| Temperature Control | PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy. The programming of PID can vary from 4 to 50 programmes. |
|---|---|
| Temperature Recorder | Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder. |
| PLC With HMI | PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI. |
| SCADA System | High quality integration and controlling system from one point can be done with SCADA. |
| Door | A. Door interlocking system will switch off the blower and the heating system if the oven doors are open B. Doors on both ends C. Vertical lift door |
| Fumes Outlet | Forced exhaust blower |
| Windows and lights | A. Viewing window B. Interior lights and Access ports for calibration C. Oven on switch- Illuminated D. Heat on switch- Illuminated |
| Timer and Alarm | A. 24/7 timer B. Audible/visual alarm indicators |
Steam Heated Drum Oven Manufacturer, Supplier & Exporter
Steam Heated Drum Oven Manufacturer in India
We manufacture the steam heated drum oven at our factory in M.I.E. Bahadurgarh, Haryana, using CNC-cut sheet metal, mineral or ceramic wool insulation and reliable control gear. As an experienced steam heated drum oven manufacturer, we run every oven at its working temperature (up to 200°C) before dispatch and share the test results with you.
Steam Heated Drum Oven Supplier
As a steam heated drum oven supplier, we deliver across India, including Delhi NCR, Haryana, Punjab, Uttar Pradesh, Gujarat, Maharashtra, Tamil Nadu, Karnataka, Telangana and West Bengal. Typical buyers are chemical, food, pharmaceutical, paint and oil companies. We handle site installation and commissioning, operator training, spares and after-sales service.
Steam Heated Drum Oven Exporter
As a steam heated drum oven exporter, we have delivered heating equipment to more than 50 countries, including Sri Lanka, Kenya, South Africa, UAE and Qatar. Each export order includes voltage and frequency matching, CE-style safety interlocks on request, export-worthy packing, and remote or on-site commissioning support.
Why Buy from MV International?
- In-house design and manufacturing since 1989, ISO 9001:2015 certified
- Custom chamber sizes, temperatures up to 500°C and electric, gas, diesel or steam heating
- Uniform air flow with high-volume blowers and PID/PLC temperature control
- Every oven is trial-run and tested before dispatch
- Installation, training, spares and after-sales service across India and abroad
Steam Heated Drum Oven FAQs
Why choose steam over electric heating for drum ovens?
If your plant already has a boiler, steam is often cheaper per kWh. Because there are no electric heaters in the air stream, it also suits many hazardous-area needs.
How many drums can the oven hold?
Standard sizes hold 1, 2, 4, 8 or 16 drums. Larger rooms and IBC versions are built to order.
What temperature can a steam drum oven reach?
It depends on steam pressure. Typically air temperatures of 80-150°C are achieved. See also our drum heating oven.
What is the price of a Steam Heated Drum Oven?
The price of a steam heated drum oven depends on chamber size, maximum temperature, heating media (electric, gas, diesel or steam), material of construction and the control system. Share your load details, process temperature and cycle time, and MV International will send a detailed quotation, usually within 24 hours.
Do you export the Steam Heated Drum Oven outside India?
Yes. MV International is an experienced steam heated drum oven exporter. We ship to the UAE, Saudi Arabia, Qatar, Oman, Africa, South-East Asia, Europe and the Americas, with voltage and frequency matched to your country and seaworthy export packing.
Need a steam heated drum oven? Send your part size, process details and production rate to sales@industrialoven.com or call +91 97182 90000. Our engineers will suggest the right model and send a quotation.
