Flux Baking Oven Manufacturer, Supplier & Exporter
A flux baking oven bakes SAW welding flux at high temperature to drive out moisture before welding. It is an inexpensive way to control weld quality, because dry flux prevents porosity and hydrogen cracking in submerged arc welds.

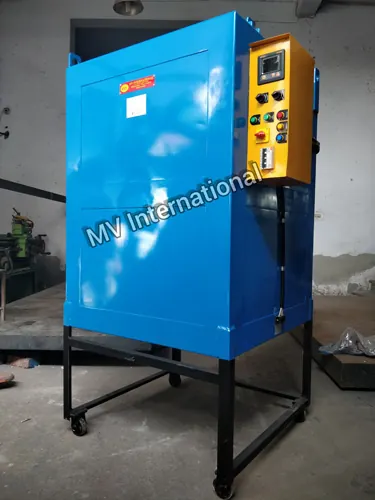

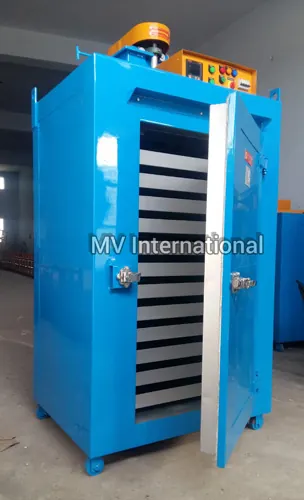

MV International flux baking ovens hold 200 kg on 10 trays, use a 1 HP, 1400 RPM blower and reach up to 400/500°C. On request, separate hoppers can be fitted so that different fluxes are dried and stored at the same time, and an auto cut-off facility is standard.
Key Features of Our Flux Baking Oven
- 200 kg capacity with 10 trays
- Ambient to 400°C / 500°C
- 1 HP blower air circulation
- Digital control with auto cut-off
- Optional separate hoppers for different flux types
- Baking and holding in one oven
Flux Baking Oven Applications
- SAW flux baking for vessels and pipes
- Wind tower and structural welding
- Boiler drum fabrication
- Shipbuilding
- Heavy engineering
- Flux reconditioning
How the Flux Baking Oven Works
Flux on trays is heated with circulating air to the baking temperature and held for the specified time. The auto cut-off ends heating at the set time, and flux is then held or transferred to the machine hopper.
Flux Baking Oven Technical Specifications
| Application | Remove moisture from SMAW Flux before use |
|---|---|
| Capacity | 200 Kgs |
| Temperature Range | Ambient to -400°C / 500°C |
| Temperature Controller | Digital |
| Trays | 10 Nos. |
| Air Circulation | 1 HP Blower 1400 RPM |
| Power supply | 415 Volts AC 3 Phase 50 Hz |
| Outer Finish | Enamel Paint |
| Inner Paint | Aluminium coating high temp |
| Weight of equipment | 600-650 Kgs approx |
| Advantages | Can use for baking and holding both |
Flux Baking Oven Manufacturer, Supplier & Exporter
Flux Baking Oven Manufacturer in India
We manufacture the flux baking oven at our factory in M.I.E. Bahadurgarh, Haryana, using CNC-cut sheet metal, mineral or ceramic wool insulation and reliable control gear. As an experienced flux baking oven manufacturer, we run every oven at its working temperature (up to 500°C) before dispatch and share the test results with you.
Flux Baking Oven Supplier
As a flux baking oven supplier, we deliver across India, including Delhi NCR, Haryana, Punjab, Uttar Pradesh, Gujarat, Maharashtra, Tamil Nadu, Karnataka, Telangana and West Bengal. Typical buyers are heavy fabricators, vessel makers and shipyards. We handle site installation and commissioning, operator training, spares and after-sales service.
Flux Baking Oven Exporter
As a flux baking oven exporter, we have delivered heating equipment to more than 50 countries, including Sri Lanka, Kenya, South Africa, UAE and Qatar. Each export order includes voltage and frequency matching, CE-style safety interlocks on request, export-worthy packing, and remote or on-site commissioning support.
Why Buy from MV International?
- In-house design and manufacturing since 1989, ISO 9001:2015 certified
- Custom chamber sizes, temperatures up to 500°C and electric, gas, diesel or steam heating
- Uniform air flow with high-volume blowers and PID/PLC temperature control
- Every oven is trial-run and tested before dispatch
- Installation, training, spares and after-sales service across India and abroad
Flux Baking Oven FAQs
What is the capacity of the flux baking oven?
200 kg on 10 trays.
Can different fluxes be stored separately?
Yes. Separate hoppers can be supplied on request.
Do you have higher capacities?
Yes. See our 300 kg flux heating oven and 500 kg welding flux oven.
What is the price of a Flux Baking Oven?
The price of a flux baking oven depends on chamber size, maximum temperature, heating media (electric, gas, diesel or steam), material of construction and the control system. Share your load details, process temperature and cycle time, and MV International will send a detailed quotation, usually within 24 hours.
Do you export the Flux Baking Oven outside India?
Yes. MV International is an experienced flux baking oven exporter. We ship to the UAE, Saudi Arabia, Qatar, Oman, Africa, South-East Asia, Europe and the Americas, with voltage and frequency matched to your country and seaworthy export packing.
Need a flux baking oven? Send your part size, process details and production rate to sales@industrialoven.com or call +91 97182 90000. Our engineers will suggest the right model and send a quotation.
