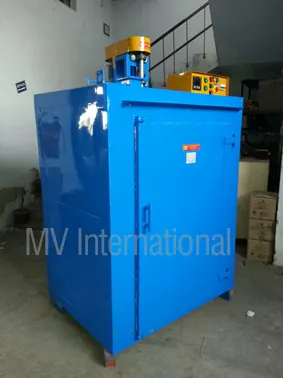

Forced Air Circulation Oven Manufacturer, Supplier & Exporter
A forced air circulation oven uses a powerful blower and ducted air distribution to move heated air at high velocity through the load. This gives faster heat transfer and tighter temperature uniformity than natural-convection or lightly ventilated ovens, which is why it is the standard design for production drying, curing and heat treatment.
MV International forced air circulation ovens are built from stainless or mild steel with heavy insulation. Their rigid, tough construction stands up to continuous, extensive use, and they apply heat quickly and evenly for drying, curing and moisture removal.
Key Features of Our Forced Air Circulation Oven
- High-velocity centrifugal blower with ducted distribution
- Adjustable louvres to balance air flow
- Uniform temperature throughout the chamber
- SS or MS construction with heavy insulation
- Temperature up to 500°C
- PID control with independent over-temperature safety
Forced Air Circulation Oven Applications
- Production drying of parts and materials
- Curing paints, powders and adhesives
- Moisture removal from electrical machines
- Preheating dies and moulds
- Stress relieving and ageing
- Laboratory-to-production scale heat treatment
How the Forced Air Circulation Oven Works
The blower draws air across the heaters and pushes it through supply ducts and louvres into the chamber. The air flows over the load and returns to the heater, and this rapid recirculation keeps every point in the chamber at nearly the same temperature.
Forced Air Circulation Oven Technical Specifications
| Size of the working chamber | As per client requirement. |
|---|---|
| Material of construction | Mild Steel, Stainless Steel 304 / 316 or any. |
| Temperature Range | Ambient to 150°C / 250°C / 400°C / 500°C. |
| Air circulation | Vertical, Horizontal or Combination. High Volume and high Velocity Airflow provides twice the air changes compared to ordinary Industrial Ovens. |
| Timer | Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds |
| Paint | Enamel Paint / Epoxy Coating / Powder Coated. |
| Power supply | 230 Volts Single Phase 50Hz / 60Hz 415 Volts 3 Phase 50Hz / 60Hz |
| Heating Elements | Low wattage Incoloy sheathed heating elements / SS Tubular |
| Insulation | Ceramic Wool / Mineral Wool |
| Door Gasket | Fibreglass Rope (High Temp) / Silicone Gasket. |
| Heavy Duty Shelves / Trays | Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven. |
| Exhaust Manual or Automatic | Automatic forced exhaust system with fresh air inlet. Manually adjustable damper with fresh air inlet. |
| Heating Media | Electric / Gas / Diesel / Steam / Thermic OIL etc. |
Optional Features
| Temperature Control | PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy. The programming of PID can vary from 4 to 50 programmes. |
|---|---|
| Temperature Recorder | Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder. |
| PLC With HMI | PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI. |
| SCADA System | High quality integration and controlling system from one point can be done with SCADA. |
| Door | A. Door interlocking system will switch off the blower and the heating system if the oven doors are open B. Doors on both ends C. Vertical lift door |
| Fumes Outlet | Forced exhaust blower |
| Windows and lights | A. Viewing window B. Interior lights and Access ports for calibration C. Oven on switch- Illuminated D. Heat on switch- Illuminated |
| Timer and Alarm | A. 24/7 timer B. Audible/visual alarm indicators |
Forced Air Circulation Oven Manufacturer, Supplier & Exporter
Forced Air Circulation Oven Manufacturer in India
We manufacture the forced air circulation oven at our factory in M.I.E. Bahadurgarh, Haryana, using CNC-cut sheet metal, mineral or ceramic wool insulation and reliable control gear. As an experienced forced air circulation oven manufacturer, we run every oven at its working temperature (up to 500°C) before dispatch and share the test results with you.
Forced Air Circulation Oven Supplier
As a forced air circulation oven supplier, we deliver across India, including Delhi NCR, Haryana, Punjab, Uttar Pradesh, Gujarat, Maharashtra, Tamil Nadu, Karnataka, Telangana and West Bengal. Typical buyers are engineering, electrical, coating and process industries. We handle site installation and commissioning, operator training, spares and after-sales service.
Forced Air Circulation Oven Exporter
As a forced air circulation oven exporter, we have delivered heating equipment to more than 50 countries, including Egypt, Indonesia, Saudi Arabia, Oman and United Kingdom. Each export order includes voltage and frequency matching, CE-style safety interlocks on request, export-worthy packing, and remote or on-site commissioning support.
Why Buy from MV International?
- In-house design and manufacturing since 1989, ISO 9001:2015 certified
- Custom chamber sizes, temperatures up to 500°C and electric, gas, diesel or steam heating
- Uniform air flow with high-volume blowers and PID/PLC temperature control
- Every oven is trial-run and tested before dispatch
- Installation, training, spares and after-sales service across India and abroad
Forced Air Circulation Oven FAQs
Why is forced air circulation better?
It heats the load faster and more evenly, so cycle times are shorter and quality is more consistent.
Can air velocity be adjusted?
Yes. Dampers or a VFD on the blower can reduce air velocity for light or powdery products.
How is it different from an air circulation oven?
It is the same principle. 'Forced' highlights the high-velocity blower. See also our air circulation oven.
How much does a Forced Air Circulation Oven cost?
A forced air circulation oven is built to order, so the cost depends on the working size, temperature range, heating method and options such as PLC control or a temperature recorder. Send us your requirement on the enquiry page or call +91-9718290000 for a quick, no-obligation quotation.
Can you supply the Forced Air Circulation Oven to buyers abroad?
Yes. Along with supplying all over India, we export the forced air circulation oven to the Middle East, Africa, Asia, Europe and the Americas. Ovens are built for your local power supply and shipped with complete documentation and commissioning support.
Need a forced air circulation oven? Send your part size, process details and production rate to sales@industrialoven.com or call +91 97182 90000. Our engineers will suggest the right model and send a quotation.
