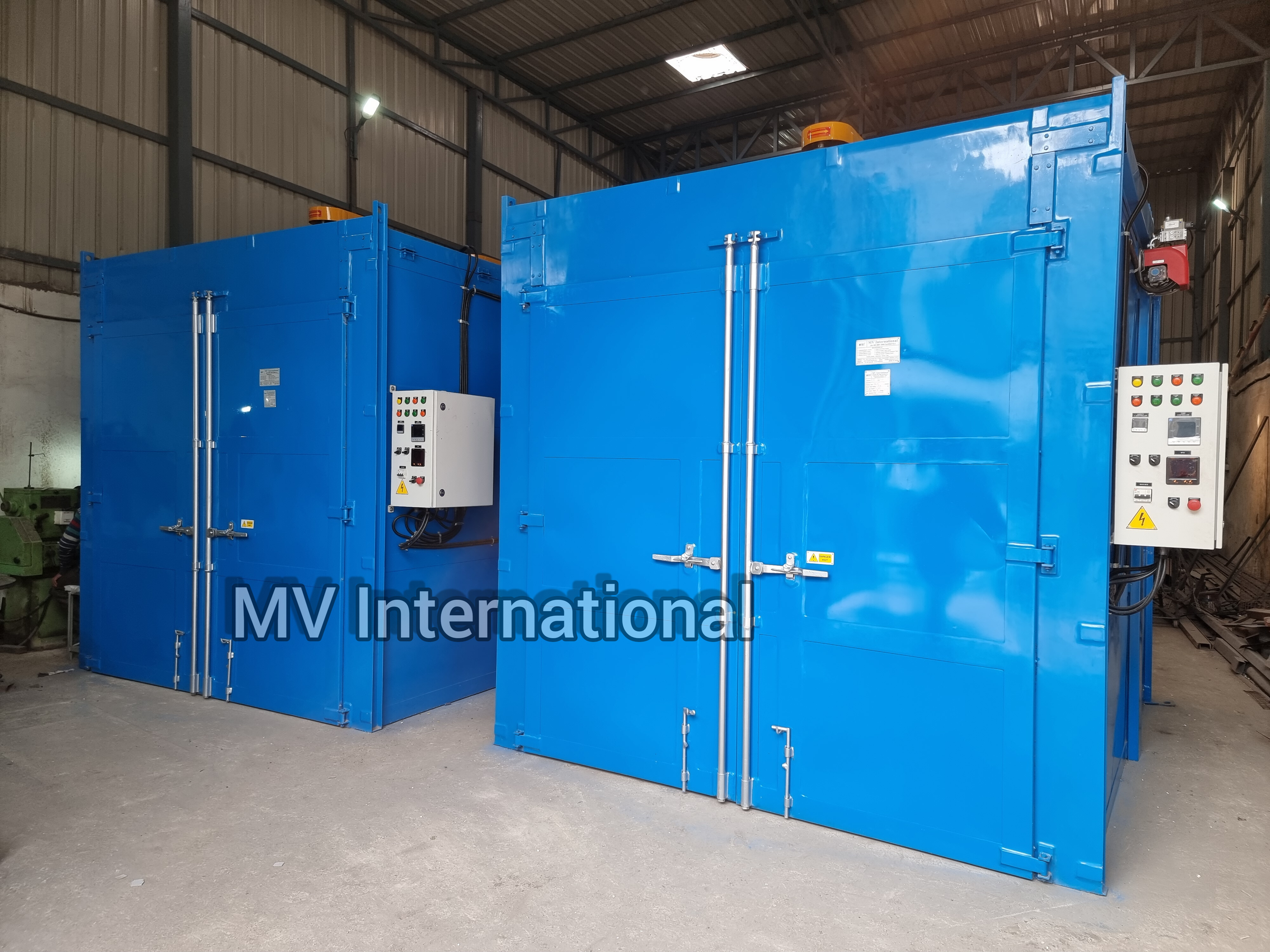

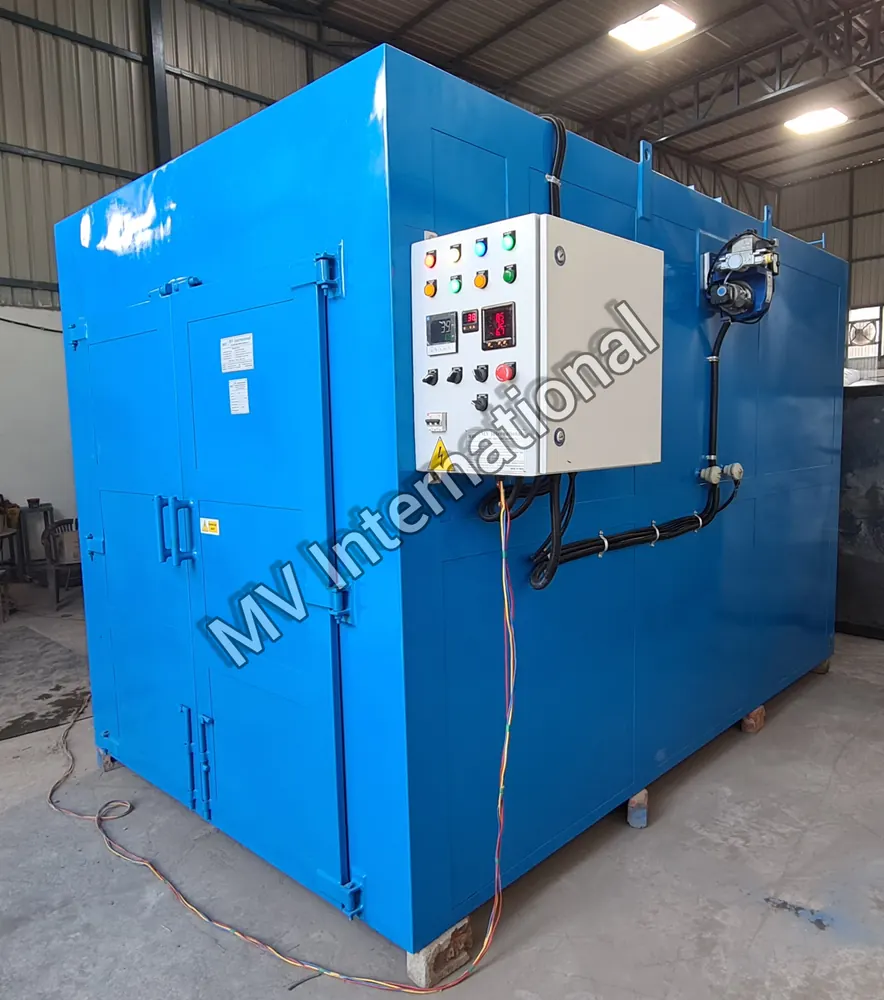

Burn Off Oven Manufacturer, Supplier & Exporter
A burn off oven (also called a pyrolysis or paint stripping oven) cleans paint hooks, racks, fixtures and parts by heating them in a controlled, low-oxygen atmosphere. The organic coating breaks down into smoke, and an afterburner destroys the smoke, leaving only a light ash that is easily washed or blown off.
Burn off ovens are widely used in powder coating plants to strip hangers and in motor rewinding shops to remove old varnish and insulation from stators before rewinding. MV International builds gas-fired and electric burn off ovens with water-spray fire suppression, controlled cycle times and safe pressure-relief doors.
Key Features of Our Burn Off Oven
- Pyrolysis chamber with controlled low-oxygen heating
- Afterburner to destroy smoke and odour
- Water-spray fire suppression system
- Full control of cycle time and temperature
- Pressure-relief door design
- Gas-fired or electric heating
Burn Off Oven Applications
- Stripping powder coating from hooks and racks
- Cleaning paint-line fixtures and grates
- Removing old varnish from motor stators
- Cleaning extrusion dies and filters
- Removing polymer from pump and extruder parts
- Cleaning conveyor chains and hangers
How the Burn Off Oven Works
Parts are loaded and the chamber is heated slowly to about 370-430°C with limited air, so the coating pyrolyses instead of burning. A water-spray system keeps the chamber below flash conditions. Smoke passes to the afterburner, where it is burned at high temperature before release, and the parts then cool down for unloading.
Burn Off Oven Technical Specifications
| Size of the working chamber | As per client requirement. |
|---|---|
| Material of construction | Mild Steel, Stainless Steel 304 / 316 or any. |
| Temperature Range | Ambient to 150°C / 250°C / 400°C / 500°C. |
| Air circulation | Vertical, Horizontal or Combination. High Volume and high Velocity Airflow provides twice the air changes compared to ordinary Industrial Ovens. |
| Timer | Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds |
| Paint | Enamel Paint / Epoxy Coating / Powder Coated. |
| Power supply | 230 Volts Single Phase 50Hz / 60Hz 415 Volts 3 Phase 50Hz / 60Hz |
| Heating Elements | Low wattage Incoloy sheathed heating elements / SS Tubular |
| Insulation | Ceramic Wool / Mineral Wool |
| Door Gasket | Fibreglass Rope (High Temp) / Silicone Gasket. |
| Heavy Duty Shelves / Trays | Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven. |
| Exhaust Manual or Automatic | Automatic forced exhaust system with fresh air inlet. Manually adjustable damper with fresh air inlet. |
| Heating Media | Electric / Gas / Diesel / Steam / Thermic OIL etc. |
Optional Features
| Temperature Control | PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy. The programming of PID can vary from 4 to 50 programmes. |
|---|---|
| Temperature Recorder | Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder. |
| PLC With HMI | PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI. |
| SCADA System | High quality integration and controlling system from one point can be done with SCADA. |
| Door | A. Door interlocking system will switch off the blower and the heating system if the oven doors are open B. Doors on both ends C. Vertical lift door |
| Fumes Outlet | Forced exhaust blower |
| Windows and lights | A. Viewing window B. Interior lights and Access ports for calibration C. Oven on switch- Illuminated D. Heat on switch- Illuminated |
| Timer and Alarm | A. 24/7 timer B. Audible/visual alarm indicators |
Burn Off Oven Manufacturer, Supplier & Exporter
Burn Off Oven Manufacturer in India
As a burn off oven manufacturer in India since 1989, MV International designs and builds every unit at our own works in Bahadurgarh, Haryana, close to Delhi NCR. Our engineers size the chamber, heater load and air-flow pattern to your actual load, so the oven reaches 450°C evenly and holds it within a tight band. Every burn off oven is assembled, wired and trial-run at our plant before dispatch.
Burn Off Oven Supplier
MV International supplies the burn off oven to powder coaters, paint shops, motor rewinders and plastic processors all over India. Industrial clusters we serve regularly include Gurugram, Faridabad, Noida, Ludhiana, Ahmedabad, Vadodara, Pune, Chennai, Bengaluru, Hyderabad and Kolkata. With every oven we provide a manual, wiring diagram, spares list and quick service support.
Burn Off Oven Exporter
Overseas buyers source the burn off oven from us because we combine Indian manufacturing costs with export-quality construction. Regular destinations include Oman, United Kingdom, Nepal, Nigeria and Egypt. We build to your local power supply, quote FOB or CIF, and supply documentation, spares and remote support.
Why Buy from MV International?
- In-house design and manufacturing since 1989, ISO 9001:2015 certified
- Custom chamber sizes, temperatures up to 500°C and electric, gas, diesel or steam heating
- Uniform air flow with high-volume blowers and PID/PLC temperature control
- Every oven is trial-run and tested before dispatch
- Installation, training, spares and after-sales service across India and abroad
Burn Off Oven FAQs
How does a burn off oven remove paint?
It heats parts in a low-oxygen chamber, so the coating breaks down into gases. These gases are burned in an afterburner, and only ash remains on the parts.
Will a burn off oven damage motor stators?
When the temperature is controlled correctly, the laminations are not damaged. Our ovens limit chamber temperature and use water spray for control.
Is an afterburner necessary?
Yes. The afterburner destroys smoke and odour so emissions stay within limits.
How much does a Burn Off Oven cost?
A burn off oven is built to order, so the cost depends on the working size, temperature range, heating method and options such as PLC control or a temperature recorder. Send us your requirement on the enquiry page or call +91-9718290000 for a quick, no-obligation quotation.
Do you export the Burn Off Oven outside India?
Yes. MV International is an experienced burn off oven exporter. We ship to the UAE, Saudi Arabia, Qatar, Oman, Africa, South-East Asia, Europe and the Americas, with voltage and frequency matched to your country and seaworthy export packing.
Need a burn off oven? Send your part size, process details and production rate to sales@industrialoven.com or call +91 97182 90000. Our engineers will suggest the right model and send a quotation.
