Stainless Steel Tray Dryer Manufacturer, Supplier & Exporter
A stainless steel tray dryer is a GMP-ready tray drying cabinet in which every product-contact surface is SS 304 or SS 316. It is the most widely used dryer in pharmaceutical, food and fine-chemical plants, especially where moisture content is high and products must be dried at low temperature over long hours.

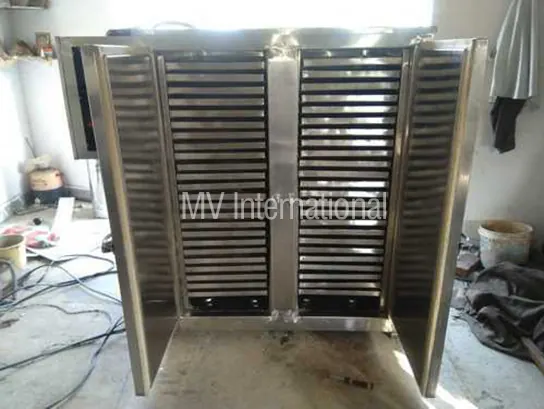

MV International stainless steel tray dryers are double-walled cabinets with one or two doors. The space between the walls is packed with high-density insulation. Standard capacities are 6, 12, 24, 48, 96 and 192 trays, with electric or steam heating.
Key Features of Our Stainless Steel Tray Dryer
- SS 304 / SS 316 contact parts with polished finish
- 6, 12, 24, 48, 96 and 192 tray capacities
- Electric or steam heating
- Double-walled, insulated body with one or two doors
- Uniform air flow through adjustable louvres
- Digital controller, timer and optional recorder
Stainless Steel Tray Dryer Applications
- Pharmaceutical granules and APIs
- Nutraceuticals and herbal extracts
- Food powders and dehydrated products
- Fine chemicals
- Cosmetics raw materials
- Laboratory and pilot plants
How the Stainless Steel Tray Dryer Works
The product is spread on SS trays loaded into the cabinet or onto trolleys. Fresh air is heated by electric heaters or steam radiators and circulated across the trays. Moist air is exhausted, and the temperature controller holds the drying temperature.
Stainless Steel Tray Dryer Technical Specifications
| Size of the working chamber | As per client requirement. |
|---|---|
| Material of construction | Mild Steel, Stainless Steel 304 / 316 or any. |
| Temperature Range | Ambient to 150°C / 250°C / 400°C / 500°C. |
| Air circulation | Vertical, Horizontal or Combination. High Volume and high Velocity Airflow provides twice the air changes compared to ordinary Industrial Ovens. |
| Timer | Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds |
| Paint | Enamel Paint / Epoxy Coating / Powder Coated. |
| Power supply | 230 Volts Single Phase 50Hz / 60Hz 415 Volts 3 Phase 50Hz / 60Hz |
| Heating Elements | Low wattage Incoloy sheathed heating elements / SS Tubular |
| Insulation | Ceramic Wool / Mineral Wool |
| Door Gasket | Fibreglass Rope (High Temp) / Silicone Gasket. |
| Heavy Duty Shelves / Trays | Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven. |
| Exhaust Manual or Automatic | Automatic forced exhaust system with fresh air inlet. Manually adjustable damper with fresh air inlet. |
| Heating Media | Electric / Gas / Diesel / Steam / Thermic OIL etc. |
Optional Features
| Temperature Control | PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy. The programming of PID can vary from 4 to 50 programmes. |
|---|---|
| Temperature Recorder | Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder. |
| PLC With HMI | PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI. |
| SCADA System | High quality integration and controlling system from one point can be done with SCADA. |
| Door | A. Door interlocking system will switch off the blower and the heating system if the oven doors are open B. Doors on both ends C. Vertical lift door |
| Fumes Outlet | Forced exhaust blower |
| Windows and lights | A. Viewing window B. Interior lights and Access ports for calibration C. Oven on switch- Illuminated D. Heat on switch- Illuminated |
| Timer and Alarm | A. 24/7 timer B. Audible/visual alarm indicators |
Stainless Steel Tray Dryer Manufacturer, Supplier & Exporter
Stainless Steel Tray Dryer Manufacturer in India
MV International is an ISO 9001:2015 certified stainless steel tray dryer manufacturer with more than 35 years of experience in industrial heating. Fabrication, insulation, electrical panel building and testing are done in-house at Bahadurgarh, Haryana, which lets us control quality and delivery time. Each stainless steel tray dryer is built to your load, process temperature (up to 250°C) and floor space rather than picked from a catalogue.
Stainless Steel Tray Dryer Supplier
Looking for a reliable stainless steel tray dryer supplier? We have supplied ovens to pharmaceutical, food, nutraceutical and fine-chemical companies and to OEMs and job shops in every major industrial state of India. You get one point of contact for design, manufacturing, delivery, installation and service, with heaters, blowers and controllers available from stock.
Stainless Steel Tray Dryer Exporter
MV International is also an established stainless steel tray dryer exporter. We ship to the Middle East, Africa, South and South-East Asia, Europe and the Americas, including Kenya, South Africa, UAE, Qatar and United States. Export ovens are built for the local supply voltage and frequency (50 Hz or 60 Hz), packed in seaworthy wooden crates and sent with complete documentation.
Why Buy from MV International?
- In-house design and manufacturing since 1989, ISO 9001:2015 certified
- Custom chamber sizes, temperatures up to 500°C and electric, gas, diesel or steam heating
- Uniform air flow with high-volume blowers and PID/PLC temperature control
- Every oven is trial-run and tested before dispatch
- Installation, training, spares and after-sales service across India and abroad
Stainless Steel Tray Dryer FAQs
Is a stainless steel tray dryer GMP compliant?
Our SS tray dryers are built with SS 316 / 304 contact parts, smooth finishes and easy-clean design to support GMP. Validation documents can be provided on request.
What capacities are available?
Standard models have 6, 12, 24, 48, 96 or 192 trays.
Electric or steam - which should I choose?
Steam is economical where a boiler exists. Electric is simpler to install and gives precise control. See also our tray dryer.
What is the price of a Stainless Steel Tray Dryer?
The price of a stainless steel tray dryer depends on chamber size, maximum temperature, heating media (electric, gas, diesel or steam), material of construction and the control system. Share your load details, process temperature and cycle time, and MV International will send a detailed quotation, usually within 24 hours.
Do you export the Stainless Steel Tray Dryer outside India?
Yes. MV International is an experienced stainless steel tray dryer exporter. We ship to the UAE, Saudi Arabia, Qatar, Oman, Africa, South-East Asia, Europe and the Americas, with voltage and frequency matched to your country and seaworthy export packing.
Need a stainless steel tray dryer? Send your part size, process details and production rate to sales@industrialoven.com or call +91 97182 90000. Our engineers will suggest the right model and send a quotation.
