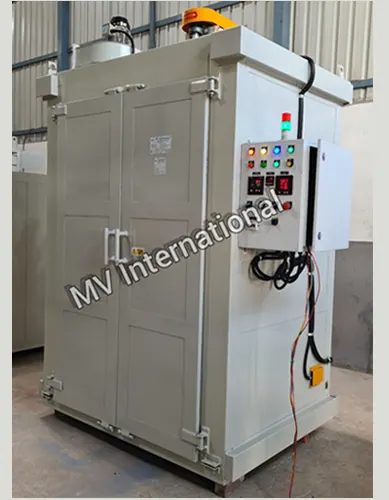

Post Curing Oven

Post Curing Ovens – Quick and Efficient Post Curing For Various Raw Materials !


MV International offers high precision Post Curing Oven that works at enormously high temperatures to produce effective post curing results. After a metal part or raw material has been cured through extreme heat, it must be further processed through post curing treatments which further enhance its qualities and features. Through our modern post curing oven, this activity can be done quickly, efficiently and at the lowest cost.


Post Curing Oven – Effective Post Curing With The Highest Precision

We offer hi-tech and modern post curing oven that can be used to effective heat treat cured items using extreme temperatures. The temperature that can be set is from 150 Degrees Centigrade to 232 Degrees Centigrade. Through a set of precision controls, the desired temperature can be quickly set and the heating process can be monitored through the oven’s window. At any time during heating, the process can be stopped to check condition of the contents inside. Our post curing oven is made from high quality stainless steel which enables it to be used continuously for post curing activities without any repair issues.

MV International is a leading post curing oven manufacturer providing the latest models with the most advanced features. Look into our oven catalog and order right away for your desired oven at the lowest price!

SPECIFICATION :

Size of the working chamber As per client requirement.
Material of construction Mild Steel, Stainless Steel 304 / 316 or any.
Temperature Range Ambient to 1500C / 2500C / 4000C / 5000C.
Air circulation Vertical, Horizontal or Combination.
High Volume and high Velocity Airflow provides twice the air changes compare to ordinary Industrial Ovens.
Timer Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds
Paint Enamel Paint / Epoxy Coating / Powder Coated.
Power supply 230 Volts Single Phase 50Hz / 60Hz
415 Volts 3 Phase 50Hz / 60Hz
Heating Elements Low wattage Incoloy sheathed heating elements / SS Tubular
Insulation Ceramic Wool / Mineral Wool
Door Gasket Fibre Glass Rope (High Temp) / Silicon Gasket.
Heavy Duty Shelves / Trays Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven.
Exhaust Manual or Automatic Automatic forced exhaust system with fresh air inlet.
Manually adjustable damper with fresh air inlet.
Heating Media Electric / Gas / Diesel / Steam / Thermic OIL etc.

OPTIONAL FEATURES :

Temperature Control PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy.
The programming of PID can vary from 4 to 50 programmes.
Temperature Recorder Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder.

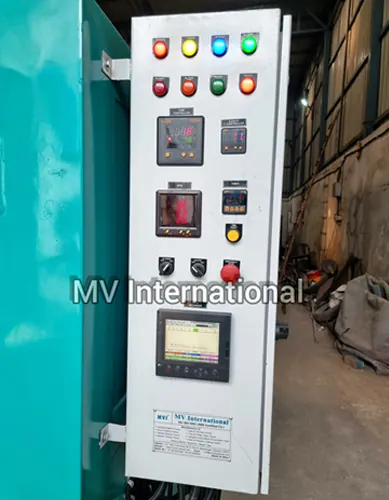

PLC With HMI PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI.
SCADA System High quality integration and controlling system from one point can be done with SCADA.
Door A. Door interlocking system will switch off the blower and the heating system if the oven doors are open
B. Doors on both ends
C. Vertical lift door
Fumes Outlet Forced exhaust blower
Windows and lights A. Viewing window
B. Interior lights and Access ports for calibration
C. Oven on switch- Illuminated
D. Heat on switch- Illuminated
Timer and Alarm A. 24/7 timer
B. Audible/visual alarm indicators
