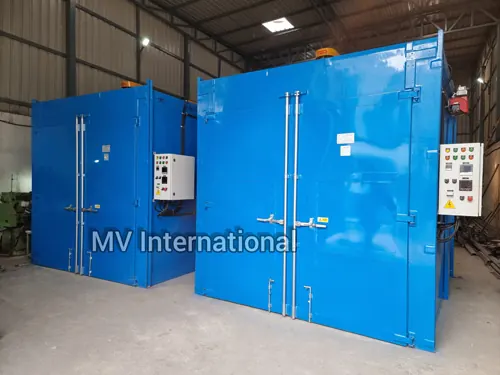

PFA Coating Oven Manufacturers

PFA coating can flow and melt easily to create non-porous films and increase resistance to permeation. Considering this, many companies have started designing PFA coating ovens to work continuously at high temperatures and provide toughness to the product.

• PFA Coating Oven operates a diverse range of temperatures, which include 50 Degrees Celsius, 100 Degree Celsius, 200 Degree Celsius & 350 Degree Celsius.
• The oven has both horizontal and vertical down airflows.
• The appliance comes with a tailor-made operational chamber.
• As the name itself, these ovens come with painted or coated surfaces to achieve their durability.
• The oven applies a high force of air according to the air circulation technique.
• The appliance operates on a high voltage and different frequencies.

MV International offers PFA Coating Ovens for different industries and under diverse categories. These include Halar-coated ovens, Geomet ovens, and Dacromet ovens.Other than that, PFA-coated ovens work well in pipes used in industries.

We the MV International have considered various properties of PFA coating while designing our coated ovens to meet the requirements of diverse industries.Our quality controllers undergo regular quality tests on many stages to deliver curing ovens to our industrial clients.

• SPECIFICATION

  Size of the working chamber	As per client requirement.
  Material of construction	Mild Steel, Stainless Steel 304 / 316 or any.
  Temperature Range	Ambient to 1500C / 2500C / 4000C / 5000C.
  Air circulation	Vertical, Horizontal or Combination. High Volume and high Velocity Airflow provides twice the air changes compare to ordinary Industrial Ovens.
  Timer	Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds
  Paint	Enamel Paint / Epoxy Coating / Powder Coated.
  Power supply	230 Volts Single Phase 50Hz / 60Hz 415 Volts 3 Phase 50Hz / 60Hz
  Heating Elements	Low wattage Incoloy sheathed heating elements / SS Tubular
  Insulation	Ceramic Wool / Mineral Wool
  Door Gasket	Fibre Glass Rope (High Temp) / Silicon Gasket.
  Heavy Duty Shelves / Trays	Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven.
  Exhaust Manual or Automatic	Automatic forced exhaust system with fresh air inlet. Manually adjustable damper with fresh air inlet.
  Heating Media	Electric / Gas / Diesel / Steam / Thermic OIL etc.

• OPTIONAL FEATURES

  Temperature Control	PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy. The programming of PID can vary from 4 to 50 programmes.
  Temperature Recorder	Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder.
  PLC With HMI	PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI.
  SCADA System	High quality integration and controlling system from one point can be done with SCADA.
  Door	A. Door interlocking system will switch off the blower and the heating system if the oven doors are open B. Doors on both ends C. Vertical lift door
  Fumes Outlet	Forced exhaust blower
  Windows and lights	A. Viewing window B. Interior lights and Access ports for calibration C. Oven on switch- Illuminated D. Heat on switch- Illuminated
  Timer and Alarm	A. 24/7 timer B. Audible/visual alarm indicators
