Flux Drying Oven Manufacturer, Supplier & Exporter
A flux drying oven removes moisture from submerged arc welding (SAW) flux before use. SAW flux protects the weld pool from the atmosphere, but if it carries moisture it introduces hydrogen into the weld and causes porosity and cracking. Drying flux is therefore a standard step on vessel, pipe and structural welding lines.

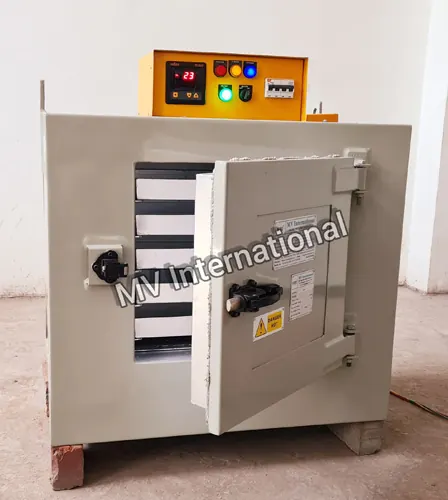

MV International flux drying ovens hold 100 kg on 6 trays, with a 1 HP, 1400 RPM blower for air circulation and drying temperatures up to 400/500°C. They can be used for both baking and holding.
Key Features of Our Flux Drying Oven
- 100 kg capacity with 6 trays
- Ambient to 400°C / 500°C
- 1 HP, 1400 RPM blower for air circulation
- Digital temperature controller
- 415 V AC, 3-phase
- Use for baking and holding
Flux Drying Oven Applications
- Submerged arc welding of pressure vessels
- Pipe mills and spiral pipe welding
- Wind tower fabrication
- Shipbuilding
- Structural beam welding
- Boiler manufacturing
How the Flux Drying Oven Works
Flux is spread on trays in thin layers and heated with circulating air to the drying temperature recommended by the flux maker, typically 250-350°C. It is then held at a lower temperature until it is loaded into the welding machine hopper.
Flux Drying Oven Technical Specifications
| Application | Remove moisture from SMAW Flux before use. |
|---|---|
| Capacity | 100 Kgs |
| Temperature Range | Ambient to -400°C / 500°C |
| Temperature Controller | Digital |
| Trays | 6 Nos |
| Air Circulation | 1 HP Blower 1400 RPM |
| Power Supply | 415 Volts AC 3 Phase 50 Hz |
| Outer Finish | Enamel Paint |
| Inner Paint | Aluminium coating high temp |
| Weight of equipment | 450-500 Kgs approx |
| Advantages | Can use for baking and holding both |
Flux Drying Oven Manufacturer, Supplier & Exporter
Flux Drying Oven Manufacturer in India
We manufacture the flux drying oven at our factory in M.I.E. Bahadurgarh, Haryana, using CNC-cut sheet metal, mineral or ceramic wool insulation and reliable control gear. As an experienced flux drying oven manufacturer, we run every oven at its working temperature (up to 500°C) before dispatch and share the test results with you.
Flux Drying Oven Supplier
As a flux drying oven supplier, we deliver across India, including Delhi NCR, Haryana, Punjab, Uttar Pradesh, Gujarat, Maharashtra, Tamil Nadu, Karnataka, Telangana and West Bengal. Typical buyers are pressure vessel, pipe, wind tower and shipbuilding fabricators. We handle site installation and commissioning, operator training, spares and after-sales service.
Flux Drying Oven Exporter
As a flux drying oven exporter, we have delivered heating equipment to more than 50 countries, including Egypt, Indonesia, Saudi Arabia, Oman and United Kingdom. Each export order includes voltage and frequency matching, CE-style safety interlocks on request, export-worthy packing, and remote or on-site commissioning support.
Why Buy from MV International?
- In-house design and manufacturing since 1989, ISO 9001:2015 certified
- Custom chamber sizes, temperatures up to 500°C and electric, gas, diesel or steam heating
- Uniform air flow with high-volume blowers and PID/PLC temperature control
- Every oven is trial-run and tested before dispatch
- Installation, training, spares and after-sales service across India and abroad
Flux Drying Oven FAQs
At what temperature should SAW flux be dried?
Agglomerated fluxes are commonly re-dried at 250-350°C for 1-2 hours. Follow the flux manufacturer's data.
What is the capacity of this oven?
100 kg on 6 trays. Larger models of 200, 300 and 500 kg are available.

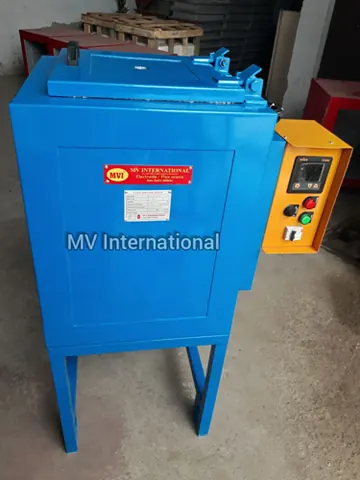

Do you have top-loading flux ovens?
Yes. See our top loading SAW flux oven.
How much does a Flux Drying Oven cost?
A flux drying oven is built to order, so the cost depends on the working size, temperature range, heating method and options such as PLC control or a temperature recorder. Send us your requirement on the enquiry page or call +91-9718290000 for a quick, no-obligation quotation.
Can you supply the Flux Drying Oven to buyers abroad?
Yes. Along with supplying all over India, we export the flux drying oven to the Middle East, Africa, Asia, Europe and the Americas. Ovens are built for your local power supply and shipped with complete documentation and commissioning support.
Need a flux drying oven? Send your part size, process details and production rate to sales@industrialoven.com or call +91 97182 90000. Our engineers will suggest the right model and send a quotation.
