Welding Flux Oven Manufacturer, Supplier & Exporter
A welding flux oven bakes and stores large quantities of SAW flux for demanding sub-arc welding operations. Fast heating and large capacity keep heavy fabrication lines supplied with dry flux through every shift.

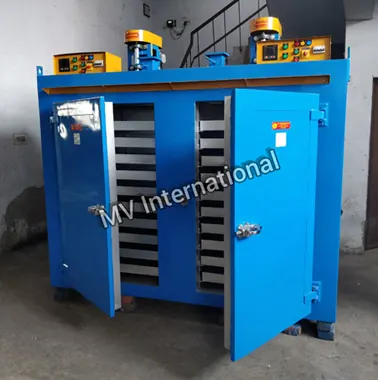

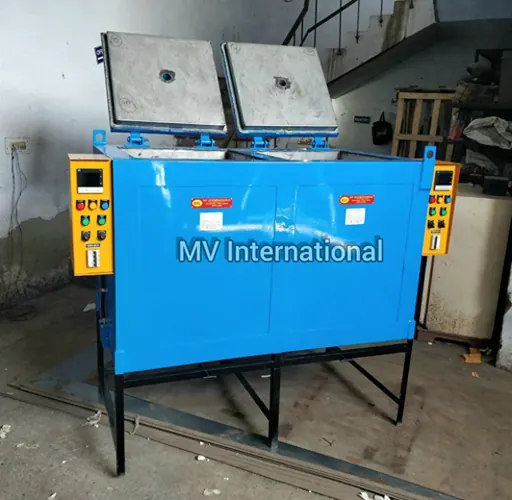

MV International welding flux ovens have a 500 kg capacity on 20 trays, a 1 HP, 1400 RPM blower and temperatures up to 300/400/500°C. They run on 230 V or 415 V AC, with digital PID control available, in floor-mounted front-loading and top-loading designs.
Key Features of Our Welding Flux Oven
- 500 kg capacity with 20 trays
- Up to 300°C / 400°C / 500°C
- 1 HP, 1400 RPM blower
- Digital PID control
- Front-loading or top-loading designs
- Baking and holding in one oven
Welding Flux Oven Applications
- Heavy pressure vessel fabrication
- Pipe mills (LSAW/HSAW)
- Wind tower plants
- Shipyards
- Heavy structural fabrication
- Boiler manufacturing
How the Welding Flux Oven Works
Flux is loaded on 20 trays and baked with circulated hot air at the recommended temperature, then held until use. Large capacity means one bake covers several shifts of SAW welding.
Welding Flux Oven Technical Specifications
| Application | Remove moisture from electrodes before use. |
|---|---|
| Capacity | 500 Kg |
| Temperature Range | Ambient to - 300°C / 400°C / 500°C |
| Temperature Controller | Digital |
| Trays | 20 Nos. |
| Air Circulation | 1 HP Blower 1400 RPM |
| Power Supply | 415 Volts AC 3 Phase 50 Hz with neutral. |
| Outer Finish | Enamel Paint. |
| Inner Paint | Aluminium coating high temp |
| Weight of equipment | 550-600 Kgs approx. |
| Advantages | Can use for baking and holding both. |
Welding Flux Oven Manufacturer, Supplier & Exporter
Welding Flux Oven Manufacturer in India
MV International is an ISO 9001:2015 certified welding flux oven manufacturer with more than 35 years of experience in industrial heating. Fabrication, insulation, electrical panel building and testing are done in-house at Bahadurgarh, Haryana, which lets us control quality and delivery time. Each welding flux oven is built to your load, process temperature (up to 500°C) and floor space rather than picked from a catalogue.
Welding Flux Oven Supplier
Looking for a reliable welding flux oven supplier? We have supplied ovens to heavy fabricators, pipe mills and shipyards and to OEMs and job shops in every major industrial state of India. You get one point of contact for design, manufacturing, delivery, installation and service, with heaters, blowers and controllers available from stock.
Welding Flux Oven Exporter
MV International is also an established welding flux oven exporter. We ship to the Middle East, Africa, South and South-East Asia, Europe and the Americas, including Kenya, South Africa, UAE, Qatar and United States. Export ovens are built for the local supply voltage and frequency (50 Hz or 60 Hz), packed in seaworthy wooden crates and sent with complete documentation.
Why Buy from MV International?
- In-house design and manufacturing since 1989, ISO 9001:2015 certified
- Custom chamber sizes, temperatures up to 500°C and electric, gas, diesel or steam heating
- Uniform air flow with high-volume blowers and PID/PLC temperature control
- Every oven is trial-run and tested before dispatch
- Installation, training, spares and after-sales service across India and abroad
Welding Flux Oven FAQs
What is the largest flux oven you make?
The standard welding flux oven holds 500 kg, and larger custom sizes are possible.
Front loading or top loading?
Front loading suits tray handling. Top loading suits hopper filling with bulk bags.
Which power supply is needed?
415 V AC three-phase with neutral is standard.
What is the price of a Welding Flux Oven?
The price of a welding flux oven depends on chamber size, maximum temperature, heating media (electric, gas, diesel or steam), material of construction and the control system. Share your load details, process temperature and cycle time, and MV International will send a detailed quotation, usually within 24 hours.
Can you supply the Welding Flux Oven to buyers abroad?
Yes. Along with supplying all over India, we export the welding flux oven to the Middle East, Africa, Asia, Europe and the Americas. Ovens are built for your local power supply and shipped with complete documentation and commissioning support.
Need a welding flux oven? Send your part size, process details and production rate to sales@industrialoven.com or call +91 97182 90000. Our engineers will suggest the right model and send a quotation.
