Walk-In Oven Manufacturer, Supplier & Exporter

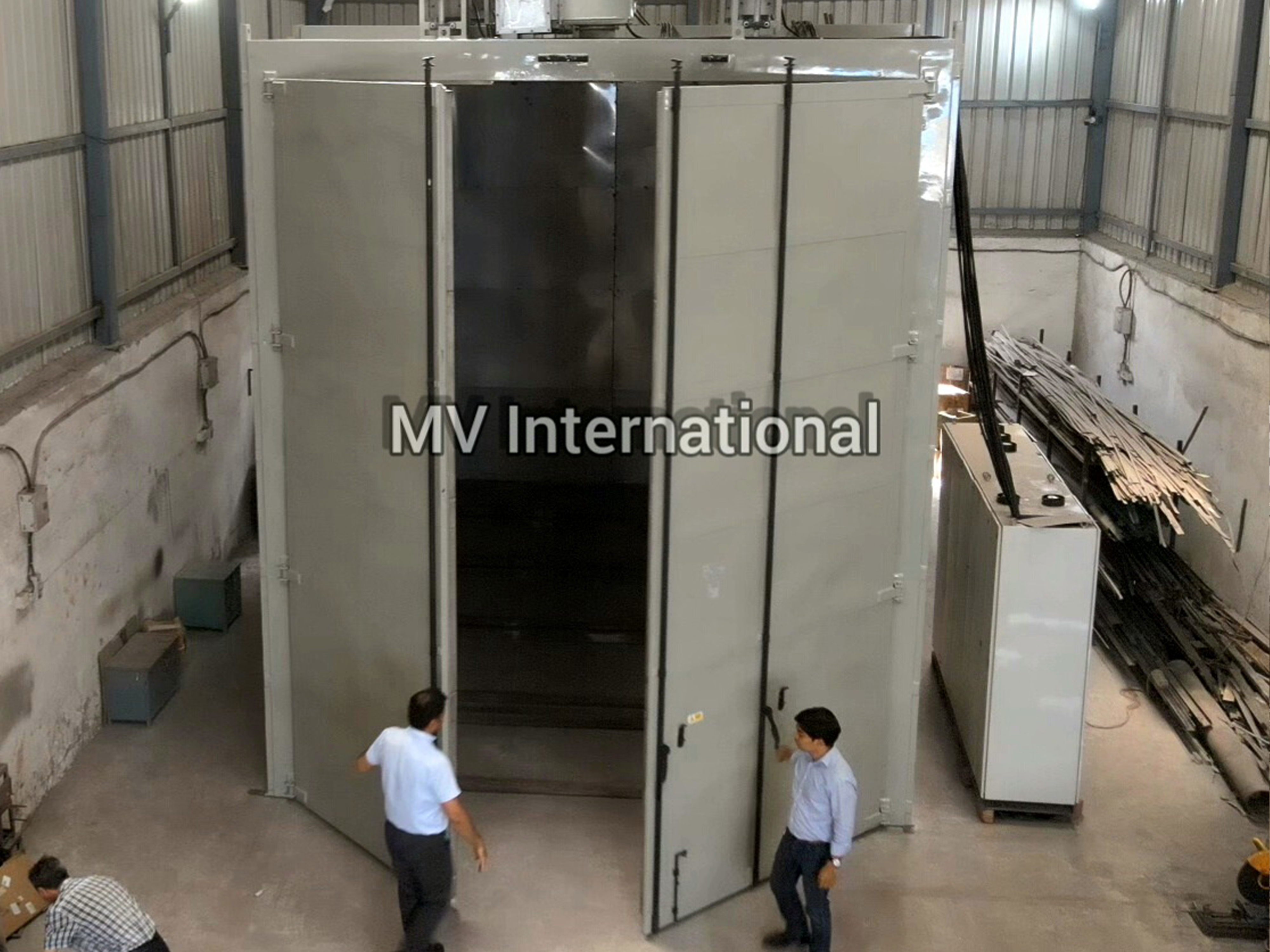

A walk-in oven is a large batch oven that operators can walk into, with loads rolled in on trolleys, carts or overhead rails. Walk-in and drive-in ovens handle big, heavy or high-volume loads, such as powder-coated fabrications, composite moulds, transformers and large castings.

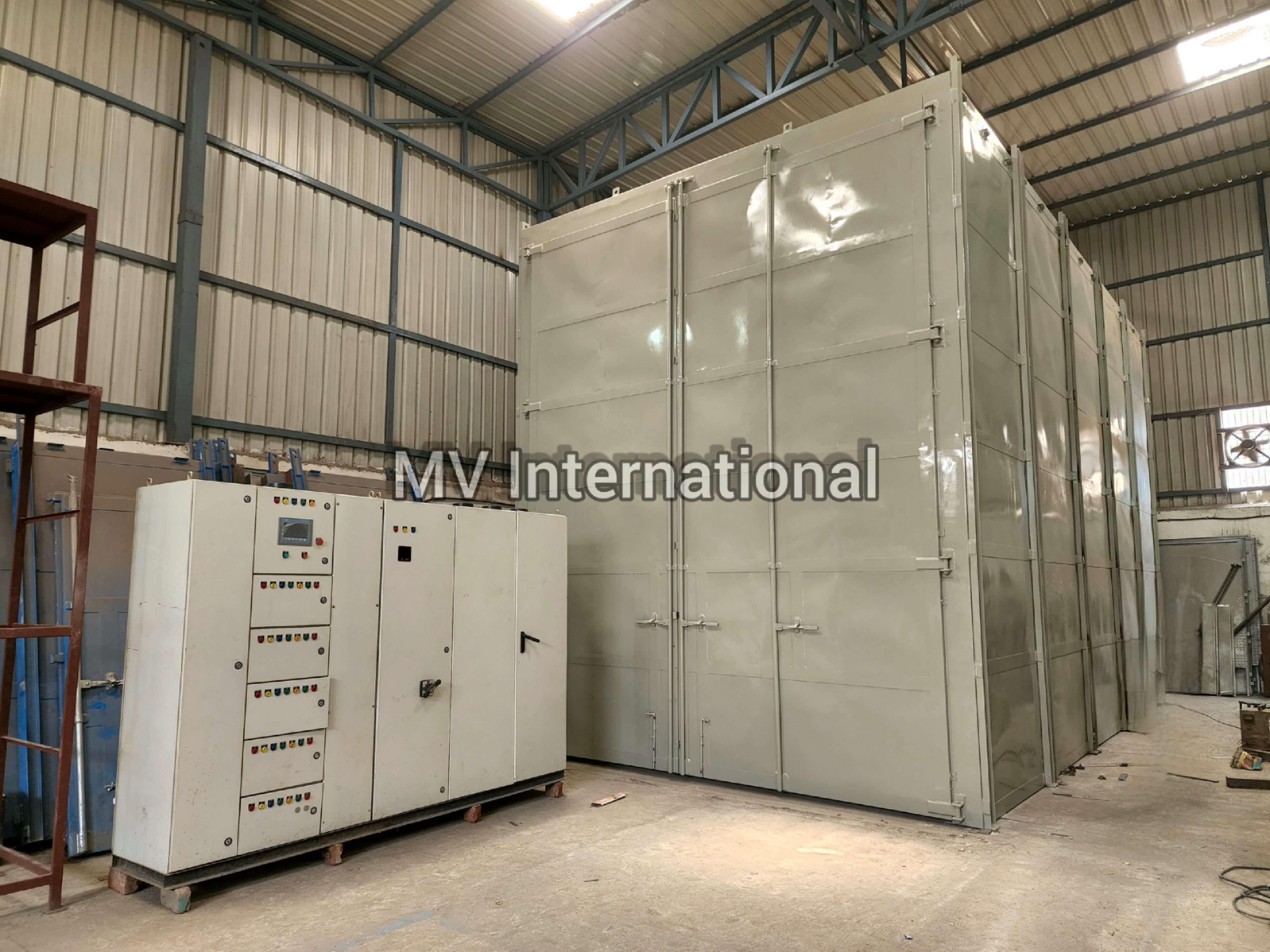

MV International builds walk-in ovens in modular insulated panels, so they can be sized to your parts and erected on site. Gas-fired and electric versions are available, and heaters and blowers can be mounted on the roof to save floor space.
Key Features of Our Walk-In Oven
- Modular insulated panel construction erected on site
- Floor-level entry for trolleys and carts, or overhead rail entry
- Gas-fired, diesel or electric heating
- Roof- or side-mounted heater/blower packages
- Uniform vertical or horizontal air flow for large loads
- Safety door release from inside and door interlocks
Walk-In Oven Applications
- Powder coating cure for large fabrications
- Wet paint drying
- Composite and adhesive curing
- Preheating large castings and dies
- Transformer and motor drying
- Bulk drying of materials on trolleys
How the Walk-In Oven Works
Parts are rolled in on trolleys or rails, and the doors are closed. Heated air from roof- or side-mounted heater boxes is ducted through the walk-in chamber at high volume, so that large and heavy loads reach the set temperature evenly.
Walk-In Oven Technical Specifications
| Size of the working chamber | As per client requirement. |
|---|---|
| Material of construction | Mild Steel, Stainless Steel 304 / 316 or any. |
| Temperature Range | Ambient to 150°C / 250°C / 400°C / 500°C. |
| Air circulation | Vertical, Horizontal or Combination. High Volume and high Velocity Airflow provides twice the air changes compared to ordinary Industrial Ovens. |
| Timer | Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds |
| Paint | Enamel Paint / Epoxy Coating / Powder Coated. |
| Power supply | 230 Volts Single Phase 50Hz / 60Hz 415 Volts 3 Phase 50Hz / 60Hz |
| Heating Elements | Low wattage Incoloy sheathed heating elements / SS Tubular |
| Insulation | Ceramic Wool / Mineral Wool |
| Door Gasket | Fibreglass Rope (High Temp) / Silicone Gasket. |
| Heavy Duty Shelves / Trays | Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven. |
| Exhaust Manual or Automatic | Automatic forced exhaust system with fresh air inlet. Manually adjustable damper with fresh air inlet. |
| Heating Media | Electric / Gas / Diesel / Steam / Thermic OIL etc. |
Optional Features
| Temperature Control | PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy. The programming of PID can vary from 4 to 50 programmes. |
|---|---|
| Temperature Recorder | Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder. |
| PLC With HMI | PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI. |
| SCADA System | High quality integration and controlling system from one point can be done with SCADA. |
| Door | A. Door interlocking system will switch off the blower and the heating system if the oven doors are open B. Doors on both ends C. Vertical lift door |
| Fumes Outlet | Forced exhaust blower |
| Windows and lights | A. Viewing window B. Interior lights and Access ports for calibration C. Oven on switch- Illuminated D. Heat on switch- Illuminated |
| Timer and Alarm | A. 24/7 timer B. Audible/visual alarm indicators |
Walk-In Oven Manufacturer, Supplier & Exporter
Walk-In Oven Manufacturer in India
MV International is an ISO 9001:2015 certified walk-in oven manufacturer with more than 35 years of experience in industrial heating. Fabrication, insulation, electrical panel building and testing are done in-house at Bahadurgarh, Haryana, which lets us control quality and delivery time. Each walk-in oven is built to your load, process temperature (up to 500°C) and floor space rather than picked from a catalogue.
Walk-In Oven Supplier
Looking for a reliable walk-in oven supplier? We have supplied ovens to powder coaters, fabricators, transformer and composite manufacturers and to OEMs and job shops in every major industrial state of India. You get one point of contact for design, manufacturing, delivery, installation and service, with heaters, blowers and controllers available from stock.
Walk-In Oven Exporter
MV International is also an established walk-in oven exporter. We ship to the Middle East, Africa, South and South-East Asia, Europe and the Americas, including United States, Bangladesh, Sri Lanka, Kenya and South Africa. Export ovens are built for the local supply voltage and frequency (50 Hz or 60 Hz), packed in seaworthy wooden crates and sent with complete documentation.
Why Buy from MV International?
- In-house design and manufacturing since 1989, ISO 9001:2015 certified
- Custom chamber sizes, temperatures up to 500°C and electric, gas, diesel or steam heating
- Uniform air flow with high-volume blowers and PID/PLC temperature control
- Every oven is trial-run and tested before dispatch
- Installation, training, spares and after-sales service across India and abroad
Walk-In Oven FAQs
How big can a walk-in oven be?
We build walk-in ovens from about 1.5 m x 1.5 m x 2 m up to large drive-in rooms, depending on your parts and production volume.
Gas or electric - which is better for a walk-in oven?
Gas or diesel is often cheaper to run for large ovens. Electric gives precise control and needs no fuel line. We compare both for your site.
Is there a safety release inside the walk-in oven?
Yes. Walk-in ovens include an inside door release, an emergency stop and door interlocks for personnel safety.
What is the price of a Walk-In Oven?
The price of a walk-in oven depends on chamber size, maximum temperature, heating media (electric, gas, diesel or steam), material of construction and the control system. Share your load details, process temperature and cycle time, and MV International will send a detailed quotation, usually within 24 hours.
Can you supply the Walk-In Oven to buyers abroad?
Yes. Along with supplying all over India, we export the walk-in oven to the Middle East, Africa, Asia, Europe and the Americas. Ovens are built for your local power supply and shipped with complete documentation and commissioning support.
Need a walk-in oven? Send your part size, process details and production rate to sales@industrialoven.com or call +91 97182 90000. Our engineers will suggest the right model and send a quotation.
