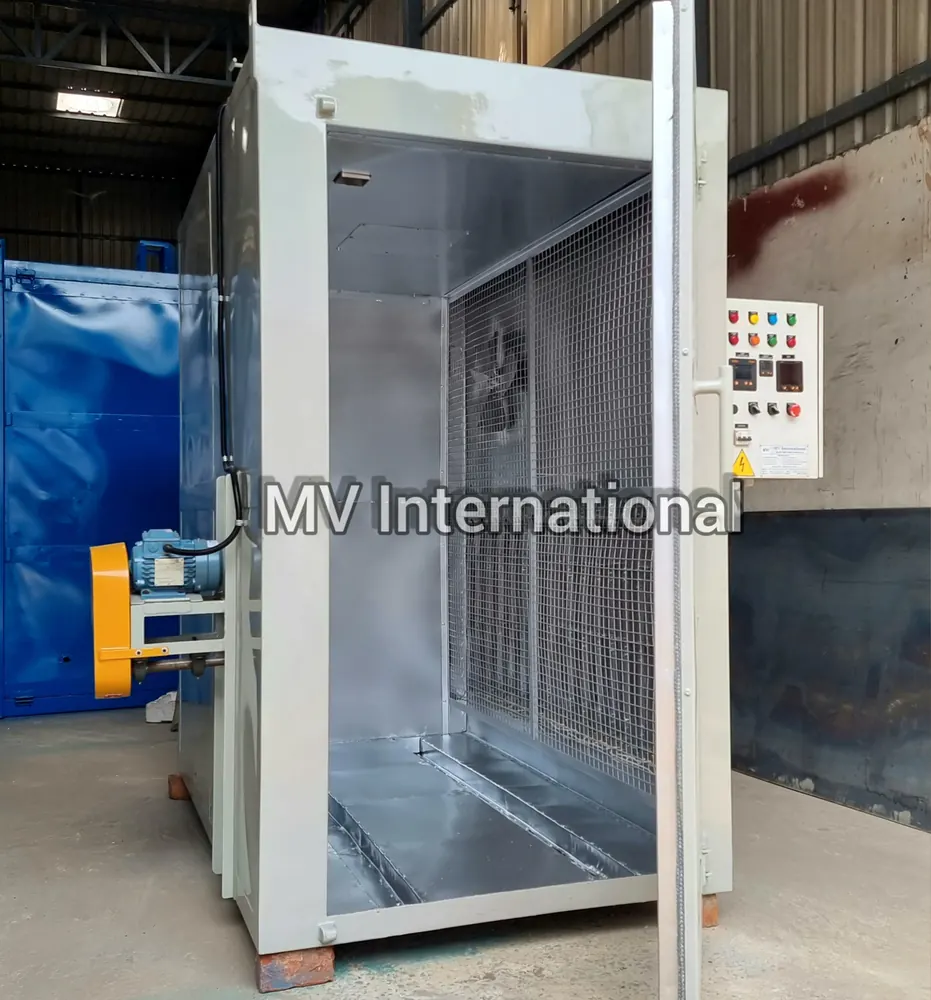

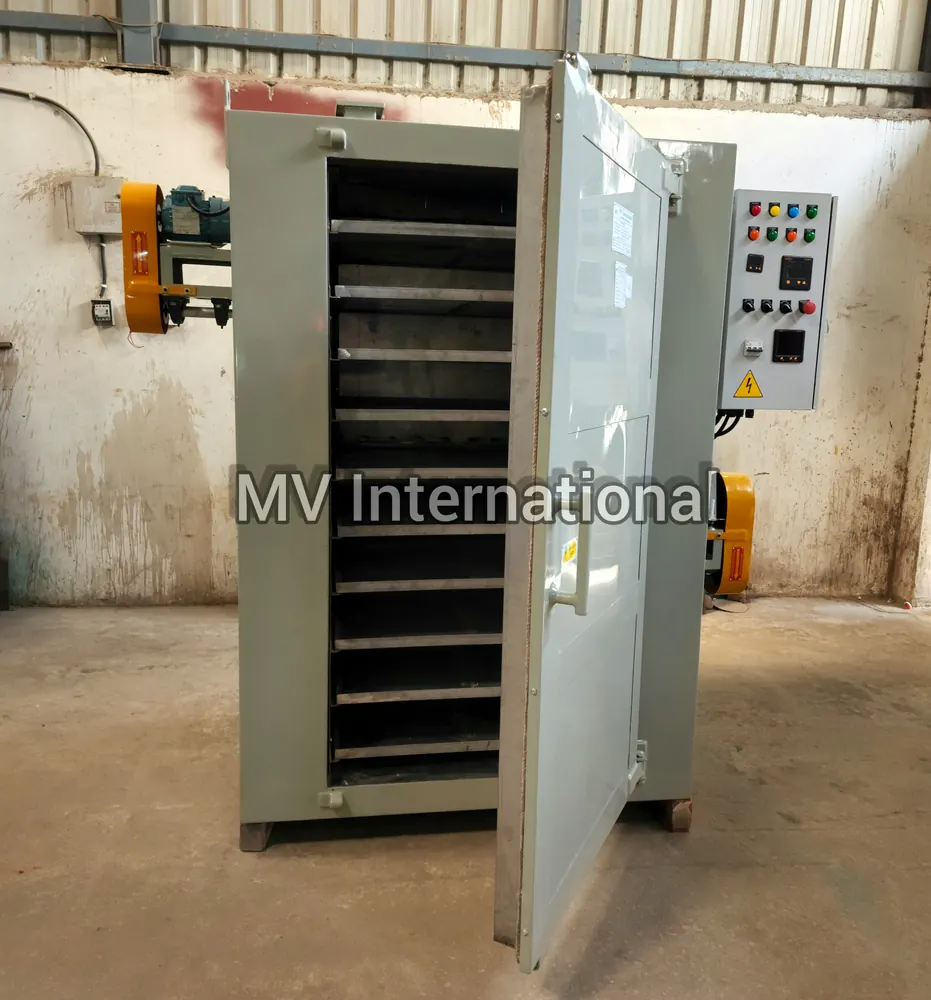

Heating Oven

Heating Oven – How Effective This Oven is and How It Performs


MV International has launched heating ovens, which are warming gadgets of different measurements that rely on the requirements of a project. A liquid evaporator warms the radiators placed inside the oven. The insulation arrangement of high thickness empowers a framework proficiency of 100%. Temperature guidelines of a heating oven are completely programmed by utilizing a chip controller, accomplishing high strength and precision. The standard working range of temperature in our heating ovens is from 30 to 300°C.

Heating is performed by both radiation and convection which encourage the transmission of warmth to various parts organized inside the heater. This heating oven has hardware that has pivoted exits with mechanized arms and programmed opening and shutting. The exits are given gaskets for fixing and manual shutting with micro switches to avert warming while open. Likewise, the framework has an audible security system and manual reset feature.

It has a battery to provide warm air to the heating oven (warm oil-air heat exchanger) by using a spout that is heated from above and underneath. A few air conveyers made carbon steel plate are present alongside. Backing and anchorage are organized on a suspended structure that encourages direct expansion.


SPECIFICATION :

Size of the working chamber As per client requirement.
Material of construction Mild Steel, Stainless Steel 304 / 316 or any.
Temperature Range Ambient to 1500C / 2500C / 4000C / 5000C.
Air circulation Vertical, Horizontal or Combination.
High Volume and high Velocity Airflow provides twice the air changes compare to ordinary Industrial Ovens.
Timer Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds
Paint Enamel Paint / Epoxy Coating / Powder Coated.
Power supply 230 Volts Single Phase 50Hz / 60Hz
415 Volts 3 Phase 50Hz / 60Hz
Heating Elements Low wattage Incoloy sheathed heating elements / SS Tubular
Insulation Ceramic Wool / Mineral Wool
Door Gasket Fibre Glass Rope (High Temp) / Silicon Gasket.
Heavy Duty Shelves / Trays Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven.
Exhaust Manual or Automatic Automatic forced exhaust system with fresh air inlet.
Manually adjustable damper with fresh air inlet.
Heating Media Electric / Gas / Diesel / Steam / Thermic OIL etc.

OPTIONAL FEATURES :

Temperature Control PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy.
The programming of PID can vary from 4 to 50 programmes.
Temperature Recorder Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder.
PLC With HMI PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI.
SCADA System High quality integration and controlling system from one point can be done with SCADA.
Door A. Door interlocking system will switch off the blower and the heating system if the oven doors are open
B. Doors on both ends
C. Vertical lift door
Fumes Outlet Forced exhaust blower
Windows and lights A. Viewing window
B. Interior lights and Access ports for calibration
C. Oven on switch- Illuminated
D. Heat on switch- Illuminated
Timer and Alarm A. 24/7 timer
B. Audible/visual alarm indicators
