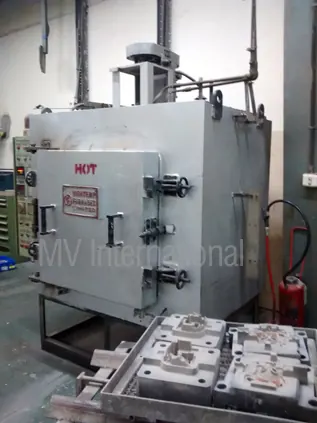

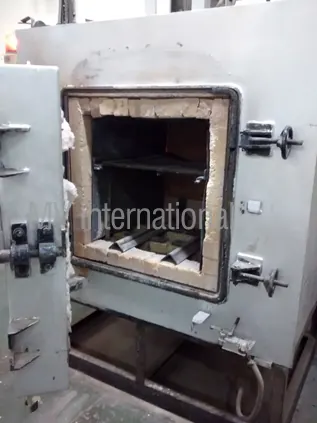

High Temperature Oven

High Temperature Oven – Ensure Safety and Quality Heating with the Best Power Rating!

The high-temperature ovens introduced by MV International are apt for your regular drying and baking purposes. A high temperature oven is capable of performing several complex procedures in gravity and mechanical convection styles. Once the door is open, the mechanical models perform quick recovery of temperature, while the heat models are known to work effectively on materials that are sensitive towards airflow.

The fact that a high temperature oven comes with practical as well as functional equipment makes it simple to use for many and also boast of reasonable rates in comparison with the furnaces. High-temperature ovens come with proper insulation for maintaining uniform and stable heat that’s meant to bear with the ultimate heating conditions. You can have them in both the LED and analog display patterns.

The homogeneity and accuracy in the volume of a high temperature oven owe much to its strong ventilation. These ovens can acquire fast heating due to the presence of insulation with a low thermal mass. Their power optimization capability gets marked by their power rating.


Improving Heating Quality:

A few stainless steel sheaths are used for covering the tubular heating elements that are placed in line with the air blower. The heating elements of a high temperature oven are activated or deactivated with the help of a no-wear switch that follows a solid-state relaying function. Alongside our heating element, our heating speed gets improved by the insulation. Heat gets trapped within the chamber if the oven is properly insulated. It will help you save much if the energy cost.


The Means to Ensure Safety and Control Temperature:

We have introduced a microprocessor-based controller for controlling the temperature. It controls the temperature and yields high accuracy. The real values of temperature are displayed by this digital controller. Being a top-rated high temperature oven manufacturer, we have even ensured extra protection using another electronic controller with an additional thermocouple.


Ensuring air Circulation with an Internal Fan:

The ovens ensure a proper air circulation with the help of the fan. The heating time gets faster due to the airflow and ensures an even temperature distribution inside the oven. At the top, you have the centrifugal blower that uses a stainless steel baffle to cover it from the workspace. The fan sucks the air and blows it on the working volume once it gets past the temperature sensor and the heating elements.

MV International has been a leading high temperature oven manufacturer that supports the Aerospace industry with high-temperature ovens. These ovens can acquire temperatures of up to 500°C and come with multiple applications.


SPECIFICATION :

Size of the working chamber As per client requirement.
Material of construction Mild Steel, Stainless Steel 304 / 316 or any.
Temperature Range Ambient to 1500C / 2500C / 4000C / 5000C.
Air circulation Vertical, Horizontal or Combination.
High Volume and high Velocity Airflow provides twice the air changes compare to ordinary Industrial Ovens.
Timer Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds
Paint Enamel Paint / Epoxy Coating / Powder Coated.
Power supply 230 Volts Single Phase 50Hz / 60Hz
415 Volts 3 Phase 50Hz / 60Hz
Heating Elements Low wattage Incoloy sheathed heating elements / SS Tubular
Insulation Ceramic Wool / Mineral Wool
Door Gasket Fibre Glass Rope (High Temp) / Silicon Gasket.
Heavy Duty Shelves / Trays Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven.
Exhaust Manual or Automatic Automatic forced exhaust system with fresh air inlet.
Manually adjustable damper with fresh air inlet.
Heating Media Electric / Gas / Diesel / Steam / Thermic OIL etc.

OPTIONAL FEATURES :

Temperature Control PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy.
The programming of PID can vary from 4 to 50 programmes.
Temperature Recorder Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder.
PLC With HMI PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI.
SCADA System High quality integration and controlling system from one point can be done with SCADA.
Door A. Door interlocking system will switch off the blower and the heating system if the oven doors are open
B. Doors on both ends
C. Vertical lift door
Fumes Outlet Forced exhaust blower
Windows and lights A. Viewing window
B. Interior lights and Access ports for calibration
C. Oven on switch- Illuminated
D. Heat on switch- Illuminated
Timer and Alarm A. 24/7 timer
B. Audible/visual alarm indicators
