Bearing Heating Oven Manufacturer, Supplier & Exporter
A bearing heating oven heats bearings, gears, couplings and rings uniformly so that they expand and can be shrink-fitted onto shafts without pressing. Oven heating is gentle and even, so it does not create the local hot spots or magnetisation that some other methods can cause.

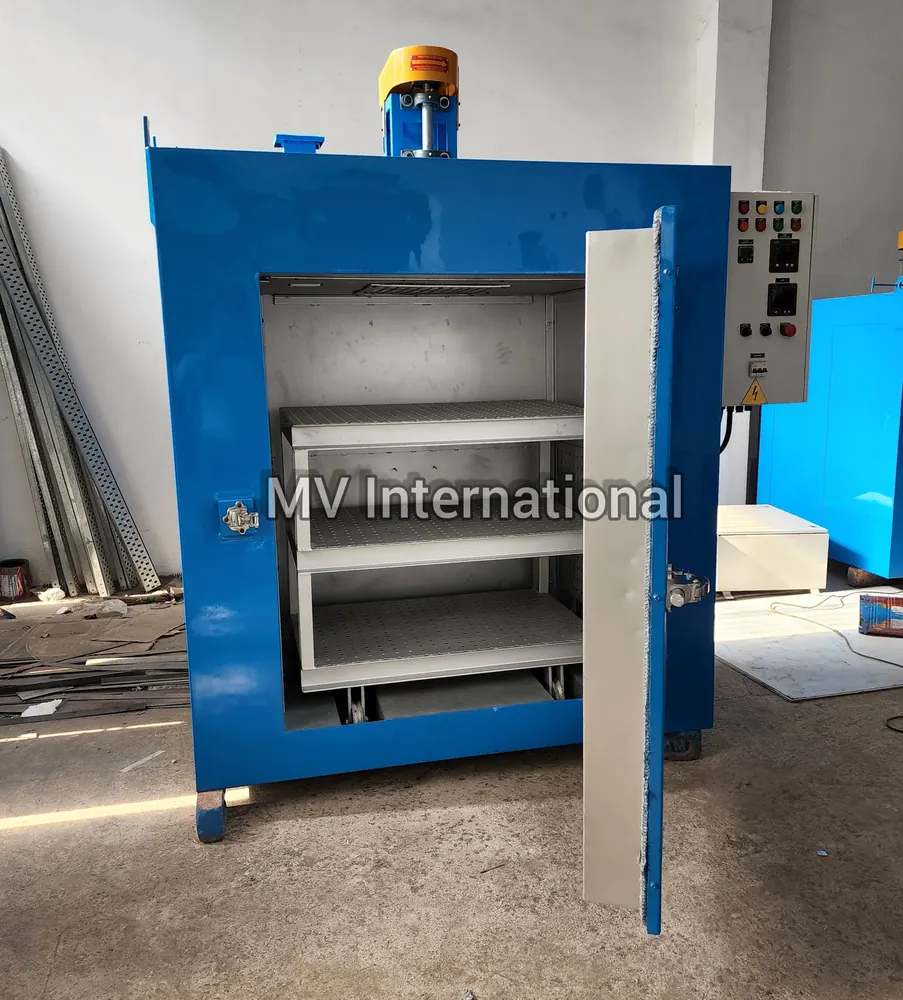

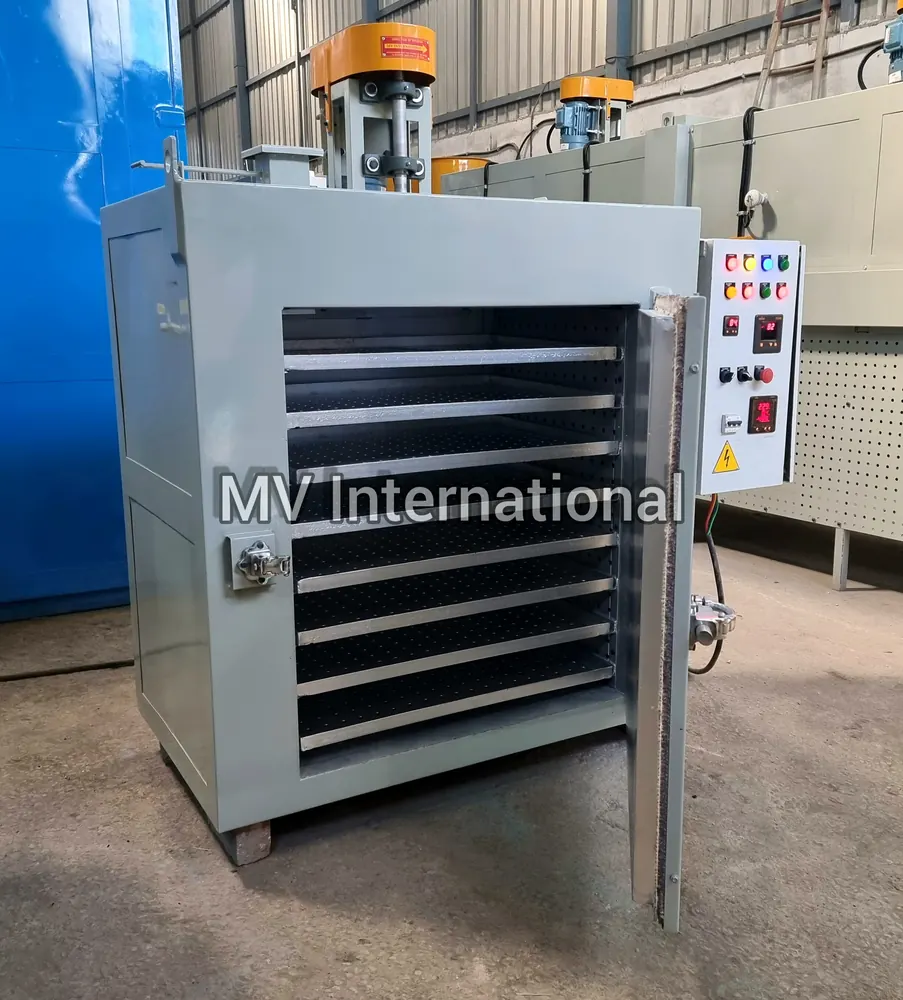

MV International bearing ovens handle many bearings at once, of any size and shape. They have heavy-gauge steel construction, customised shelving and a choice of analog thermostat or PID microprocessor control, at an economical price.
Key Features of Our Bearing Heating Oven
- Large capacity for many bearings in one batch
- Heavy-gauge steel construction
- Customised shelving for bearing sizes
- Analog thermostat or digital PID control
- Typical working range up to 120-150°C
- Even heating with no magnetisation of parts
Bearing Heating Oven Applications
- Shrink fitting rolling bearings on shafts
- Heating gears and pinions for assembly
- Couplings and bushes
- Rings, sleeves and collars
- Maintenance and overhaul of motors and gearboxes
- Railway and heavy-equipment bearing fitting
How the Bearing Heating Oven Works
Bearings are placed on shelves and heated by circulating hot air to the mounting temperature, usually about 80-120°C above ambient. Once soaked, they are removed with gloves and slid onto the shaft before they cool.
Bearing Heating Oven Technical Specifications
| Size of the working chamber | As per client requirement. |
|---|---|
| Material of construction | Mild Steel, Stainless Steel 304 / 316 or any. |
| Temperature Range | Ambient to 150°C / 250°C / 400°C / 500°C. |
| Air circulation | Vertical, Horizontal or Combination. High Volume and high Velocity Airflow provides twice the air changes compared to ordinary Industrial Ovens. |
| Timer | Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds |
| Paint | Enamel Paint / Epoxy Coating / Powder Coated. |
| Power supply | 230 Volts Single Phase 50Hz / 60Hz 415 Volts 3 Phase 50Hz / 60Hz |
| Heating Elements | Low wattage Incoloy sheathed heating elements / SS Tubular |
| Insulation | Ceramic Wool / Mineral Wool |
| Door Gasket | Fibreglass Rope (High Temp) / Silicone Gasket. |
| Heavy Duty Shelves / Trays | Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven. |
| Exhaust Manual or Automatic | Automatic forced exhaust system with fresh air inlet. Manually adjustable damper with fresh air inlet. |
| Heating Media | Electric / Gas / Diesel / Steam / Thermic OIL etc. |
Optional Features
| Temperature Control | PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy. The programming of PID can vary from 4 to 50 programmes. |
|---|---|
| Temperature Recorder | Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder. |
| PLC With HMI | PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI. |
| SCADA System | High quality integration and controlling system from one point can be done with SCADA. |
| Door | A. Door interlocking system will switch off the blower and the heating system if the oven doors are open B. Doors on both ends C. Vertical lift door |
| Fumes Outlet | Forced exhaust blower |
| Windows and lights | A. Viewing window B. Interior lights and Access ports for calibration C. Oven on switch- Illuminated D. Heat on switch- Illuminated |
| Timer and Alarm | A. 24/7 timer B. Audible/visual alarm indicators |
Bearing Heating Oven Manufacturer, Supplier & Exporter
Bearing Heating Oven Manufacturer in India
We manufacture the bearing heating oven at our factory in M.I.E. Bahadurgarh, Haryana, using CNC-cut sheet metal, mineral or ceramic wool insulation and reliable control gear. As an experienced bearing heating oven manufacturer, we run every oven at its working temperature (up to 150°C) before dispatch and share the test results with you.
Bearing Heating Oven Supplier
As a bearing heating oven supplier, we deliver across India, including Delhi NCR, Haryana, Punjab, Uttar Pradesh, Gujarat, Maharashtra, Tamil Nadu, Karnataka, Telangana and West Bengal. Typical buyers are maintenance departments, gearbox and motor builders and railway workshops. We handle site installation and commissioning, operator training, spares and after-sales service.
Bearing Heating Oven Exporter
As a bearing heating oven exporter, we have delivered heating equipment to more than 50 countries, including Qatar, United States, Bangladesh, Sri Lanka and Kenya. Each export order includes voltage and frequency matching, CE-style safety interlocks on request, export-worthy packing, and remote or on-site commissioning support.
Why Buy from MV International?
- In-house design and manufacturing since 1989, ISO 9001:2015 certified
- Custom chamber sizes, temperatures up to 500°C and electric, gas, diesel or steam heating
- Uniform air flow with high-volume blowers and PID/PLC temperature control
- Every oven is trial-run and tested before dispatch
- Installation, training, spares and after-sales service across India and abroad
Bearing Heating Oven FAQs
To what temperature should bearings be heated?
Bearings are usually heated to about 80-110°C. Most manufacturers advise not to exceed 120°C for standard bearings, so check the bearing maker's guidance.
Why use an oven instead of an oil bath?
An oven is cleaner, safer and more uniform, and it can heat many bearings at once.
Can the oven heat large bearings?
Yes. Shelving and floor loading are designed around your largest bearing size and weight.
What is the price of a Bearing Heating Oven?
The price of a bearing heating oven depends on chamber size, maximum temperature, heating media (electric, gas, diesel or steam), material of construction and the control system. Share your load details, process temperature and cycle time, and MV International will send a detailed quotation, usually within 24 hours.
Can you supply the Bearing Heating Oven to buyers abroad?
Yes. Along with supplying all over India, we export the bearing heating oven to the Middle East, Africa, Asia, Europe and the Americas. Ovens are built for your local power supply and shipped with complete documentation and commissioning support.
Need a bearing heating oven? Send your part size, process details and production rate to sales@industrialoven.com or call +91 97182 90000. Our engineers will suggest the right model and send a quotation.
