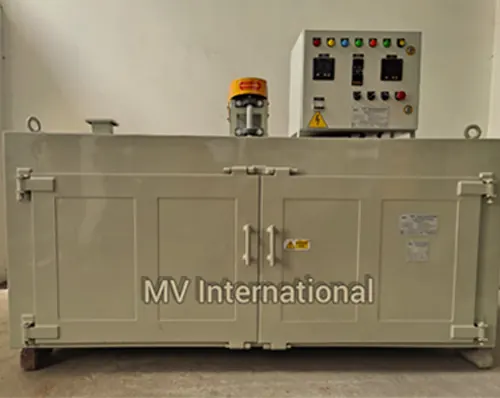

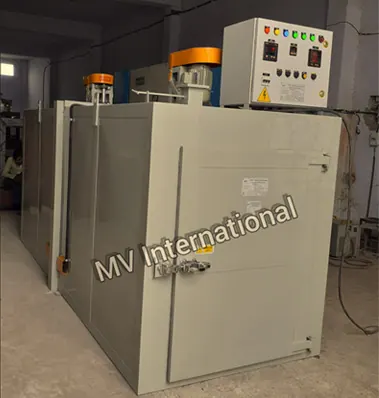

Ageing Oven

MV International has been the pioneer of several ageing ovens that possess numerous designs and are built in over 50 standard sizes. Such ovens can produce both high performance and quality performance based on consumer requirements. The standard rating that is there for the maximum temperature depicted by the Ageing Oven is around 500°F; the optional rating might pull it to 1,000°F on some occasions.

We may strive to obtain optimum part results and equip our consumers to maintain a uniform load configuration by assisting them in choosing efficient air-flow designs. We have seen increases in production rates for our Ageing Oven since the time we began maintaining a consistent temperature.


Our heavy-duty development enables us to provide our customers for years. We can assist in optimizing the floor space by curbing the machine footprint with the assistance of some roof-mounted elements. We have chosen the correct model for aluminum casts to withstand hardening worth high-quality with our time-tested ageing ovens. We have what it takes to alter different parts like the sheet metal, aluminum castings, and extrusions with the use of solutions.

We opt for the right profiles for obtaining rare mechanical quality and best kind of properties. Our Aluminum ageing oven offers automatic control systems that ensure a fine control over temperature and voltage relying on the requirements of the heating elements. We need to ensure uniform heating of the profiles within the oven for a preset period. That’s the reason why we put uniform quality and strength for our Ageing Oven.

SPECIFICATION :

Size of the working chamber As per client requirement.
Material of construction Mild Steel, Stainless Steel 304 / 316 or any.
Temperature Range Ambient to 1500C / 2500C / 4000C / 5000C.
Air circulation Vertical, Horizontal or Combination.
High Volume and high Velocity Airflow provides twice the air changes compare to ordinary Industrial Ovens.
Timer Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds
Paint Enamel Paint / Epoxy Coating / Powder Coated.
Power supply 230 Volts Single Phase 50Hz / 60Hz
415 Volts 3 Phase 50Hz / 60Hz
Heating Elements Low wattage Incoloy sheathed heating elements / SS Tubular
Insulation Ceramic Wool / Mineral Wool
Door Gasket Fibre Glass Rope (High Temp) / Silicon Gasket.
Heavy Duty Shelves / Trays Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven.
Exhaust Manual or Automatic Automatic forced exhaust system with fresh air inlet.
Manually adjustable damper with fresh air inlet.
Heating Media Electric / Gas / Diesel / Steam / Thermic OIL etc.

OPTIONAL FEATURES :

Temperature Control PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy.
The programming of PID can vary from 4 to 50 programmes.
Temperature Recorder Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder.
PLC With HMI PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI.
SCADA System High quality integration and controlling system from one point can be done with SCADA.
Door A. Door interlocking system will switch off the blower and the heating system if the oven doors are open
B. Doors on both ends
C. Vertical lift door
Fumes Outlet Forced exhaust blower
Windows and lights A. Viewing window
B. Interior lights and Access ports for calibration
C. Oven on switch- Illuminated
D. Heat on switch- Illuminated
Timer and Alarm A. 24/7 timer
B. Audible/visual alarm indicators
