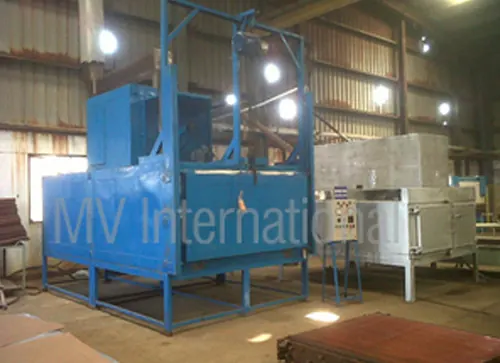

Radiator Core Baking Oven

Carry Out Fabricating & Metalworking Process Smoothly With Radiator Core Baking Oven!


MV International provides a complete variety of batch type including conveyor type radiator core baking oven including a variety of heating mechanisms from Electrical / Diesel / Gas. We have completed extensive analysis in the domain of radiator core baking plus have advanced Radiator Core Baking Ovens to accommodate the precise specification concerning radiator core manufacturing.

Our radiator core baking ovens are triumphantly working in India including abroad.


Radiator Core Baking Oven - Best Heating Solution for Fabricating

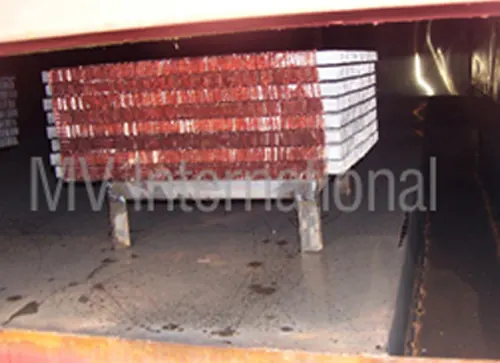

The purpose concerning a Radiator Core Baking Oven signifies to link copper-brass radiators including heat exchangers. The Core Bake Oven is accessible in both of the Batch or Continuous Conveyor form. Including the batch means (large centres or low amount), the cores remain fixed onto the carriage. The carriage is filled manually, or automatically, within the oven. The preparation time is measured by a sequence timer to assure precise bonding.

By the constant method (high volume generation), the centres are fixed upon the conveyor arrangement (belt or chain) and normally conveyed within the oven. The preparation time is regulated by the belt speed which assures proper bonding occurs in place. The method can be combined with additional equipment comprising blow-offs, fluxes, and squaring fixtures.

SPECIFICATION :

Size of the working chamber As per client requirement.
Material of construction Mild Steel, Stainless Steel 304 / 316 or any.
Temperature Range Ambient to 1500C / 2500C / 4000C / 5000C.
Air circulation Vertical, Horizontal or Combination.
High Volume and high Velocity Airflow provides twice the air changes compare to ordinary Industrial Ovens.
Timer Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds
Paint Enamel Paint / Epoxy Coating / Powder Coated.
Power supply 230 Volts Single Phase 50Hz / 60Hz
415 Volts 3 Phase 50Hz / 60Hz
Heating Elements Low wattage Incoloy sheathed heating elements / SS Tubular
Insulation Ceramic Wool / Mineral Wool
Door Gasket Fibre Glass Rope (High Temp) / Silicon Gasket.
Heavy Duty Shelves / Trays Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven.
Exhaust Manual or Automatic Automatic forced exhaust system with fresh air inlet.
Manually adjustable damper with fresh air inlet.
Heating Media Electric / Gas / Diesel / Steam / Thermic OIL etc.

OPTIONAL FEATURES :

Temperature Control PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy.
The programming of PID can vary from 4 to 50 programmes.
Temperature Recorder Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder.
PLC With HMI PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI.
SCADA System High quality integration and controlling system from one point can be done with SCADA.
Door A. Door interlocking system will switch off the blower and the heating system if the oven doors are open
B. Doors on both ends
C. Vertical lift door
Fumes Outlet Forced exhaust blower
Windows and lights A. Viewing window
B. Interior lights and Access ports for calibration
C. Oven on switch- Illuminated
D. Heat on switch- Illuminated
Timer and Alarm A. 24/7 timer
B. Audible/visual alarm indicators
