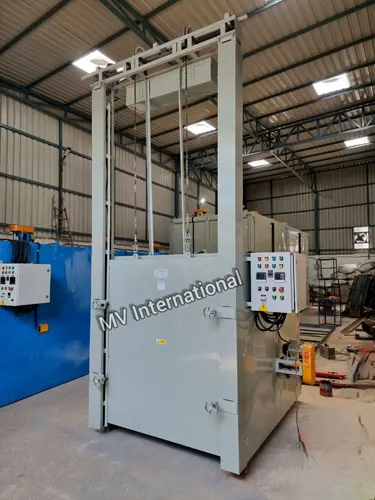

Paint Curing Oven Manufacturer, Supplier & Exporter
A paint curing oven is a heated chamber in which painted parts are baked so that the paint dries, cross-links and develops full hardness, adhesion and gloss. It is used for wet paints, enamels and powder coatings on metal, plastic and wood components.
MV International paint curing ovens are available as batch, walk-in and conveyor (tunnel) ovens. They can be heated by electricity, gas, diesel or infrared, and they give a durable, flawless finish because temperature is uniform across every part.
Key Features of Our Paint Curing Oven
- Batch, walk-in or conveyor tunnel designs
- Electric, gas, diesel or infrared heating
- Uniform air flow to avoid under- or over-cure
- Filtered air inlets to keep dust off wet paint
- Solvent exhaust for wet paints
- Temperatures up to 250°C (higher on request)
Paint Curing Oven Applications
- Automotive and two-wheeler parts
- Steel furniture and cabinets
- Electrical panels and enclosures
- Agricultural equipment
- Fabricated structures
- Appliance parts
How the Paint Curing Oven Works
Painted parts are first held at a lower temperature so that solvents flash off, then raised to the cure temperature for the time stated on the paint data sheet. Hot air is circulated uniformly while exhaust removes solvent vapours.
Paint Curing Oven Technical Specifications
| Size of the working chamber | As per client requirement. |
|---|---|
| Material of construction | Mild Steel, Stainless Steel 304 / 316 or any. |
| Temperature Range | Ambient to 150°C / 250°C / 400°C / 500°C. |
| Air circulation | Vertical, Horizontal or Combination. High Volume and high Velocity Airflow provides twice the air changes compared to ordinary Industrial Ovens. |
| Timer | Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds |
| Paint | Enamel Paint / Epoxy Coating / Powder Coated. |
| Power supply | 230 Volts Single Phase 50Hz / 60Hz 415 Volts 3 Phase 50Hz / 60Hz |
| Heating Elements | Low wattage Incoloy sheathed heating elements / SS Tubular |
| Insulation | Ceramic Wool / Mineral Wool |
| Door Gasket | Fibreglass Rope (High Temp) / Silicone Gasket. |
| Heavy Duty Shelves / Trays | Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven. |
| Exhaust Manual or Automatic | Automatic forced exhaust system with fresh air inlet. Manually adjustable damper with fresh air inlet. |
| Heating Media | Electric / Gas / Diesel / Steam / Thermic OIL etc. |
Optional Features
| Temperature Control | PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy. The programming of PID can vary from 4 to 50 programmes. |
|---|---|
| Temperature Recorder | Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder. |
| PLC With HMI | PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI. |
| SCADA System | High quality integration and controlling system from one point can be done with SCADA. |

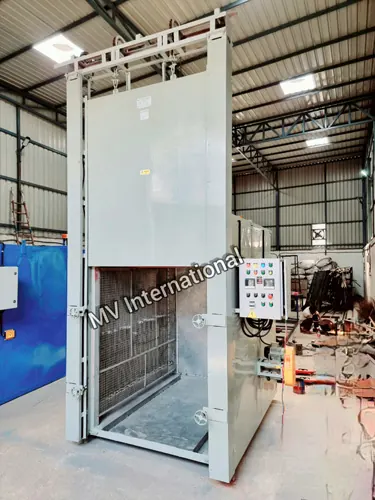

| Door | A. Door interlocking system will switch off the blower and the heating system if the oven doors are open B. Doors on both ends C. Vertical lift door |
| Fumes Outlet | Forced exhaust blower |
| Windows and lights | A. Viewing window B. Interior lights and Access ports for calibration C. Oven on switch- Illuminated D. Heat on switch- Illuminated |
| Timer and Alarm | A. 24/7 timer B. Audible/visual alarm indicators |
Paint Curing Oven Manufacturer, Supplier & Exporter
Paint Curing Oven Manufacturer in India
As a paint curing oven manufacturer in India since 1989, MV International designs and builds every unit at our own works in Bahadurgarh, Haryana, close to Delhi NCR. Our engineers size the chamber, heater load and air-flow pattern to your actual load, so the oven reaches 500°C evenly and holds it within a tight band. Every paint curing oven is assembled, wired and trial-run at our plant before dispatch.
Paint Curing Oven Supplier
MV International supplies the paint curing oven to automotive, furniture, electrical and fabrication companies all over India. Industrial clusters we serve regularly include Gurugram, Faridabad, Noida, Ludhiana, Ahmedabad, Vadodara, Pune, Chennai, Bengaluru, Hyderabad and Kolkata. With every oven we provide a manual, wiring diagram, spares list and quick service support.
Paint Curing Oven Exporter
Overseas buyers source the paint curing oven from us because we combine Indian manufacturing costs with export-quality construction. Regular destinations include Oman, United Kingdom, Nepal, Nigeria and Egypt. We build to your local power supply, quote FOB or CIF, and supply documentation, spares and remote support.
Why Buy from MV International?
- In-house design and manufacturing since 1989, ISO 9001:2015 certified
- Custom chamber sizes, temperatures up to 500°C and electric, gas, diesel or steam heating
- Uniform air flow with high-volume blowers and PID/PLC temperature control
- Every oven is trial-run and tested before dispatch
- Installation, training, spares and after-sales service across India and abroad
Paint Curing Oven FAQs
What temperature is used to cure paint?
Stoving enamels typically cure at 120-160°C and powder coatings at 160-200°C. Follow the paint supplier's data sheet.
Batch or conveyor paint oven?
Batch ovens suit mixed and lower-volume work. Conveyor ovens suit continuous production lines.
Do you supply complete painting plants?
Yes. See our powder coating and painting plants.
How much does a Paint Curing Oven cost?
A paint curing oven is built to order, so the cost depends on the working size, temperature range, heating method and options such as PLC control or a temperature recorder. Send us your requirement on the enquiry page or call +91-9718290000 for a quick, no-obligation quotation.
Do you export the Paint Curing Oven outside India?
Yes. MV International is an experienced paint curing oven exporter. We ship to the UAE, Saudi Arabia, Qatar, Oman, Africa, South-East Asia, Europe and the Americas, with voltage and frequency matched to your country and seaworthy export packing.
Need a paint curing oven? Send your part size, process details and production rate to sales@industrialoven.com or call +91 97182 90000. Our engineers will suggest the right model and send a quotation.
