Water Wash Paint Booth Manufacturer, Supplier & Exporter

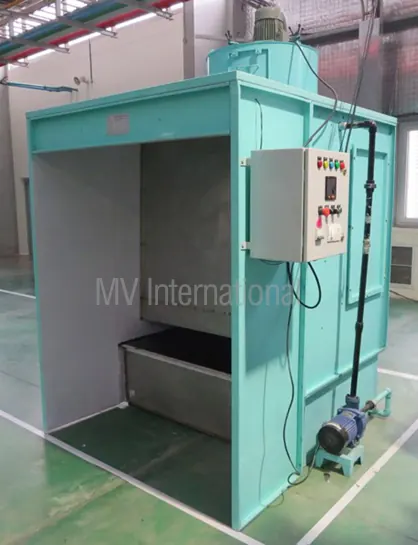

A water wash paint booth captures liquid paint overspray in a flowing curtain of water at the back of the booth. Paint particles are scrubbed out of the air before it is exhausted, which keeps the workplace cleaner and safer and protects the environment.
MV International water wash paint booths handle a wide range of paints and viscosities. Accurate water-flow control valves and micron-level filtration help them meet building, fire and health requirements. They are available in fully undershot and cross-flow types, with 2 HP to 10 HP exhaust.
Key Features of Our Water Wash Paint Booth
- Continuous water curtain overspray capture
- Fully undershot or cross-flow air pattern
- Exhaust capacity from 2 HP to 10 HP
- Accurate water-flow control valve
- Filtration down to about 3 microns
- MS or SS 304 construction
Water Wash Paint Booth Applications
- Liquid painting of automotive parts
- Metal industry and fabrication
- Furniture painting
- Machinery and equipment painting
- Appliance and panel painting
- High-volume spray painting lines
How the Water Wash Paint Booth Works
The exhaust fan draws air from the spray area towards the back panel, where water flows down in a continuous sheet. Overspray particles are trapped in the water and collected in a tank for removal, while the scrubbed air is exhausted.
Water Wash Paint Booth Technical Specifications
| Application | For Liquid Painting, Automobiles, Metal industry, Furniture etc. |
|---|---|
| Air-Flow Direction | Fully Undershot Type, Cross-Flow Type. |
| Capacity | 2 HP to 10 HP |
| Power Supply | 415 Volts AC 3 Phase 50 Hz |
| Outer Material | MS, SS 304 |
| Inner Material | MS, SS 304 |
| Advantages | Micron filtration Up to 3 microns. Accurate water flow control valve. |
Water Wash Paint Booth Manufacturer, Supplier & Exporter
Water Wash Paint Booth Manufacturer in India
As a water wash paint booth manufacturer in India since 1989, MV International builds every booth at its own works in Bahadurgarh, Haryana. Panels, plenums, filter frames and exhaust ducting are fabricated in-house, and the fan and filters are sized for the right face velocity, so overspray is captured without disturbing the spray pattern.
Water Wash Paint Booth Supplier
MV International supplies the water wash paint booth to automotive, furniture, fabrication and machinery manufacturers all over India. Industrial clusters we serve regularly include Gurugram, Faridabad, Noida, Ludhiana, Ahmedabad, Vadodara, Pune, Chennai, Bengaluru, Hyderabad and Kolkata. With every oven we provide a manual, wiring diagram, spares list and quick service support.
Water Wash Paint Booth Exporter
Overseas buyers source the water wash paint booth from us because we combine Indian manufacturing costs with export-quality construction. Regular destinations include UAE, Qatar, United States, Bangladesh and Sri Lanka. We build to your local power supply, quote FOB or CIF, and supply documentation, spares and remote support.
Why Buy from MV International?
- In-house design and manufacturing since 1989, ISO 9001:2015 certified
- Custom chamber sizes, temperatures up to 500°C and electric, gas, diesel or steam heating
- Uniform air flow with high-volume blowers and PID/PLC temperature control
- Every oven is trial-run and tested before dispatch
- Installation, training, spares and after-sales service across India and abroad
Water Wash Paint Booth FAQs
How does a water wash paint booth work?
Overspray-laden air passes through a water curtain that traps paint particles. The cleaned air is exhausted, and paint sludge is removed from the tank.
Water wash or dry booth - which is better?
Water wash booths suit high-volume liquid painting. Dry paint booths are simpler and suit lower volumes.
What exhaust capacity do I need?
It depends on booth face area and air velocity. Our booths range from 2 HP to 10 HP.
What is the price of a Water Wash Paint Booth?
The price of a water wash paint booth depends on booth size, air-flow type, exhaust capacity, filtration, lighting and material of construction. Share your largest part size, paint type and daily output, and MV International will send a detailed quotation, usually within 24 hours.
Do you export the Water Wash Paint Booth outside India?
Yes. MV International is an experienced water wash paint booth exporter. We ship to the UAE, Saudi Arabia, Qatar, Oman, Africa, South-East Asia, Europe and the Americas, with voltage and frequency matched to your country and seaworthy export packing.
Need a water wash paint booth? Send your part size, process details and production rate to sales@industrialoven.com or call +91 97182 90000. Our engineers will suggest the right model and send a quotation.
