Flux Heating Oven Manufacturer, Supplier & Exporter
A flux heating oven heats SAW flux uniformly to drive out moisture and keep it ready for welding. Heat reaches the flux by radiation, convection and conduction, and good air circulation makes sure every tray reaches the same temperature, which improves weld quality and keeps production moving.

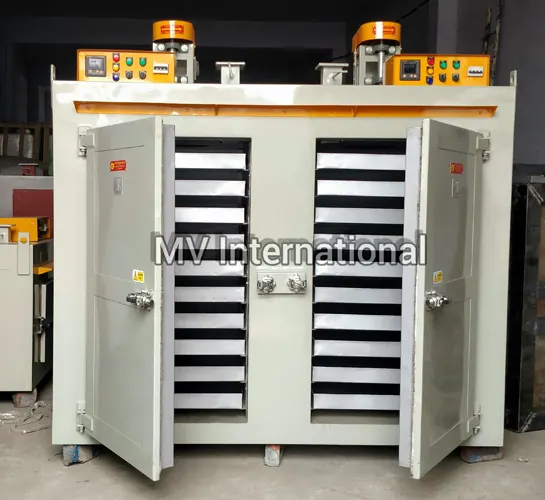

MV International flux heating ovens hold 300 kg on 10 trays, use a 1 HP, 1400 RPM blower and reach up to 400/500°C. They can be used for both baking and holding.
Key Features of Our Flux Heating Oven
- 300 kg capacity with 10 trays
- Ambient to 400°C / 500°C
- 1 HP blower for uniform heat transfer
- Digital temperature controller
- Enamel outer and aluminium-coated inner
- Baking and holding in one oven
Flux Heating Oven Applications
- SAW flux conditioning
- Pressure vessel welding
- Pipe and tube welding
- Structural fabrication
- Shipbuilding
- Boiler and heat exchanger shops
How the Flux Heating Oven Works
Flux on trays is heated by circulating hot air. Convection, radiation from the walls and conduction through the trays together bring the whole load to temperature, which is then held for the required time.
Flux Heating Oven Technical Specifications
| Application | Remove moisture from SMAW Flux before use |
|---|---|
| Capacity | 300 Kgs |
| Temperature Range | Ambient to - 400°C / 500°C. |
| Temperature Controller | Digital |
| Trays | 10 Nos |
| Air Circulation | 1 HP Blower 1400 RPM |
| Power Supply | 415 Volts AC 3 Phase 50 Hz |
| Outer Finish | Enamel Paint |
| Inner Paint | Aluminium coating high temp |
| Weight of equipment | 700-750 Kgs approx. |
| Advantages | Can use for baking and holding both |
Flux Heating Oven Manufacturer, Supplier & Exporter
Flux Heating Oven Manufacturer in India
MV International is an ISO 9001:2015 certified flux heating oven manufacturer with more than 35 years of experience in industrial heating. Fabrication, insulation, electrical panel building and testing are done in-house at Bahadurgarh, Haryana, which lets us control quality and delivery time. Each flux heating oven is built to your load, process temperature (up to 500°C) and floor space rather than picked from a catalogue.
Flux Heating Oven Supplier
Looking for a reliable flux heating oven supplier? We have supplied ovens to SAW welding shops and heavy fabricators and to OEMs and job shops in every major industrial state of India. You get one point of contact for design, manufacturing, delivery, installation and service, with heaters, blowers and controllers available from stock.
Flux Heating Oven Exporter
MV International is also an established flux heating oven exporter. We ship to the Middle East, Africa, South and South-East Asia, Europe and the Americas, including Nepal, Nigeria, Egypt, Indonesia and Saudi Arabia. Export ovens are built for the local supply voltage and frequency (50 Hz or 60 Hz), packed in seaworthy wooden crates and sent with complete documentation.
Why Buy from MV International?
- In-house design and manufacturing since 1989, ISO 9001:2015 certified
- Custom chamber sizes, temperatures up to 500°C and electric, gas, diesel or steam heating
- Uniform air flow with high-volume blowers and PID/PLC temperature control
- Every oven is trial-run and tested before dispatch
- Installation, training, spares and after-sales service across India and abroad
Flux Heating Oven FAQs
What capacity is the flux heating oven?
300 kg on 10 trays.
What temperatures are possible?
Up to 400°C or 500°C.
Which flux ovens do you offer?
50 kg holding, 100 kg drying, 200 kg baking, 300 kg heating and 500 kg welding flux ovens. See our SAW flux oven range.
How much does a Flux Heating Oven cost?
A flux heating oven is built to order, so the cost depends on the working size, temperature range, heating method and options such as PLC control or a temperature recorder. Send us your requirement on the enquiry page or call +91-9718290000 for a quick, no-obligation quotation.
Do you export the Flux Heating Oven outside India?
Yes. MV International is an experienced flux heating oven exporter. We ship to the UAE, Saudi Arabia, Qatar, Oman, Africa, South-East Asia, Europe and the Americas, with voltage and frequency matched to your country and seaworthy export packing.
Need a flux heating oven? Send your part size, process details and production rate to sales@industrialoven.com or call +91 97182 90000. Our engineers will suggest the right model and send a quotation.
