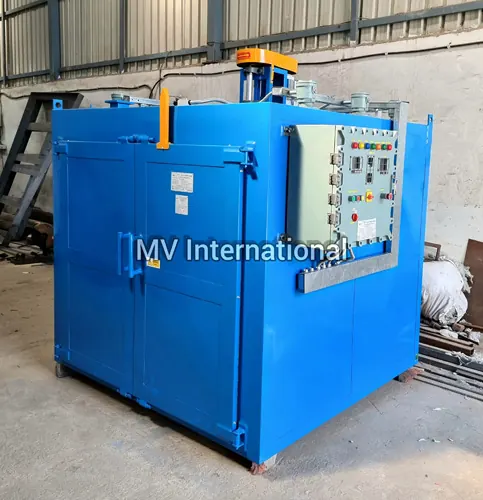

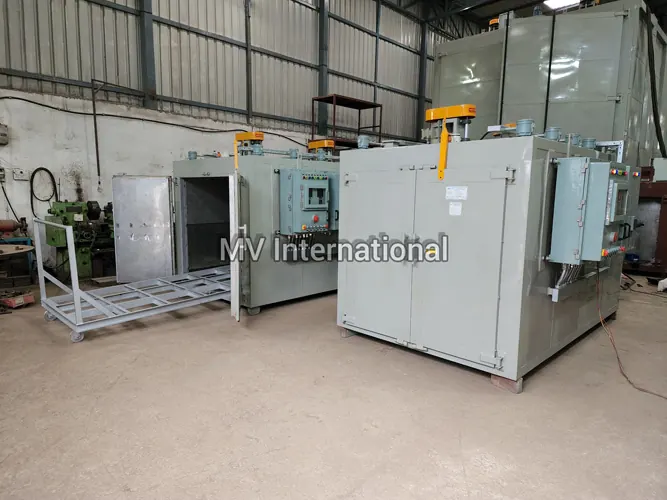

Flame Proof Drum Heating Oven
Advantages : Flameproof and explosion proof model specially designed for petroleum and chemical industries.
||1 Drum, 2 Drum, 4 Drum, 8 Drum and 16 Drum
|Material of construction
||Mild Steel, Stainless Steel 304 / 316 or any.
||Ambient to 1500C / 2500C / 4000C / 5000C.
||Vertical, Horizontal or Combination.
High Volume and high Velocity Airflow provides twice the air changes
compare to ordinary Industrial Ovens.
||Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds
||Enamel Paint / Epoxy Coating / Powder Coated.
||230 Volts Single Phase 50Hz / 60Hz
415 Volts 3 Phase 50Hz / 60Hz
||Low wattage Incoloy sheathed heating elements / SS Tubular
||Ceramic Wool / Mineral Wool
||Fibre Glass Rope (High Temp) / Silicon Gasket.
|Heavy Duty Shelves / Trays
||Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven.
|Exhaust Manual or Automatic
||Automatic forced exhaust system with fresh air inlet.
Manually adjustable damper with fresh air inlet.
||Electric / Gas / Diesel / Steam / Thermic OIL etc.
OPTIONAL FEATURES :
||PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy.
The programming of PID can vary from 4 to 50 programmes.
||Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder.
|PLC With HMI
||PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI.
||High quality integration and controlling system from one point can be done with SCADA.
||A. Door interlocking system will switch off the blower and the heating system if the oven doors are open
B. Doors on both ends
C. Vertical lift door
||Forced exhaust blower
|Windows and lights
||A. Viewing window
B. Interior lights and Access ports for calibration
C. Oven on switch- Illuminated
D. Heat on switch- Illuminated
|Timer and Alarm
||A. 24/7 timer
B. Audible/visual alarm indicators
