Clean room oven Manufacturers

MV International has received global recognition for being the leading provider of curing ovens within the electronics industry. We have already provided numerous industrial ovens to a wide network of clients that have entrusted their drying and heating requirements with us. We have succeeded in delivering a plethora of ovens while contributing to semiconductor packaging, flat panel display, and wafer fabrication at the front and back ends.

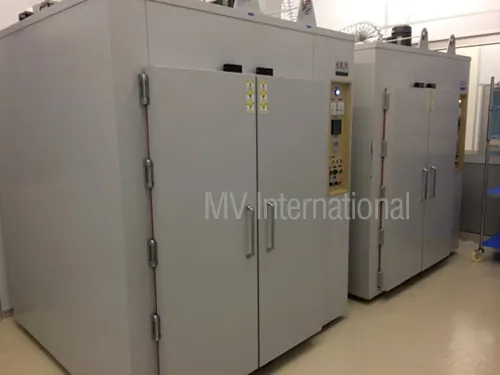

Among our high-end products, our clean room ovens bear specific characteristics that are necessary for clean-room work under high temperature. Besides assuring rapid heat recovery, our oven comes equipped with perforated stainless steel shelves and stainless steel interiors with welding. Both temperature and time get projected under two easily distinguishable digital LED displays that depict process proceedings up to the second or the set-point.

Our clean room ovens are made of a door steal made of silicon rubber that can withstand high temperature. They have an insulator worth 3.5 inches that’s wrapped-around for bearing high temperature. Once you start operating the oven at a temperature higher than 200° C, it might weaken the filter. Each unit has three adjustable exhaustion ducts and airflow ducts that could be removed and cleaned very easily. Both the re-circulated and room air can pass through these ducts very smoothly.

• SPECIFICATION

  Size of the working chamber	As per client requirement.
  Material of construction	Mild Steel, Stainless Steel 304 / 316 or any.
  Temperature Range	Ambient to 1500C / 2500C / 4000C / 5000C.
  Air circulation	Vertical, Horizontal or Combination. High Volume and high Velocity Airflow provides twice the air changes compare to ordinary Industrial Ovens.
  Timer	Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds
  Paint	Enamel Paint / Epoxy Coating / Powder Coated.
  Power supply	230 Volts Single Phase 50Hz / 60Hz 415 Volts 3 Phase 50Hz / 60Hz
  Heating Elements	Low wattage Incoloy sheathed heating elements / SS Tubular
  Insulation	Ceramic Wool / Mineral Wool
  Door Gasket	Fibre Glass Rope (High Temp) / Silicon Gasket.
  Heavy Duty Shelves / Trays	Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven.
  Exhaust Manual or Automatic	Automatic forced exhaust system with fresh air inlet. Manually adjustable damper with fresh air inlet.
  Heating Media	Electric / Gas / Diesel / Steam / Thermic OIL etc.

• OPTIONAL FEATURES

  Temperature Control	PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy. The programming of PID can vary from 4 to 50 programmes.
  Temperature Recorder	Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder.
  PLC With HMI	PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI.
  SCADA System	High quality integration and controlling system from one point can be done with SCADA.
  Door	A. Door interlocking system will switch off the blower and the heating system if the oven doors are open B. Doors on both ends C. Vertical lift door
  Fumes Outlet	Forced exhaust blower
  Windows and lights	A. Viewing window B. Interior lights and Access ports for calibration C. Oven on switch- Illuminated D. Heat on switch- Illuminated
  Timer and Alarm	A. 24/7 timer B. Audible/visual alarm indicators
