Gas Fired Electrode Baking Oven Manufacturer, Supplier & Exporter
A gas fired electrode baking oven is a high-capacity oven used by welding electrode manufacturers to bake the flux coating on newly extruded electrodes. Baking removes moisture and fixes the coating, and it is a critical step in electrode production.

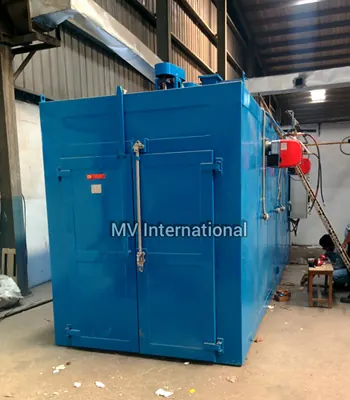

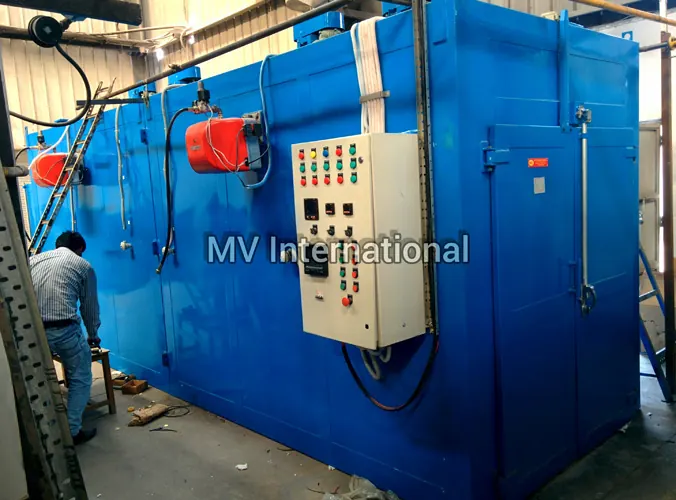

MV International gas fired electrode baking ovens come in capacities of 500 kg, 1,000 kg, 2,000 kg and more. A burner chamber on top, with air-circulation fans, forces heat down both side walls into the main chamber for consistent baking, and a trolley system makes loading and unloading easy. Electrical heating is also available.
Key Features of Our Gas Fired Electrode Baking Oven
- Capacities of 500 / 1,000 / 2,000 kg and more
- Gas fired or electrical heating
- Top-mounted burner chamber with side-wall air distribution
- Trolley system for easy loading and unloading
- Up to 300°C / 400°C / 500°C
- Digital control, enamel outer, aluminium-coated inner
Gas Fired Electrode Baking Oven Applications
- Welding electrode manufacturing
- Flux coating baking
- Large-scale electrode reconditioning
- Hard-facing electrode production
- Stainless and special electrode production
- Consumable manufacturers
How the Gas Fired Electrode Baking Oven Works
Trolleys of freshly extruded electrodes are pushed in. The gas burner in the top chamber heats air, which fans drive down the side walls and through the trolleys. The oven follows the electrode maker's baking profile and then cools for unloading.
Gas Fired Electrode Baking Oven Technical Specifications
| Application | Use for Welding Electrodes manufacturing industries. |
|---|---|
| Capacity | 500 Kgs / 1000 Kgs / 2000 Kgs etc. |
| Temperature Range | Ambient to -300°C / 400°C / 500°C. |
| Temperature Controller | Digital |
| Power Supply | 415 Volts AC 3 Phase 50 Hz |
| Outer Finish | Enamel Paint |
| Inner Paint | Aluminium coating high temp. |
| Heating Media | Electrical / GAS Fired |
Gas Fired Electrode Baking Oven Manufacturer, Supplier & Exporter
Gas Fired Electrode Baking Oven Manufacturer in India
MV International is an ISO 9001:2015 certified gas fired electrode baking oven manufacturer with more than 35 years of experience in industrial heating. Fabrication, insulation, electrical panel building and testing are done in-house at Bahadurgarh, Haryana, which lets us control quality and delivery time. Each gas fired electrode baking oven is built to your load, process temperature (up to 500°C) and floor space rather than picked from a catalogue.
Gas Fired Electrode Baking Oven Supplier
Looking for a reliable gas fired electrode baking oven supplier? We have supplied ovens to welding electrode manufacturers and to OEMs and job shops in every major industrial state of India. You get one point of contact for design, manufacturing, delivery, installation and service, with heaters, blowers and controllers available from stock.
Gas Fired Electrode Baking Oven Exporter
MV International is also an established gas fired electrode baking oven exporter. We ship to the Middle East, Africa, South and South-East Asia, Europe and the Americas, including Nepal, Nigeria, Egypt, Indonesia and Saudi Arabia. Export ovens are built for the local supply voltage and frequency (50 Hz or 60 Hz), packed in seaworthy wooden crates and sent with complete documentation.
Why Buy from MV International?
- In-house design and manufacturing since 1989, ISO 9001:2015 certified
- Custom chamber sizes, temperatures up to 500°C and electric, gas, diesel or steam heating
- Uniform air flow with high-volume blowers and PID/PLC temperature control
- Every oven is trial-run and tested before dispatch
- Installation, training, spares and after-sales service across India and abroad
Gas Fired Electrode Baking Oven FAQs
What capacity gas fired baking ovens do you make?
Standard sizes are 500 kg, 1,000 kg and 2,000 kg, and larger ovens are built to order.
Is electric heating also available?
Yes. The same design is available with electrical heating.
Why use gas for electrode baking?
For large daily output, gas usually costs less to run than electricity.
How much does a Gas Fired Electrode Baking Oven cost?
A gas fired electrode baking oven is built to order, so the cost depends on the working size, temperature range, heating method and options such as PLC control or a temperature recorder. Send us your requirement on the enquiry page or call +91-9718290000 for a quick, no-obligation quotation.
Do you export the Gas Fired Electrode Baking Oven outside India?
Yes. MV International is an experienced gas fired electrode baking oven exporter. We ship to the UAE, Saudi Arabia, Qatar, Oman, Africa, South-East Asia, Europe and the Americas, with voltage and frequency matched to your country and seaworthy export packing.
Need a gas fired electrode baking oven? Send your part size, process details and production rate to sales@industrialoven.com or call +91 97182 90000. Our engineers will suggest the right model and send a quotation.
