Garment Curing Oven – Your Best Bet for Wrinkle-Free Clothing

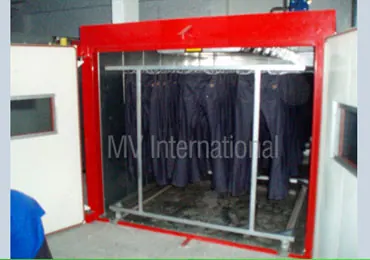

Garment Curing Ovens developed by MV International are truly meant for heating wrinkle-free garments on racks with a delicate vertical down-flow of air. In a Garment Curing Oven, the air is conveyed down from the roof to return plenums in the floor. Recessed tracks lying at the center of the returns take into account the client truck to be forwarded and contracted. Generating temperatures up to 500° F or as required, the Heater or blower compartment on the model is indicated in the top, keeping the need of floorspace to a minimal.

Garment Curing Oven – Your Best Bet for Wrinkle-Free Clothing

  • • Variable Speed Process Airflow Control (discretionary) for relieving assortment of pieces of clothing and textures
  • • 24-hour Temperature Chart Recorder discretionary
  • • Thoughtfully built for wellbeing and simplicity of upkeep
  • • Available in Gas or Electrical. Temperature control is ensured in the Garment curing oven to maintain close temperature resistance
  • • Gas Trains
  • • Stainless steel GI inside and outside dividers, roofs, and floor covering for expanded activity life
  • • Standard and hand-craft transport frameworks accessible
  • • Thoughtfully designed for security and simplicity of upkeep
  • • Cycle clock with caution to forestall over restoring or under relieving of pieces of clothing
  • • Safety Stop Switch to forestall activity when entryways are open
  • • Lockout or Tag-out coordinated exit separate switch


Size of the working chamber As per client requirement.
Material of construction Mild Steel, Stainless Steel 304 / 316 or any.
Temperature Range Ambient to 1500C / 2500C / 4000C / 5000C.
Air circulation Vertical, Horizontal or Combination.
High Volume and high Velocity Airflow provides twice the air changes compare to ordinary Industrial Ovens.
Timer Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds
Paint Enamel Paint / Epoxy Coating / Powder Coated.
Power supply 230 Volts Single Phase 50Hz / 60Hz
415 Volts 3 Phase 50Hz / 60Hz
Heating Elements Low wattage Incoloy sheathed heating elements / SS Tubular
Insulation Ceramic Wool / Mineral Wool
Door Gasket Fibre Glass Rope (High Temp) / Silicon Gasket.
Heavy Duty Shelves / Trays Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven.
Exhaust Manual or Automatic Automatic forced exhaust system with fresh air inlet.
Manually adjustable damper with fresh air inlet.
Heating Media Electric / Gas / Diesel / Steam / Thermic OIL etc.


Temperature Control PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy.
The programming of PID can vary from 4 to 50 programmes.
Temperature Recorder Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder.
PLC With HMI PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI.
SCADA System High quality integration and controlling system from one point can be done with SCADA.
Door A. Door interlocking system will switch off the blower and the heating system if the oven doors are open
B. Doors on both ends
C. Vertical lift door
Fumes Outlet Forced exhaust blower
Windows and lights A. Viewing window
B. Interior lights and Access ports for calibration
C. Oven on switch- Illuminated
D. Heat on switch- Illuminated
Timer and Alarm A. 24/7 timer
B. Audible/visual alarm indicators
