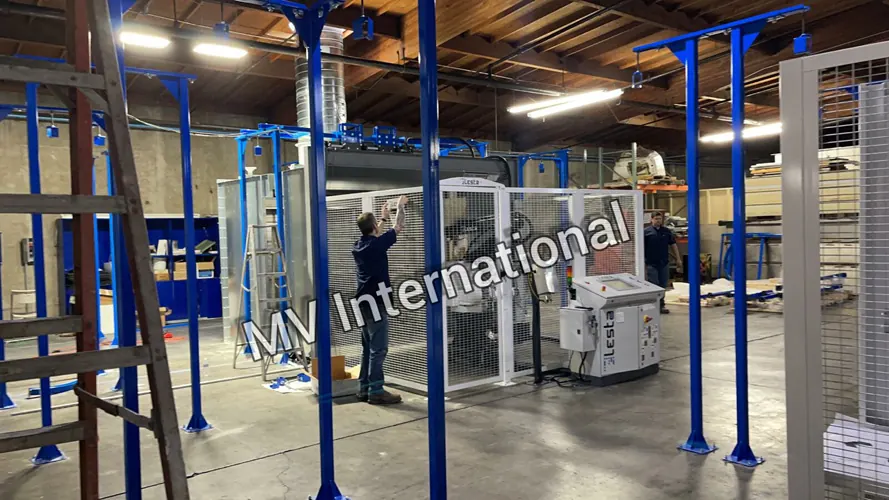

Powder Curing Oven

Powder Curing Oven: How the Range of Specifications and Temperatures Made it Popular!


MV International has unveiled a powder curing oven that is one of the best-selling ovens in the world. Hundreds of these ovens are being distributed all over the world.

Our powder curing oven is heated chambers that are in use for a plethora of industrial applications. These applications include drying, baking, curing and finishing several industrial products. Both small and large volume applications use our ovens utilizing a conveyor line and for various specifications and temperatures.

The success of our oven owes much to the detailed construction process besides our superb design. Our oven comes with a design that our engineers have perfected with years of experience.

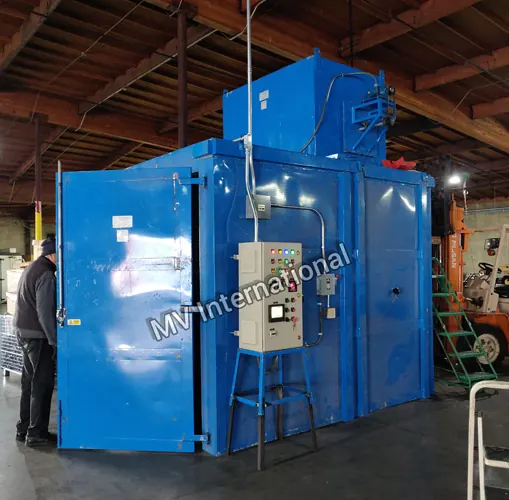

The powder curing oven that we're talking about can be custom-made to fit in any configuration and size as per customer demand. It follows a height of 2.2m and a width of 2.5m and is a standard industrial oven run by gas.


Features of Our Powder Cure Ovens

We use highly dense galvanized steel plates for building the roof and walls of our powder curing oven. There is 100-mm thick insulation of Rockwool. We ensure much lower running cost through our manufacturing process which is of high quality and advanced design. The internal duct system is worth a higher volume and we also have powerful centrifugal fans.

Before shipping, we test and build every oven and then it’s flat-packed for ease of transit and installation. Being a responsible powder curing oven manufacturer, we check the right blend of gas and air and proper heat distribution for eradicating the risks of cost or hot spots. It helps in assuring economical production as we check the inner mechanism of escapade. The availability of service contracts and the guarantee are important points of consideration.

Our experience as a powder curing oven manufacturer has helped us in placing insulated wires worth 8 mm thickness besides a steel-plate cover that enables trolleys to be utilized for transiting products within and outside the oven. We have ample opportunities for our clients to discuss their specifications with our reps before placing their orders with us.


SPECIFICATION :

Size of the working chamber As per client requirement.
Material of construction Mild Steel, Stainless Steel 304 / 316 or any.
Temperature Range Ambient to 1500C / 2500C / 4000C / 5000C.
Air circulation Vertical, Horizontal or Combination.
High Volume and high Velocity Airflow provides twice the air changes compare to ordinary Industrial Ovens.
Timer Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds
Paint Enamel Paint / Epoxy Coating / Powder Coated.
Power supply 230 Volts Single Phase 50Hz / 60Hz
415 Volts 3 Phase 50Hz / 60Hz
Heating Elements Low wattage Incoloy sheathed heating elements / SS Tubular
Insulation Ceramic Wool / Mineral Wool
Door Gasket Fibre Glass Rope (High Temp) / Silicon Gasket.
Heavy Duty Shelves / Trays Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven.
Exhaust Manual or Automatic Automatic forced exhaust system with fresh air inlet.
Manually adjustable damper with fresh air inlet.
Heating Media Electric / Gas / Diesel / Steam / Thermic OIL etc.

OPTIONAL FEATURES :

Temperature Control PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy.
The programming of PID can vary from 4 to 50 programmes.
Temperature Recorder Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder.
PLC With HMI PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI.
SCADA System High quality integration and controlling system from one point can be done with SCADA.
Door A. Door interlocking system will switch off the blower and the heating system if the oven doors are open
B. Doors on both ends
C. Vertical lift door
Fumes Outlet Forced exhaust blower
Windows and lights A. Viewing window
B. Interior lights and Access ports for calibration
C. Oven on switch- Illuminated
D. Heat on switch- Illuminated
Timer and Alarm A. 24/7 timer
B. Audible/visual alarm indicators
