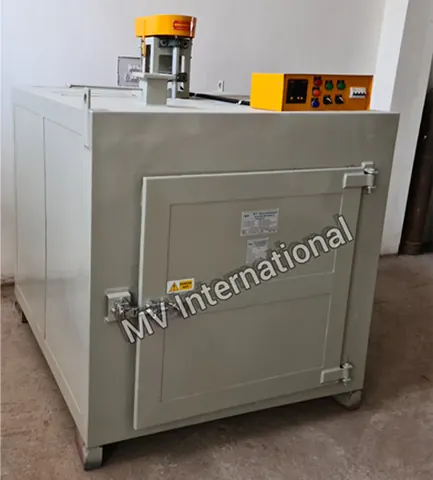

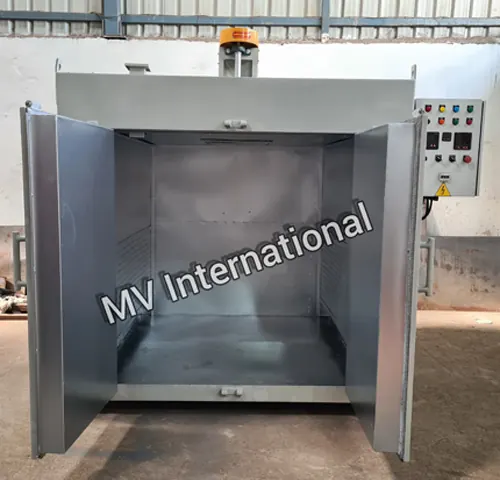

Core Drying Oven Manufacturer, Supplier & Exporter
A core drying oven removes moisture from cores so that they are strong and give defect-free results in the next process. It is used for foundry sand cores, paper cores, transformer cores and metal parts that must be completely dry.
MV International core drying ovens use high-power blowers to distribute heat evenly, with sophisticated controls so the operator can set the temperature in seconds. They are strong, long-lasting and easy to operate.
Key Features of Our Core Drying Oven
- High-power blowers for even heat distribution
- Moisture exhaust with fresh-air inlet
- Trolleys or racks for cores
- Temperature up to 300°C
- Quick-set digital controls
- Strong, long-lasting construction
Core Drying Oven Applications
- Foundry sand core drying
- Paper core drying
- Transformer core drying
- Metal component drying
- Mould and coating drying
- Ceramic core drying
How the Core Drying Oven Works
Cores are loaded and hot air is blown evenly across them. Moisture is driven out and exhausted, and the oven holds the drying temperature for the set time.
Core Drying Oven Technical Specifications
| Size of the working chamber | As per client requirement. |
|---|---|
| Material of construction | Mild Steel, Stainless Steel 304 / 316 or any. |
| Temperature Range | Ambient to 150°C / 250°C / 400°C / 500°C. |
| Air circulation | Vertical, Horizontal or Combination. High Volume and high Velocity Airflow provides twice the air changes compared to ordinary Industrial Ovens. |
| Timer | Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds |
| Paint | Enamel Paint / Epoxy Coating / Powder Coated. |
| Power supply | 230 Volts Single Phase 50Hz / 60Hz 415 Volts 3 Phase 50Hz / 60Hz |
| Heating Elements | Low wattage Incoloy sheathed heating elements / SS Tubular |
| Insulation | Ceramic Wool / Mineral Wool |
| Door Gasket | Fibreglass Rope (High Temp) / Silicone Gasket. |
| Heavy Duty Shelves / Trays | Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven. |
| Exhaust Manual or Automatic | Automatic forced exhaust system with fresh air inlet. Manually adjustable damper with fresh air inlet. |
| Heating Media | Electric / Gas / Diesel / Steam / Thermic OIL etc. |
Optional Features
| Temperature Control | PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy. The programming of PID can vary from 4 to 50 programmes. |
|---|---|
| Temperature Recorder | Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder. |
| PLC With HMI | PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI. |
| SCADA System | High quality integration and controlling system from one point can be done with SCADA. |
| Door | A. Door interlocking system will switch off the blower and the heating system if the oven doors are open B. Doors on both ends C. Vertical lift door |
| Fumes Outlet | Forced exhaust blower |
| Windows and lights | A. Viewing window B. Interior lights and Access ports for calibration C. Oven on switch- Illuminated D. Heat on switch- Illuminated |
| Timer and Alarm | A. 24/7 timer B. Audible/visual alarm indicators |
Core Drying Oven Manufacturer, Supplier & Exporter
Core Drying Oven Manufacturer in India
We manufacture the core drying oven at our factory in M.I.E. Bahadurgarh, Haryana, using CNC-cut sheet metal, mineral or ceramic wool insulation and reliable control gear. As an experienced core drying oven manufacturer, we run every oven at its working temperature (up to 300°C) before dispatch and share the test results with you.
Core Drying Oven Supplier
As a core drying oven supplier, we deliver across India, including Delhi NCR, Haryana, Punjab, Uttar Pradesh, Gujarat, Maharashtra, Tamil Nadu, Karnataka, Telangana and West Bengal. Typical buyers are foundries, paper tube makers, transformer manufacturers and engineering units. We handle site installation and commissioning, operator training, spares and after-sales service.
Core Drying Oven Exporter
As a core drying oven exporter, we have delivered heating equipment to more than 50 countries, including United Kingdom, Nepal, Nigeria, Egypt and Indonesia. Each export order includes voltage and frequency matching, CE-style safety interlocks on request, export-worthy packing, and remote or on-site commissioning support.
Why Buy from MV International?
- In-house design and manufacturing since 1989, ISO 9001:2015 certified
- Custom chamber sizes, temperatures up to 500°C and electric, gas, diesel or steam heating
- Uniform air flow with high-volume blowers and PID/PLC temperature control
- Every oven is trial-run and tested before dispatch
- Installation, training, spares and after-sales service across India and abroad
Core Drying Oven FAQs
What temperature is used to dry cores?
It depends on the core material. Typically 100-250°C.
Is this the same as a foundry core oven?
For foundry applications see our foundry core drying oven, which is designed specifically for sand cores.
Can it dry paper cores?
Yes. See also our paper core drying oven.
How much does a Core Drying Oven cost?
A core drying oven is built to order, so the cost depends on the working size, temperature range, heating method and options such as PLC control or a temperature recorder. Send us your requirement on the enquiry page or call +91-9718290000 for a quick, no-obligation quotation.
Can you supply the Core Drying Oven to buyers abroad?
Yes. Along with supplying all over India, we export the core drying oven to the Middle East, Africa, Asia, Europe and the Americas. Ovens are built for your local power supply and shipped with complete documentation and commissioning support.
Need a core drying oven? Send your part size, process details and production rate to sales@industrialoven.com or call +91 97182 90000. Our engineers will suggest the right model and send a quotation.
