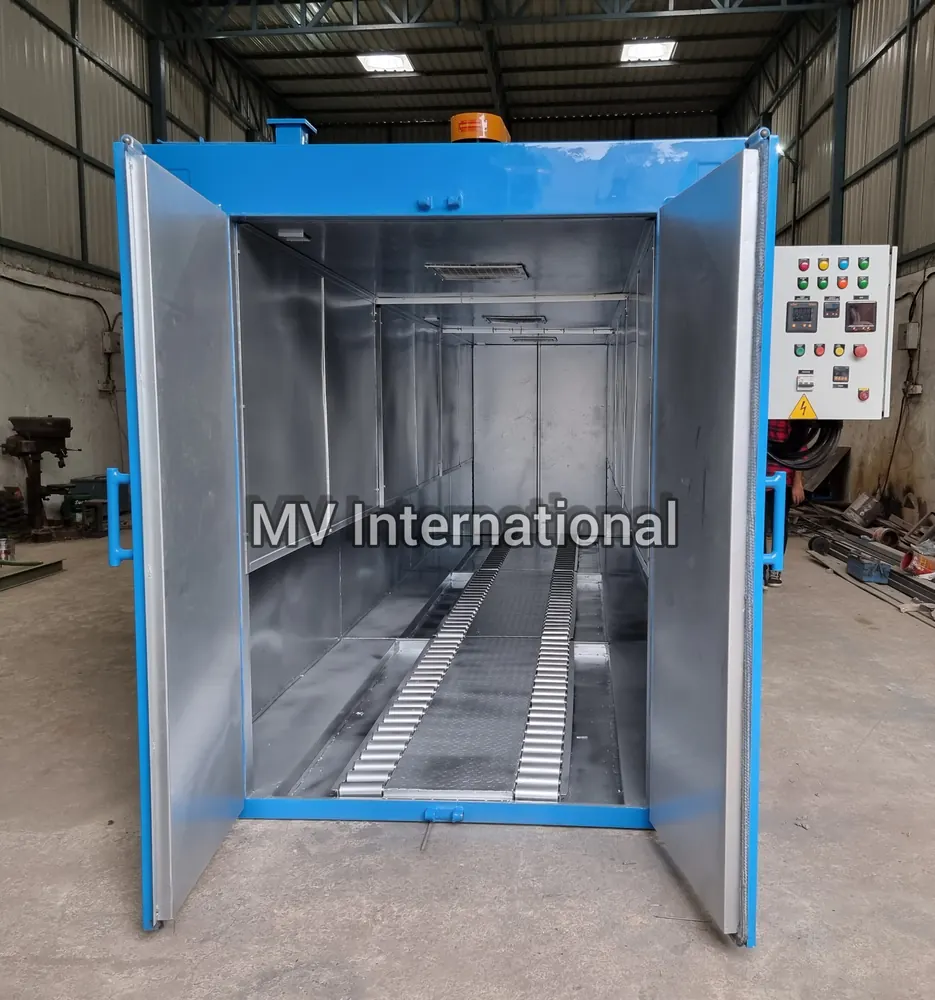

Plastic Annealing Oven Manufacturer, Supplier & Exporter
A plastic annealing oven heats moulded or machined plastic parts to just below their glass-transition or softening temperature, holds them there, and then cools them slowly. This relieves internal stresses caused by moulding, extrusion or machining, which helps prevent later cracking, warping and dimensional change.
Because plastics have narrow temperature windows, MV International plastic annealing ovens are built for very even temperature and accurate control. Programmable ramp-and-soak controllers handle the heating and controlled-cooling profile that each polymer needs.
Key Features of Our Plastic Annealing Oven
- Programmable ramp / soak / controlled-cooling profiles
- Very uniform air distribution to avoid local over-heating
- Temperature range typically 50-250°C with ±2-3°C uniformity
- Clean SS inner chamber with perforated SS trays
- Over-temperature safety cut-out to protect parts
- Optional data logger for process traceability
Plastic Annealing Oven Applications
- Annealing nylon, acetal (POM), PEEK and PTFE parts
- Stress relieving polycarbonate and acrylic components
- Annealing machined plastic bearings and bushes
- Dimensional stabilisation of precision plastic parts
- Post-moulding conditioning of engineering plastics
- Annealing extruded rods, tubes and sheets
- Heat treatment of plastic gears
- Medical and electrical plastic components
How the Plastic Annealing Oven Works

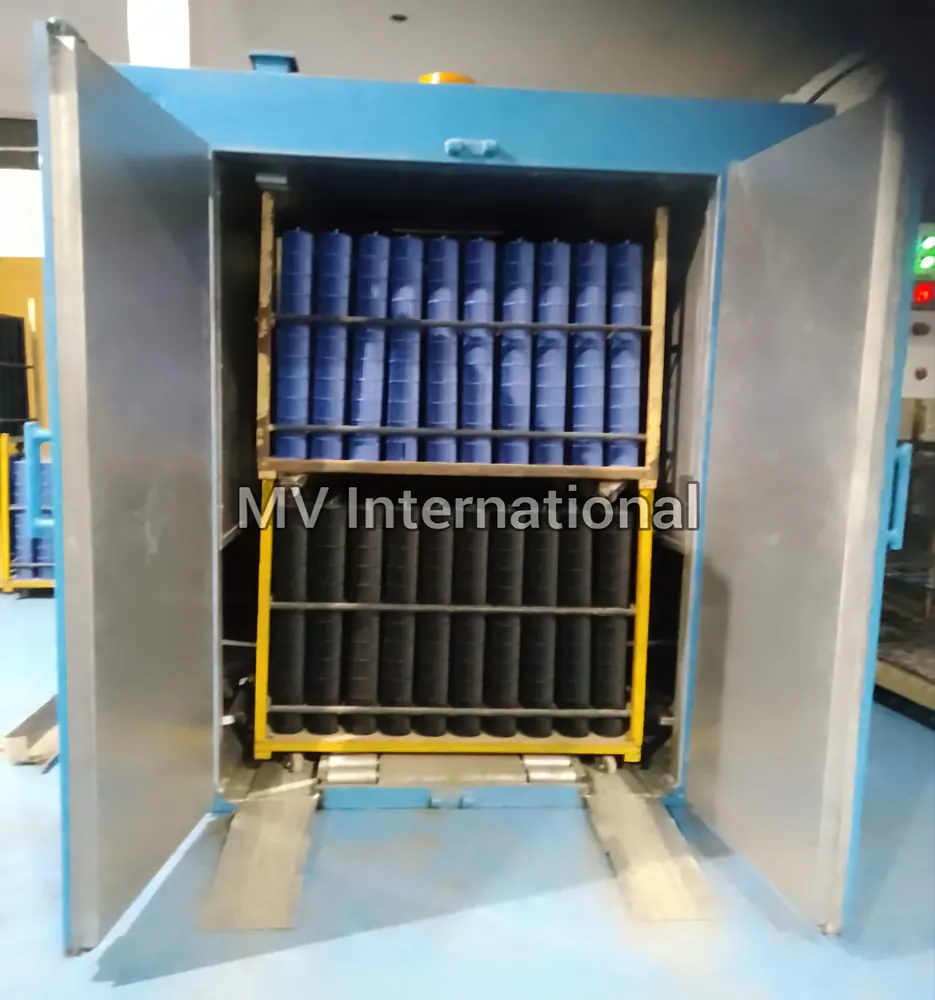

Parts are loaded on trays and the controller follows a programmed cycle. It ramps up at a set rate, soaks at the annealing temperature for the time needed for the wall thickness, then ramps down slowly. Re-circulated air keeps every part at the same temperature, so stresses relax evenly without distortion.
Plastic Annealing Oven Technical Specifications
| Size of the working chamber | As per client requirement. |
|---|---|
| Material of construction | Mild Steel, Stainless Steel 304 / 316 or any. |
| Temperature Range | Ambient to 150°C / 250°C / 400°C / 500°C. |
| Air circulation | Vertical, Horizontal or Combination. High Volume and high Velocity Airflow provides twice the air changes compared to ordinary Industrial Ovens. |
| Timer | Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds |
| Paint | Enamel Paint / Epoxy Coating / Powder Coated. |
| Power supply | 230 Volts Single Phase 50Hz / 60Hz 415 Volts 3 Phase 50Hz / 60Hz |
| Heating Elements | Low wattage Incoloy sheathed heating elements / SS Tubular |
| Insulation | Ceramic Wool / Mineral Wool |
| Door Gasket | Fibreglass Rope (High Temp) / Silicone Gasket. |
| Heavy Duty Shelves / Trays | Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven. |
| Exhaust Manual or Automatic | Automatic forced exhaust system with fresh air inlet. Manually adjustable damper with fresh air inlet. |
| Heating Media | Electric / Gas / Diesel / Steam / Thermic OIL etc. |
Optional Features
| Temperature Control | PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy. The programming of PID can vary from 4 to 50 programmes. |
|---|---|
| Temperature Recorder | Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder. |
| PLC With HMI | PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI. |
| SCADA System | High quality integration and controlling system from one point can be done with SCADA. |
| Door | A. Door interlocking system will switch off the blower and the heating system if the oven doors are open B. Doors on both ends C. Vertical lift door |
| Fumes Outlet | Forced exhaust blower |
| Windows and lights | A. Viewing window B. Interior lights and Access ports for calibration C. Oven on switch- Illuminated D. Heat on switch- Illuminated |
| Timer and Alarm | A. 24/7 timer B. Audible/visual alarm indicators |
Plastic Annealing Oven Manufacturer, Supplier & Exporter
Plastic Annealing Oven Manufacturer in India
MV International is an ISO 9001:2015 certified plastic annealing oven manufacturer with more than 35 years of experience in industrial heating. Fabrication, insulation, electrical panel building and testing are done in-house at Bahadurgarh, Haryana, which lets us control quality and delivery time. Each plastic annealing oven is built to your load, process temperature (up to 500°C) and floor space rather than picked from a catalogue.
Plastic Annealing Oven Supplier
Looking for a reliable plastic annealing oven supplier? We have supplied ovens to plastic moulders, engineering plastic machinists and component manufacturers and to OEMs and job shops in every major industrial state of India. You get one point of contact for design, manufacturing, delivery, installation and service, with heaters, blowers and controllers available from stock.
Plastic Annealing Oven Exporter
MV International is also an established plastic annealing oven exporter. We ship to the Middle East, Africa, South and South-East Asia, Europe and the Americas, including Saudi Arabia, Oman, United Kingdom, Nepal and Nigeria. Export ovens are built for the local supply voltage and frequency (50 Hz or 60 Hz), packed in seaworthy wooden crates and sent with complete documentation.
Why Buy from MV International?
- In-house design and manufacturing since 1989, ISO 9001:2015 certified
- Custom chamber sizes, temperatures up to 500°C and electric, gas, diesel or steam heating
- Uniform air flow with high-volume blowers and PID/PLC temperature control
- Every oven is trial-run and tested before dispatch
- Installation, training, spares and after-sales service across India and abroad
Plastic Annealing Oven FAQs
Why do plastic parts need annealing?
Moulding and machining leave internal stresses in plastic parts. Over time these stresses can cause cracking, warping or size changes, especially when the part is exposed to chemicals or heat. Annealing relieves them.
What temperature is used to anneal plastics?
It depends on the polymer. For example, nylon is often annealed around 150°C and polycarbonate around 120-130°C. Always follow the resin supplier's guidance. Our controllers can be programmed for any profile.
Why is controlled cooling important?
Fast cooling can create new stresses. The oven ramps down slowly at a programmed rate so that the part cools evenly.
How much does a Plastic Annealing Oven cost?
A plastic annealing oven is built to order, so the cost depends on the working size, temperature range, heating method and options such as PLC control or a temperature recorder. Send us your requirement on the enquiry page or call +91-9718290000 for a quick, no-obligation quotation.
Can you supply the Plastic Annealing Oven to buyers abroad?
Yes. Along with supplying all over India, we export the plastic annealing oven to the Middle East, Africa, Asia, Europe and the Americas. Ovens are built for your local power supply and shipped with complete documentation and commissioning support.
Need a plastic annealing oven? Send your part size, process details and production rate to sales@industrialoven.com or call +91 97182 90000. Our engineers will suggest the right model and send a quotation.
