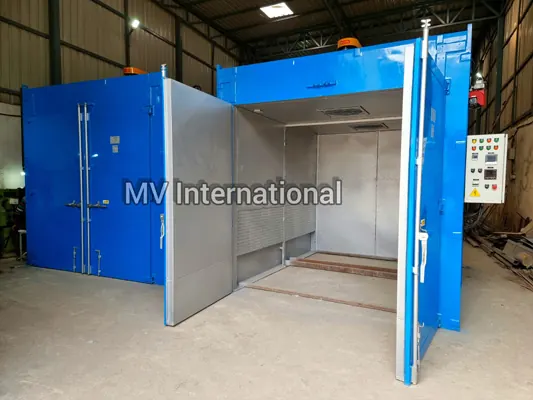

Paint Baking Oven Manufacturer, Supplier & Exporter
A paint baking oven dries and bakes painted components to give a smooth, hard and durable finish. It is used in painting, powder coating and finishing industries for parts of every size, from small brackets to large fabricated assemblies.
MV International paint baking ovens are energy-efficient, modular designs that can be relocated if your layout changes. Ceramic-fibre inner lining minimises heat loss. Electric, hot-air generator and gas heating are available, and every oven is specified for the customer's process.
Key Features of Our Paint Baking Oven
- Modular design that can be shifted and expanded
- Ceramic-fibre lining to minimise heat loss
- Electric, gas or hot-air generator heating
- Uniform air flow and solvent exhaust
- Batch and conveyor configurations
- Complete package with booth and handling on request
Paint Baking Oven Applications
- Automotive refinish and components
- Fabrication and structural parts
- Furniture and fixtures
- Machinery and equipment
- Electrical cabinets
- Wooden and plastic parts (low temperature)
How the Paint Baking Oven Works
Painted parts are loaded and the oven ramps to the baking temperature. Re-circulated hot air bakes the coating while exhaust removes solvent vapours. The timer controls the bake period, after which parts cool before handling.
Paint Baking Oven Technical Specifications
| Size of the working chamber | As per client requirement. |
|---|---|
| Material of construction | Mild Steel, Stainless Steel 304 / 316 or any. |
| Temperature Range | Ambient to 150°C / 250°C / 400°C / 500°C. |
| Air circulation | Vertical, Horizontal or Combination. High Volume and high Velocity Airflow provides twice the air changes compared to ordinary Industrial Ovens. |
| Timer | Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds |
| Paint | Enamel Paint / Epoxy Coating / Powder Coated. |
| Power supply | 230 Volts Single Phase 50Hz / 60Hz 415 Volts 3 Phase 50Hz / 60Hz |
| Heating Elements | Low wattage Incoloy sheathed heating elements / SS Tubular |
| Insulation | Ceramic Wool / Mineral Wool |
| Door Gasket | Fibreglass Rope (High Temp) / Silicone Gasket. |
| Heavy Duty Shelves / Trays | Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven. |
| Exhaust Manual or Automatic | Automatic forced exhaust system with fresh air inlet. Manually adjustable damper with fresh air inlet. |
| Heating Media | Electric / Gas / Diesel / Steam / Thermic OIL etc. |
Optional Features
| Temperature Control | PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy. The programming of PID can vary from 4 to 50 programmes. |
|---|---|
| Temperature Recorder | Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder. |
| PLC With HMI | PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI. |
| SCADA System | High quality integration and controlling system from one point can be done with SCADA. |
| Door | A. Door interlocking system will switch off the blower and the heating system if the oven doors are open B. Doors on both ends C. Vertical lift door |
| Fumes Outlet | Forced exhaust blower |
| Windows and lights | A. Viewing window B. Interior lights and Access ports for calibration C. Oven on switch- Illuminated D. Heat on switch- Illuminated |
| Timer and Alarm | A. 24/7 timer B. Audible/visual alarm indicators |
Paint Baking Oven Manufacturer, Supplier & Exporter
Paint Baking Oven Manufacturer in India
We manufacture the paint baking oven at our factory in M.I.E. Bahadurgarh, Haryana, using CNC-cut sheet metal, mineral or ceramic wool insulation and reliable control gear. As an experienced paint baking oven manufacturer, we run every oven at its working temperature (up to 250°C) before dispatch and share the test results with you.
Paint Baking Oven Supplier
As a paint baking oven supplier, we deliver across India, including Delhi NCR, Haryana, Punjab, Uttar Pradesh, Gujarat, Maharashtra, Tamil Nadu, Karnataka, Telangana and West Bengal. Typical buyers are finishing, automotive, fabrication and furniture industries. We handle site installation and commissioning, operator training, spares and after-sales service.
Paint Baking Oven Exporter
As a paint baking oven exporter, we have delivered heating equipment to more than 50 countries, including Qatar, United States, Bangladesh, Sri Lanka and Kenya. Each export order includes voltage and frequency matching, CE-style safety interlocks on request, export-worthy packing, and remote or on-site commissioning support.
Why Buy from MV International?
- In-house design and manufacturing since 1989, ISO 9001:2015 certified
- Custom chamber sizes, temperatures up to 500°C and electric, gas, diesel or steam heating
- Uniform air flow with high-volume blowers and PID/PLC temperature control
- Every oven is trial-run and tested before dispatch
- Installation, training, spares and after-sales service across India and abroad
Paint Baking Oven FAQs
How is a paint baking oven different from a paint booth?
A booth is for spraying with clean air and overspray extraction. The baking oven cures the paint afterwards. Some combined spray-bake booths do both. See our paint booth.
Can the oven be relocated later?
Yes. Modular panel construction allows dismantling and re-erection.
What heating is most economical?
It depends on local fuel prices. Gas or diesel is often cheaper for large ovens, and electric for smaller ones.
What is the price of a Paint Baking Oven?
The price of a paint baking oven depends on chamber size, maximum temperature, heating media (electric, gas, diesel or steam), material of construction and the control system. Share your load details, process temperature and cycle time, and MV International will send a detailed quotation, usually within 24 hours.
Can you supply the Paint Baking Oven to buyers abroad?
Yes. Along with supplying all over India, we export the paint baking oven to the Middle East, Africa, Asia, Europe and the Americas. Ovens are built for your local power supply and shipped with complete documentation and commissioning support.
Need a paint baking oven? Send your part size, process details and production rate to sales@industrialoven.com or call +91 97182 90000. Our engineers will suggest the right model and send a quotation.
