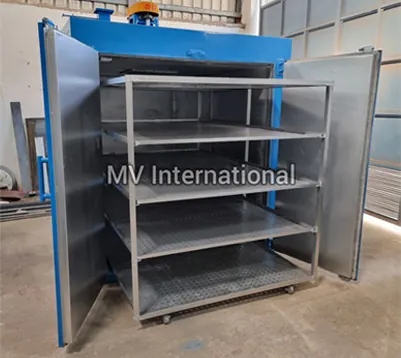

Brake Shoe Curing Oven Manufacturer, Supplier & Exporter
A brake shoe curing oven cures the adhesive that bonds friction linings to brake shoes, and post-cures the lining material. Uniform heat and accurate time are essential, so that every shoe develops full bond strength and stable friction properties.
MV International brake shoe curing ovens use clamping fixtures, uniform air flow and programmable controls for strong, durable results at low cost per piece. Batch and continuous designs are available.
Key Features of Our Brake Shoe Curing Oven
- Uniform temperature across all clamped shoes
- Fixtures and racks for clamped brake shoes
- Programmable bonding and post-cure profiles
- Exhaust for resin and adhesive fumes
- Batch or continuous conveyor versions
- Energy-efficient insulated construction
Brake Shoe Curing Oven Applications
- Bonding linings to drum brake shoes
- Post-curing brake linings
- Commercial vehicle brake shoes
- Two-wheeler and car brake shoes
- Railway and industrial brakes
- Clutch plate bonding
How the Brake Shoe Curing Oven Works

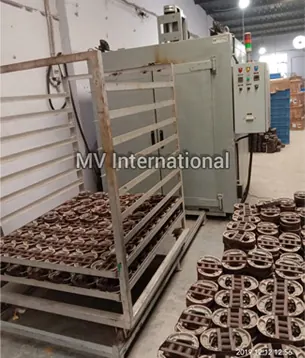

Shoes with adhesive-coated linings are clamped in fixtures and loaded on racks. The oven heats them to the bonding temperature and holds it, so that the adhesive cures under pressure. A post-cure step can follow, and controlled cooling completes the cycle.
Brake Shoe Curing Oven Technical Specifications
| Size of the working chamber | As per client requirement. |
|---|---|
| Material of construction | Mild Steel, Stainless Steel 304 / 316 or any. |
| Temperature Range | Ambient to 150°C / 250°C / 400°C / 500°C. |
| Air circulation | Vertical, Horizontal or Combination. High Volume and high Velocity Airflow provides twice the air changes compared to ordinary Industrial Ovens. |
| Timer | Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds |
| Paint | Enamel Paint / Epoxy Coating / Powder Coated. |
| Power supply | 230 Volts Single Phase 50Hz / 60Hz 415 Volts 3 Phase 50Hz / 60Hz |
| Heating Elements | Low wattage Incoloy sheathed heating elements / SS Tubular |
| Insulation | Ceramic Wool / Mineral Wool |
| Door Gasket | Fibreglass Rope (High Temp) / Silicone Gasket. |
| Heavy Duty Shelves / Trays | Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven. |
| Exhaust Manual or Automatic | Automatic forced exhaust system with fresh air inlet. Manually adjustable damper with fresh air inlet. |
| Heating Media | Electric / Gas / Diesel / Steam / Thermic OIL etc. |
Optional Features
| Temperature Control | PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy. The programming of PID can vary from 4 to 50 programmes. |
|---|---|
| Temperature Recorder | Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder. |
| PLC With HMI | PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI. |
| SCADA System | High quality integration and controlling system from one point can be done with SCADA. |
| Door | A. Door interlocking system will switch off the blower and the heating system if the oven doors are open B. Doors on both ends C. Vertical lift door |
| Fumes Outlet | Forced exhaust blower |
| Windows and lights | A. Viewing window B. Interior lights and Access ports for calibration C. Oven on switch- Illuminated D. Heat on switch- Illuminated |
| Timer and Alarm | A. 24/7 timer B. Audible/visual alarm indicators |
Brake Shoe Curing Oven Manufacturer, Supplier & Exporter
Brake Shoe Curing Oven Manufacturer in India
As a brake shoe curing oven manufacturer in India since 1989, MV International designs and builds every unit at our own works in Bahadurgarh, Haryana, close to Delhi NCR. Our engineers size the chamber, heater load and air-flow pattern to your actual load, so the oven reaches 300°C evenly and holds it within a tight band. Every brake shoe curing oven is assembled, wired and trial-run at our plant before dispatch.
Brake Shoe Curing Oven Supplier
MV International supplies the brake shoe curing oven to brake and friction material manufacturers all over India. Industrial clusters we serve regularly include Gurugram, Faridabad, Noida, Ludhiana, Ahmedabad, Vadodara, Pune, Chennai, Bengaluru, Hyderabad and Kolkata. With every oven we provide a manual, wiring diagram, spares list and quick service support.
Brake Shoe Curing Oven Exporter
Overseas buyers source the brake shoe curing oven from us because we combine Indian manufacturing costs with export-quality construction. Regular destinations include Oman, United Kingdom, Nepal, Nigeria and Egypt. We build to your local power supply, quote FOB or CIF, and supply documentation, spares and remote support.
Why Buy from MV International?
- In-house design and manufacturing since 1989, ISO 9001:2015 certified
- Custom chamber sizes, temperatures up to 500°C and electric, gas, diesel or steam heating
- Uniform air flow with high-volume blowers and PID/PLC temperature control
- Every oven is trial-run and tested before dispatch
- Installation, training, spares and after-sales service across India and abroad
Brake Shoe Curing Oven FAQs
What temperature is used to bond brake shoes?
Bonding adhesives typically cure at about 180-230°C. Follow the adhesive supplier's specification.
Can the same oven cure brake pads?
Yes, with suitable racks. See also our brake pad curing oven.
Do you supply the clamping fixtures?
Yes. Fixtures can be designed and supplied with the oven.
How much does a Brake Shoe Curing Oven cost?
A brake shoe curing oven is built to order, so the cost depends on the working size, temperature range, heating method and options such as PLC control or a temperature recorder. Send us your requirement on the enquiry page or call +91-9718290000 for a quick, no-obligation quotation.
Do you export the Brake Shoe Curing Oven outside India?
Yes. MV International is an experienced brake shoe curing oven exporter. We ship to the UAE, Saudi Arabia, Qatar, Oman, Africa, South-East Asia, Europe and the Americas, with voltage and frequency matched to your country and seaworthy export packing.
Need a brake shoe curing oven? Send your part size, process details and production rate to sales@industrialoven.com or call +91 97182 90000. Our engineers will suggest the right model and send a quotation.
