Trolley Type Oven Manufacturer, Supplier & Exporter

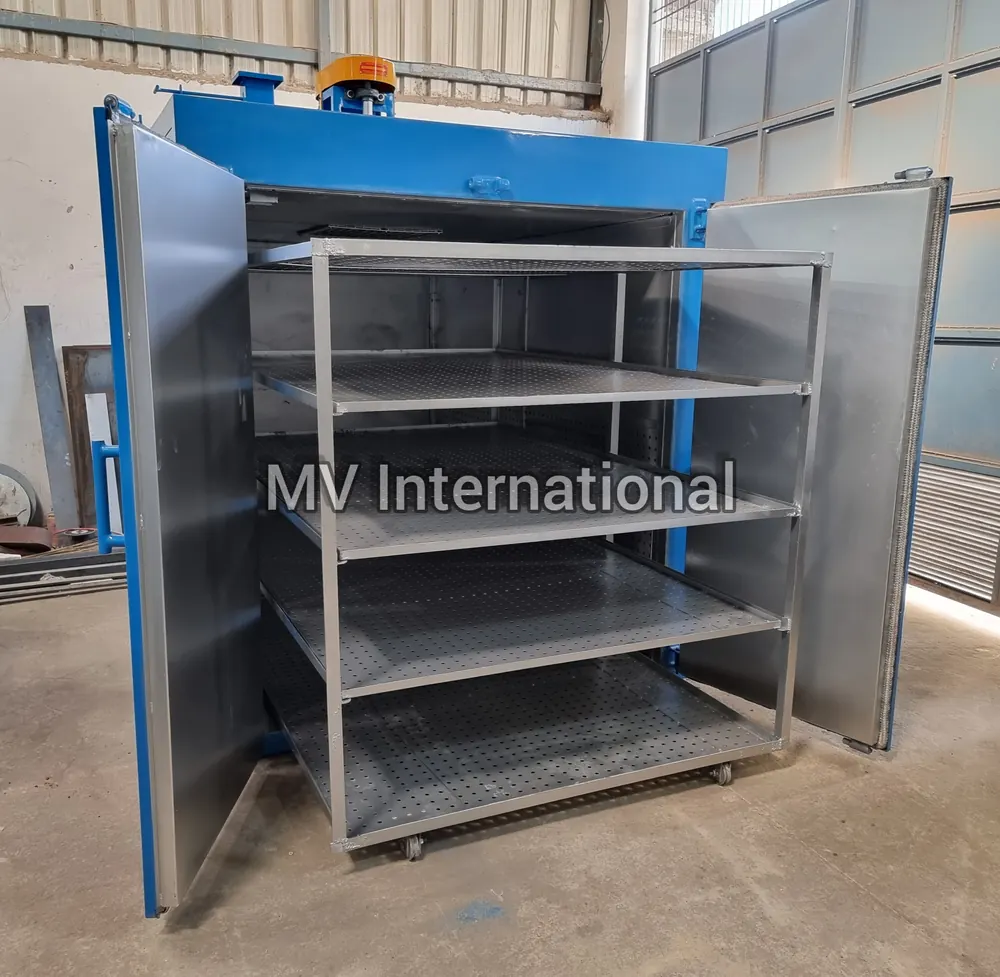

A trolley type oven is a batch oven in which the load is placed on a wheeled trolley and rolled into the chamber on rails or floor tracks. While one trolley is in the oven, the next can be loaded outside, so the oven spends less time waiting for loading and output rises.
MV International builds trolley type ovens for one, two or more trolleys, with side-hinged or vertical-lift doors and rails flush with the floor. The trolleys, shelves and fixtures are designed for your part weight, and the air flow is arranged to pass evenly through the loaded trolley.
Key Features of Our Trolley Type Oven
- Single or multi-trolley designs with heavy-duty castors and rails
- Rail system flush with the factory floor for easy roll-in
- Uniform horizontal air flow through the trolley shelves
- Temperatures up to 500°C with mineral or ceramic wool insulation
- Door interlock that stops heaters and blower when the door is opened
- Spare trolleys so loading continues while a batch is heating
Trolley Type Oven Applications
- Baking and curing of painted and coated parts
- Drying of motor stators and windings
- Preheating of large castings and dies
- Composite and adhesive curing
- Stress relieving of fabricated assemblies
- Drying of chemicals and powders on trays
- Ageing of aluminium components
- Food and pharma tray drying
How the Trolley Type Oven Works
The loaded trolley is pushed into the oven along guide rails, and the door is closed and latched. Heated air from the blower plenum flows across the trolley shelves and returns through the heater. When the cycle ends, the trolley is pulled out and a pre-loaded trolley is pushed in straight away.
Trolley Type Oven Technical Specifications
| Size of the working chamber | As per client requirement. |
|---|---|
| Material of construction | Mild Steel, Stainless Steel 304 / 316 or any. |
| Temperature Range | Ambient to 150°C / 250°C / 400°C / 500°C. |
| Air circulation | Vertical, Horizontal or Combination. High Volume and high Velocity Airflow provides twice the air changes compared to ordinary Industrial Ovens. |
| Timer | Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds |
| Paint | Enamel Paint / Epoxy Coating / Powder Coated. |
| Power supply | 230 Volts Single Phase 50Hz / 60Hz 415 Volts 3 Phase 50Hz / 60Hz |
| Heating Elements | Low wattage Incoloy sheathed heating elements / SS Tubular |
| Insulation | Ceramic Wool / Mineral Wool |
| Door Gasket | Fibreglass Rope (High Temp) / Silicone Gasket. |
| Heavy Duty Shelves / Trays | Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven. |
| Exhaust Manual or Automatic | Automatic forced exhaust system with fresh air inlet. Manually adjustable damper with fresh air inlet. |
| Heating Media | Electric / Gas / Diesel / Steam / Thermic OIL etc. |
Optional Features
| Temperature Control | PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy. The programming of PID can vary from 4 to 50 programmes. |
|---|---|
| Temperature Recorder | Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder. |
| PLC With HMI | PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI. |
| SCADA System | High quality integration and controlling system from one point can be done with SCADA. |
| Door | A. Door interlocking system will switch off the blower and the heating system if the oven doors are open B. Doors on both ends C. Vertical lift door |
| Fumes Outlet | Forced exhaust blower |
| Windows and lights | A. Viewing window B. Interior lights and Access ports for calibration C. Oven on switch- Illuminated D. Heat on switch- Illuminated |
| Timer and Alarm | A. 24/7 timer B. Audible/visual alarm indicators |
Trolley Type Oven Manufacturer, Supplier & Exporter
Trolley Type Oven Manufacturer in India
We manufacture the trolley type oven at our factory in M.I.E. Bahadurgarh, Haryana, using CNC-cut sheet metal, mineral or ceramic wool insulation and reliable control gear. As an experienced trolley type oven manufacturer, we run every oven at its working temperature (up to 500°C) before dispatch and share the test results with you.
Trolley Type Oven Supplier
As a trolley type oven supplier, we deliver across India, including Delhi NCR, Haryana, Punjab, Uttar Pradesh, Gujarat, Maharashtra, Tamil Nadu, Karnataka, Telangana and West Bengal. Typical buyers are engineering, motor, paint, composite and process industries. We handle site installation and commissioning, operator training, spares and after-sales service.
Trolley Type Oven Exporter
As a trolley type oven exporter, we have delivered heating equipment to more than 50 countries, including United Kingdom, Nepal, Nigeria, Egypt and Indonesia. Each export order includes voltage and frequency matching, CE-style safety interlocks on request, export-worthy packing, and remote or on-site commissioning support.
Why Buy from MV International?
- In-house design and manufacturing since 1989, ISO 9001:2015 certified
- Custom chamber sizes, temperatures up to 500°C and electric, gas, diesel or steam heating
- Uniform air flow with high-volume blowers and PID/PLC temperature control
- Every oven is trial-run and tested before dispatch
- Installation, training, spares and after-sales service across India and abroad
Trolley Type Oven FAQs
What is the main benefit of a trolley type oven?
Faster loading and unloading. Operators prepare the next trolley outside while one batch is heating, so the oven idles less and output per shift is higher.
What load can a trolley carry?
We design trolleys from a few hundred kilograms to several tonnes, with castors, shelves and fixtures selected for the load.
Can the trolley oven have doors on both ends?
Yes. Pass-through designs with doors on both ends let you load from one side and unload on the other, which suits flow-line production.
How much does a Trolley Type Oven cost?
A trolley type oven is built to order, so the cost depends on the working size, temperature range, heating method and options such as PLC control or a temperature recorder. Send us your requirement on the enquiry page or call +91-9718290000 for a quick, no-obligation quotation.
Do you export the Trolley Type Oven outside India?
Yes. MV International is an experienced trolley type oven exporter. We ship to the UAE, Saudi Arabia, Qatar, Oman, Africa, South-East Asia, Europe and the Americas, with voltage and frequency matched to your country and seaworthy export packing.
Need a trolley type oven? Send your part size, process details and production rate to sales@industrialoven.com or call +91 97182 90000. Our engineers will suggest the right model and send a quotation.
