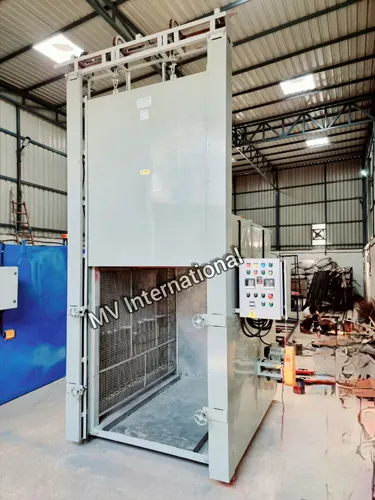

Drying Oven

Drying Oven – Removes Moisture Smoothly and Evenly From Raw Materials


MV International offers the latest model in Drying Oven through which precision dehydration can be done in the shortest possible time. When a large volume of items have to be heat treated at extreme temperature so that they have a longer shelf life, our drying oven is the best choice. It comes with the most sophisticated controls so that drying can be carried out evenly and thoroughly to produce precise output time and again.


Why Opt For Our Hi-Tech Drying Oven?

Drying oven is needed to remove any trace of moisture from various types of materials so that their existing physical properties or functionality increase. Through the drying process, they get coverted into another material else gain a more hardened surface that makes them tough and enduring.

The key feature of our drying oven is its external temperature settings through which the best drying results can be achieved. The only requirement in that the raw material to be dried must have properties that enable it to be heat treated and dried. With our modern once you can do exactly the kind of heat treating needed to get quality drying results in the shortest possible time. Make use of our drying oven for activities such as sterilization, temperature testing and incubation.

SPECIFICATION :

Size of the working chamber As per client requirement.
Material of construction Mild Steel, Stainless Steel 304 / 316 or any.
Temperature Range Ambient to 1500C / 2500C / 4000C / 5000C.
Air circulation Vertical, Horizontal or Combination.
High Volume and high Velocity Airflow provides twice the air changes compare to ordinary Industrial Ovens.
Timer Digital Pre-Settable with range up to 0 to 999 Minutes / Seconds
Paint Enamel Paint / Epoxy Coating / Powder Coated.
Power supply 230 Volts Single Phase 50Hz / 60Hz
415 Volts 3 Phase 50Hz / 60Hz
Heating Elements Low wattage Incoloy sheathed heating elements / SS Tubular
Insulation Ceramic Wool / Mineral Wool
Door Gasket Fibre Glass Rope (High Temp) / Silicon Gasket.
Heavy Duty Shelves / Trays Made out of angles with wire knitted mesh or perforated sheet suitable for oven internal size will be provided along with the oven.
Exhaust Manual or Automatic Automatic forced exhaust system with fresh air inlet.
Manually adjustable damper with fresh air inlet.
Heating Media Electric / Gas / Diesel / Steam / Thermic OIL etc.

OPTIONAL FEATURES :

Temperature Control PID with or without Profile Setting (Temp Up and Down) can be provided with SSR/ SCR for high accuracy.
The programming of PID can vary from 4 to 50 programmes.
Temperature Recorder Microprocessor chip-based paper less, Multi-Stage Temp. Indicator cum Recorder.
PLC With HMI PLC can be provided for automation and integration of whole system, data feeding, process display, and fault indication can be seen in HMI.
SCADA System High quality integration and controlling system from one point can be done with SCADA.
Door A. Door interlocking system will switch off the blower and the heating system if the oven doors are open
B. Doors on both ends

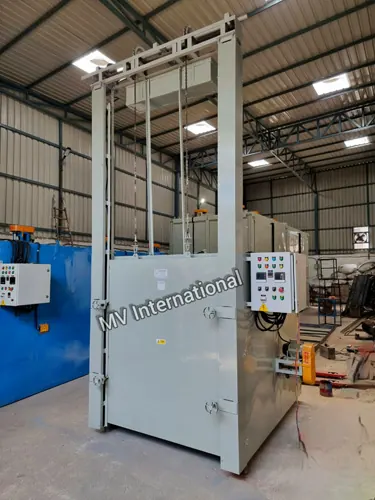

C. Vertical lift door
Fumes Outlet Forced exhaust blower
Windows and lights A. Viewing window
B. Interior lights and Access ports for calibration
C. Oven on switch- Illuminated
D. Heat on switch- Illuminated
Timer and Alarm A. 24/7 timer
B. Audible/visual alarm indicators
